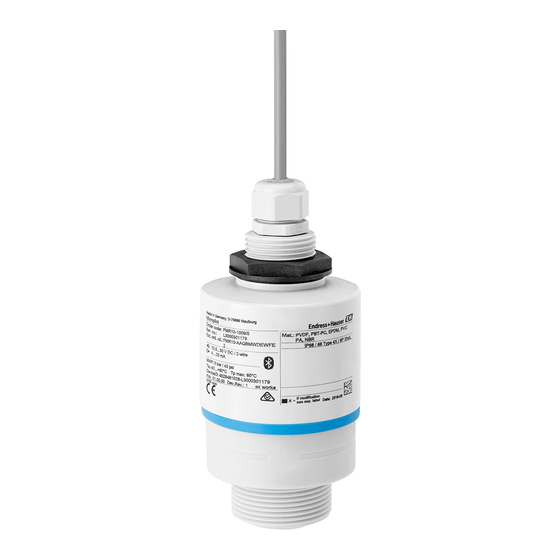

Endress+Hauser Micropilot FMR10 Operating Instructions Manual
Free space radar
Hide thumbs
Also See for Micropilot FMR10:
- Operating instructions manual (60 pages) ,
- Technical information (44 pages) ,
- Brief operating instructions (28 pages)
Related Manuals for Endress+Hauser Micropilot FMR10
Summary of Contents for Endress+Hauser Micropilot FMR10
-

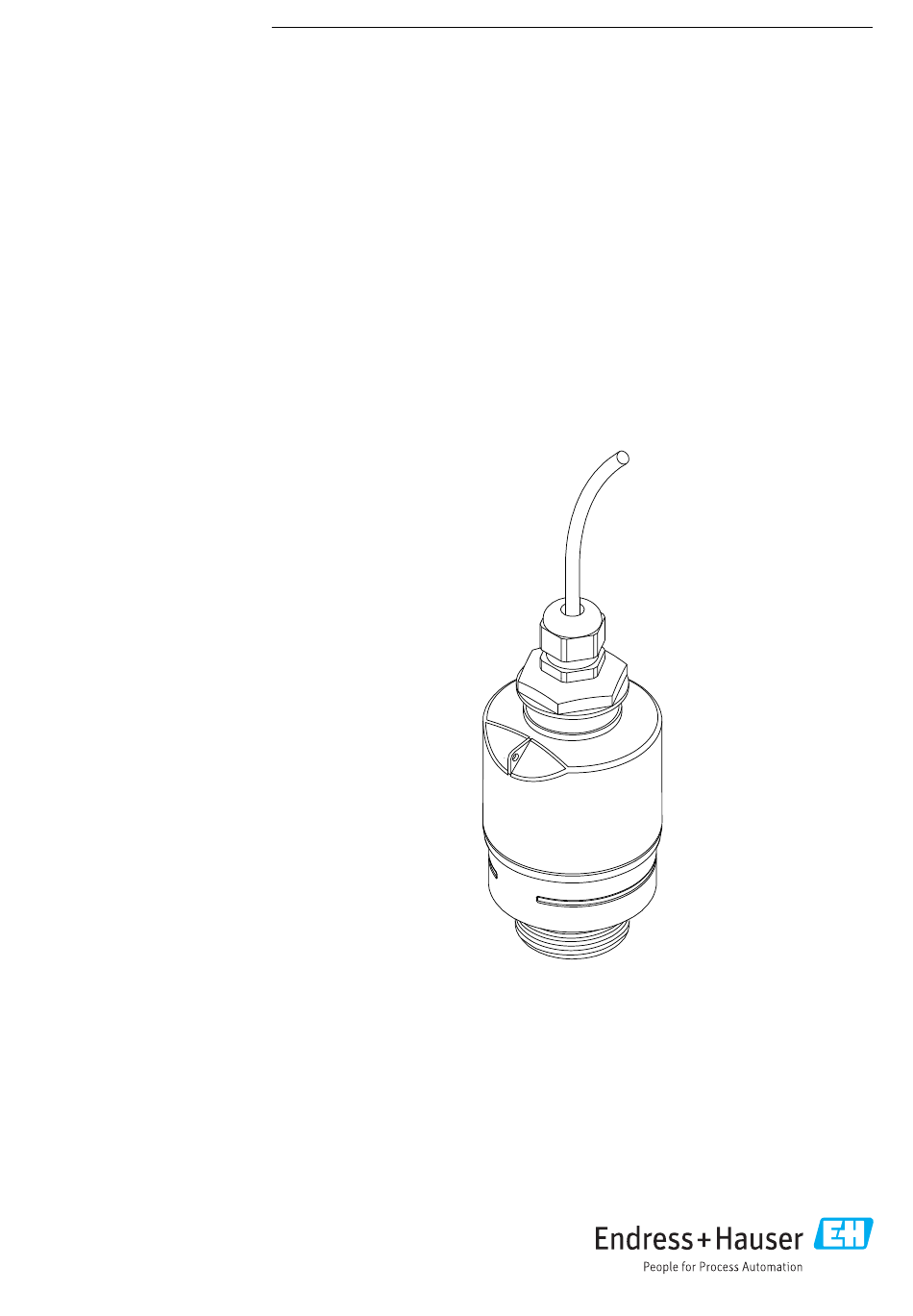

Page 1: Administration
Products Solutions Services BA01577F/00/EN/02.16 71331355 2020-03-30 01.00.zz (Device firmware) Operating Instructions Micropilot FMR10 Free space radar... -
Page 2: Administration
Micropilot FMR10 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser... -
Page 3: Table Of Contents
General errors ......26 3.1.1 Micropilot FMR10 ....10 Error - SmartBlue operation ....26 Diagnostic event in the operating tool . - Page 4 Table of contents Micropilot FMR10 12.4.2 Installation type sensor process connection front side ... . . 37 12.4.3 Mounting frame (short) for cantilever with pivot ... . . 40 12.4.4 Mounting frame (long) for cantilever...
-
Page 5: About This Document
Micropilot FMR10 About this document About this document Document function These Operating Instructions provide all of the information that is required in various phases of the life cycle of the device including: • Product identification • Incoming acceptance • Storage •... -
Page 6: Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate 1.3.1 Technical Information (TI) -
Page 7: Terms And Abbreviations
Android, Google Play and the Google Play logo are trademarks of Google Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Endress+Hauser... -
Page 8: Basic Safety Instructions
‣ With regard to special media and media used for cleaning, please contact the manufacturer. Endress+Hauser will be happy to assist in clarifying the corrosion- resistant properties of wetted materials but does not accept any warranty or liability. Residual risks... -
Page 9: Workplace Safety
The measuring system meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines. -
Page 10: Product Description
Product description Micropilot FMR10 Product description Product design 3.1.1 Micropilot FMR10 A0028415 1 Design of the Micropilot FMR10 (26 GHz) Sensor housing Seal Process connection rear side Cable gland Pipe adapter O-ring Counter nut Design ring Process connection front side... -
Page 11: Incoming Acceptance And Product
‣ Enter the serial number from the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) provided on the nameplate All the information about the measuring device and the scope of the associated Technical Documentation are displayed. -
Page 12: Nameplate
Incoming acceptance and product identification Micropilot FMR10 Nameplate Order code: Ser. no.: Ext. ord. cd.: MWP: Tp max: DeviceID: Dev.Rev.: ex works Mat.: if modification see sep. label Date: A0029096 2 Nameplate of Micropilot Manufacturer address Device name Order code Serial number (ser. -
Page 13: Installation
Micropilot FMR10 Installation Installation Installation conditions 5.1.1 Installation types A0028892 3 Wall, ceiling or nozzle installation Wall or ceiling mount, adjustable Mounted at front thread Mounted at rear thread Ceiling installation with counter nut (included in delivery) Horizontal installation in confined spaces (sewer shaft) -
Page 14: Position For Installation On A Vessel
Installation Micropilot FMR10 The maximum length of the nozzle L depends on the nozzle diameter D. Please note the limits for the diameter and length of the nozzle. Mounting outside the nozzle • D: min. 40 mm (1.5 in) • L: max. D × 1.5 Mounting inside the nozzle •... -
Page 15: Beam Angle
Micropilot FMR10 Installation ° ° ° A0028927 6 Device alignment for installation on a vessel 5.1.5 Beam angle α W = 2 × D × tan α A0033201 7 Relationship between beam angle α, distance D and beamwidth diameter W The beam angle is defined as the angle α... -
Page 16: Measurement In Plastic Vessels
Installation Micropilot FMR10 5.1.6 Measurement in plastic vessels A0029540 8 Measurement in a plastic vessel with a metallic, interfering installation outside of the vessel Pipe, tubing Ladder Grate, railing If the outer wall of the vessel is made of a non-conductive material (e.g. GFR), microwaves can also be reflected by interfering installations outside of the vessel. -
Page 17: Use Of Flooding Protection Tube
Micropilot FMR10 Installation 5.1.8 Use of flooding protection tube The flooding protection tube ensures the sensor measures the maximum level even if it is completely flooded. In free-field installations and/or in applications where there is a risk of flooding, the flooding protection tube must be used. -
Page 18: Cantilever Installation, With Pivot
Installation Micropilot FMR10 NOTICE There is no conductive connection between the mounting bracket and transmitter housing. Electrostatic charging possible. ‣ Integrate the mounting bracket in the local potential equalization system. 5.1.10 Cantilever installation, with pivot The cantilever, wall bracket and mounting frame are available as accessories. -
Page 19: Post-Installation Check
Micropilot FMR10 Installation Post-installation check Is the device or cable undamaged (visual inspection)? Is the device adequately protected from wet conditions and direct sunlight? Is the device properly secured? Endress+Hauser... -
Page 20: Electrical Connection
The sensor' s Bluetooth® wireless technology communication can be disabled to increase the operating life of the battery. Potential equalization No special measures for potential equalization are required. Various power supply units can be ordered as an accessory from Endress+Hauser. Endress+Hauser... -
Page 21: Connecting The Device
Electrical connection Connecting the device A0028907 17 FMR10 block diagram Micropilot FMR10, 4 to 20 mA Power supply Post-connection check Is the device or cable undamaged (visual inspection)? Do the mounted cables have adequate strain relief? Are the cable glands mounted and firmly tightened? ... -
Page 22: Operability
Operability Micropilot FMR10 Operability Operating concept • 4 to 20 mA • SmartBlue (app) via Bluetooth® wireless technology Operation via Bluetooth® wireless technology A0028895 18 Possibilities for remote operation via Bluetooth® wireless technology Transmitter power supply unit Smartphone/tablet with SmartBlue (app) Transmitter with Bluetooth®... -
Page 23: Commissioning And Operation
Micropilot FMR10 Commissioning and operation Commissioning and operation Installation and function check Perform the post-installation check and the post-connection check prior to commissioning. 8.1.1 Post-installation check Is the device or cable undamaged (visual inspection)? Is the device adequately protected from wet conditions and direct sunlight? ... -
Page 24: Envelope Curve Display In Smartblue
Commissioning and operation Micropilot FMR10 4. Enter the login data: User name: admin Password: serial number of the device 5. Tap the icons for more information. After logging in for the first time, change the password! 8.2.4 Envelope curve display in SmartBlue Envelope curves can be displayed and recorded in SmartBlue. - Page 25 Micropilot FMR10 Commissioning and operation A0029487 21 Envelope curve display (sample) in SmartBlue for iOS Record video Create screenshot Display mapping menu Start/stop video recording Move time on time axis Endress+Hauser...
-
Page 26: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Micropilot FMR10 Diagnostics and troubleshooting General errors Errors Possible cause Solution Device does not respond Supply voltage does not match the Apply correct voltage specification on the nameplate The polarity of the supply voltage is Correct the polarity... -
Page 27: Diagnostic Event In The Operating Tool
Micropilot FMR10 Diagnostics and troubleshooting Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status area of the operating tool along with the corresponding symbol for the event level in accordance with NAMUR NE 107: •... -
Page 28: Maintenance
Maintenance Micropilot FMR10 Diagnostic Short text Remedy instructions Status signal Diagnostic number [from the behavior factory] [from the factory] Echo lost Check parameter ' E valuation Warning sensitivity' Echo lost Alarm Maintenance No special maintenance work is required. 10.1 Cleaning the antenna The antenna may become contaminated depending on the application. -
Page 29: Repair
11.1 General information 11.1.1 Repair concept The Endress+Hauser repair concept is devised in such a way that repairs can only be carried out through device replacement. 11.1.2 Replacing a device Once the device has been replaced, parameters must be reconfigured and interference echo suppression or linearization may need to be carried out once again. -
Page 30: Accessories
Accessories Micropilot FMR10 Accessories 12.1 Device-specific accessories 12.1.1 Protective cover Ø 98 (3.86) A0028181 22 Dimensions of protective cover, engineering unit: mm (in) Material PVDF Order number 52025686 The sensor is not completely covered. 12.1.2 Securing nut G 1-1/2"... - Page 31 Micropilot FMR10 Accessories Order number 52014146 Endress+Hauser...
- Page 32 Accessories Micropilot FMR10 12.1.3 Flooding protection tube 40 mm (1.5 in) Suitable for use with devices with a 40 mm (1.5 in) antenna and G 1-1/2" process connection on front. The flooding protection tube can be ordered together with the device via the product structure "Accessory enclosed".
-
Page 33: Mounting Bracket, Adjustable
Micropilot FMR10 Accessories 12.1.4 Mounting bracket, adjustable 92.5 (3.64) 70 (2.76) 12 (0.47) 9 (0.35) A0028861 25 Dimensions of mounting bracket, engineering unit: mm (in) Consists of: • 1 × mounting bracket, 316L (1.4404) • 1 × angle bracket, 316L (1.4404) •... -
Page 34: Fax50 Screw-In Flange
Accessories Micropilot FMR10 12.2 FAX50 screw-in flange The FAX50 screw-in flange is a universal flange which can be used for three standards (DIN - ASME - JIS) owing to its min./max. dimensions. A0029185 26 Dimensions of the UNI flange FAX50... -
Page 35: Angle Bracket For Wall Mounting
Micropilot FMR10 Accessories 12.3 Angle bracket for wall mounting 400 (15.7) 120 (4.72) ø16 (0.6) 3 (0.12) A0019346 27 Dimensions of angle bracket. Unit of measurement mm (in) Sensor connection in accordance with product structure "Process connection on front"... -
Page 36: Cantilever With Pivot
Accessories Micropilot FMR10 12.4 Cantilever with pivot 12.4.1 Installation type sensor process connection rear side A0028885 28 Installation type sensor process connection rear side Installation with cantilever and wall bracket Installation with cantilever and mounting frame Cantilever Wall bracket... -
Page 37: Installation Type Sensor Process Connection Front Side
Micropilot FMR10 Accessories Cantilever (long) with pivot, sensor process connection on rear 1085 (42.7) 35 (1.4) 300 (11.8) 75 (2.9) 75 (2.9) 100 (3.9) 750 (29.5) 35 (1.4) A0037807 30 Dimensions of cantilever (long) with pivot for sensor process connection on rear. Unit of... - Page 38 Accessories Micropilot FMR10 Cantilever (short) with pivot, G 1-½" sensor process connection on front 585 (23) 35 (1.4) 200 (7.87) 75 (2.9) 75 (2.9) 100 (3.9) 250 (9.84) 35 (1.4) A0037802 32 Dimensions of cantilever (short) with pivot for G 1-½" sensor process connection on front. Unit of...
- Page 39 Micropilot FMR10 Accessories Cantilever (long) with pivot, G 1-½" sensor process connection on front 1085 (42.7) 35 (1.4) 300 (11.8) 75 (2.9) 75 (2.9) 100 (3.9) 750 (29.5) 35 (1.4) A0037803 33 Dimensions of cantilever (long) with pivot for G 1-½" sensor process connection on front. Unit of...
-
Page 40: Mounting Frame (Short) For Cantilever With Pivot
Accessories Micropilot FMR10 12.4.3 Mounting frame (short) for cantilever with pivot 3.2 (0.13) 60 (2.36) ø33.7 (1.3) 4 (0.16) 20 (0.8) 55 (2.17) 109 (4.29) (3.94) 130 (5.12) 150 (5.91) A0037799 34 Dimensions of mounting frame (short). Unit of measurement mm (in) Weight: 3.2 kg (7.06 lb) -
Page 41: Wall Bracket For Cantilever With
Micropilot FMR10 Accessories Weight: 4.9 kg (10.08 lb) Material 316L (1.4404) Order number 71452326 12.4.5 Wall bracket for cantilever with pivot 3.2 (0.1) 4 (0.16) ø33.7 (1.3) 6.5 (0.3) 25 (1.0) 88 (3.5) 110 (4.3) 150 (5.9) A0019350 36 Dimensions of the wall bracket. -
Page 42: Ceiling Mounting Bracket
Accessories Micropilot FMR10 12.5 Ceiling mounting bracket ø5.6 ø35 A0028891 37 Dimensions of ceiling mounting bracket. Unit of measurement mm (in) Material 316L (1.4404) Order number 71093130 Endress+Hauser... -
Page 43: Pivoted Mounting Bracket For Sewer Channel
Micropilot FMR10 Accessories 12.6 Pivoted mounting bracket for sewer channel The pivotable mounting bracket is used to install the device in a manhole over a sewer channel. 100 (3.94) 6.8 (0.27) 177 (6.97) 358 (14.1) A0038143 38 Dimensions of pivotable mounting bracket. Unit of measurement mm (in) Material 316L (1.4404) -
Page 44: Horizontal Mounting Bracket For Sewer
Accessories Micropilot FMR10 12.7 Horizontal mounting bracket for sewer shafts The horizontal mounting bracket for sewer shafts is used to install the device in confined spaces. 280 (11) Ø34 (1.34) 9 (0.35) A0038142 39 Dimensions of horizontal mounting bracket for sewer shafts. Unit of measurement mm (in) Material 316L (1.4404) -
Page 45: Service-Specific Accessories
All the relevant device information, such as the device status, spare parts and device-specific documentation, is available for every device over the entire life cycle. The application already contains the data of your Endress+Hauser device. Endress+Hauser also takes care of maintaining and updating the data records. W@M is available: www.endress.com/lifecyclemanagement... -
Page 46: Operating Menu
Operating menu Micropilot FMR10 Operating menu 13.1 Overview of the operating menu (SmartBlue) Navigation Operating menu Main menu ‣ Setup → 49 ‣ Basic setup Device tag → 49 Distance unit → 49 Empty calibration → 49 →... - Page 47 Micropilot FMR10 Operating menu First Echo sensitivity → 53 Output mode → 53 Blocking distance → 53 Level correction → 54 Evaluation distance → 54 Linearization type → 55 Level linearized → 55 ‣...
- Page 48 Operating menu Micropilot FMR10 ‣ Administration 2 Free field special → 61 ‣ Communication → 62 ‣ Bluetooth configuration → 62 → 62 Bluetooth mode ‣ Diagnostics → 63 ‣ Diagnostics → 63 Actual diagnostics →...
-
Page 49: Setup" Menu
Micropilot FMR10 Operating menu 13.2 "Setup" menu • : Indicates navigation to the parameter via operating tools • : Indicates parameters that can be locked via the access code. Navigation Setup Device tag Navigation Setup → Device tag... -
Page 50: Signal Quality
Operating menu Micropilot FMR10 User entry 0.0 to 12 m Factory setting 12 m Distance Navigation Setup → Distance Description Shows the distance D that is currently measured from the reference point (lower edge of flange / last thread of sensor) to the level. - Page 51 Micropilot FMR10 Operating menu Confirm distance Navigation Setup → Confirm distance Description Does the measured distance match the real distance? Select one of the options: - Manual map To be selected if the range of mapping is to be defined manually in the ' M apping end point' parameter.
-
Page 52: Advanced Setup" Submenu
Operator to the Maintenance mode. The device remains in the Operator mode if an incorrect access code is entered. If you lose the access code, please contact your Endress+Hauser sales center. User entry... -
Page 53: First Echo Sensitivity
Micropilot FMR10 Operating menu Selection • Slow <10 cm (0,4 in)/min • Standard <1 m (40 in)/min • Fast >1 m (40 in)/min • No filter / test Factory setting Standard <1 m (40 in)/min First Echo sensitivity Navigation ... -
Page 54: Level Correction
Operating menu Micropilot FMR10 Factory setting An automatic Blocking distance (→ 53) of at least 0.1 m (0.33 ft) is configured as standard. However, this can be overwritten manually (0 m (0 ft) is also permitted). Automatic calculation of the Blocking distance = Empty calibration - Full calibration - 0.2 m (0.656 ft). -
Page 55: Linearization Type
Micropilot FMR10 Operating menu Linearization type Navigation Setup → Advanced setup → Linearization type Description Linearization types Meaning of the options: • None: The level is output in the level unit without being converted (linearized) beforehand. • Table: The relationship between the measured level L and the output value (volume/flow/ weight) is defined by a linearization table. -
Page 56: Safety Settings
Operating menu Micropilot FMR10 "Safety settings" submenu Navigation Setup → Advanced setup → Safety settings Delay time echo lost Navigation Setup → Advanced setup → Safety settings → Delay time echo lost Description Define the delay time in the case of an echo loss. After an echo loss, the device waits for the time specified in this parameter before reacting as specified in the Diagnostic echo lost parameter. -
Page 57: Current Output
Micropilot FMR10 Operating menu "Current output" submenu Navigation Setup → Advanced setup → Current output Output current Navigation Setup → Advanced setup → Current output → Output current Description Shows the actual calculated value of the output current. -
Page 58: Ma Value
Operating menu Micropilot FMR10 4 mA value Navigation Setup → Advanced setup → Current output → 4 mA value Description Value for 4-mA at ' T urn down parameter' = On Using the turn down functionality it is possible to map a section of the measuring range to the total range of the output current (4-20mA). -
Page 59: Trim Value High
Micropilot FMR10 Operating menu Selection • Off • 4 mA • 20 mA • Calculate • Reset Factory setting Trim value high Navigation Setup → Advanced setup → Current output → Trim value high Description Enter upper measured value for the trim (around 20 mA). After this value has been entered: Select ' T rim' = Calculate. -
Page 60: Administration
Enter access code parameter. The new access code is only valid after it has been confirmed in the Confirm access code parameter. Please contact your Endress+Hauser Sales Center if you lose your access code. -
Page 61: Free Field Special
Micropilot FMR10 Operating menu Free field special Navigation Setup → Advanced setup → Administration → Free field special Description Switch the free field option on or off. This parameter can be switched on for free field applications (e.g. below bridges). Caution: The customer map (if one exists) is reset to the factory map!. -
Page 62: Communication" Submenu
Operating menu Micropilot FMR10 13.2.2 "Communication" submenu Navigation Setup → Communication "Bluetooth configuration" submenu Navigation Setup → Communication → Bluetooth configuration Bluetooth mode Navigation Setup → Communication → Bluetooth configuration → Bluetooth mode Description Enable or disable Bluetooth function.. Remark: Switching to position ' O ff' will disable remote access via the app with immediate effect. -
Page 63: Diagnostics" Submenu
Micropilot FMR10 Operating menu 13.3 "Diagnostics" submenu Navigation Diagnostics Actual diagnostics Navigation Diagnostics → Actual diagnostics Description Displays current diagnostic message. If several messages are active at the same time, the messages with the highest priority is displayed. - Page 64 Operating menu Micropilot FMR10 User interface • Strong • Medium • Weak • No signal Endress+Hauser...
-
Page 65: Device Information" Submenu
Micropilot FMR10 Operating menu 13.3.1 "Device information" submenu Navigation Diagnostics → Device information Device name Navigation Diagnostics → Device information → Device name Description Shows the name of the transmitter. Factory setting Micropilot FMR20 Firmware version Navigation ... -
Page 66: Order Code
Operating menu Micropilot FMR10 Order code Navigation Diagnostics → Device information → Order code Description Shows the device order code. Serial number Navigation Diagnostics → Device information → Serial number Description Shows the serial number of the measuring device. -
Page 67: Simulation" Submenu
Micropilot FMR10 Operating menu 13.3.2 "Simulation" submenu Navigation Diagnostics → Simulation Simulation Navigation Diagnostics → Simulation → Simulation Description Select process variable to be simulated. The Simulation is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. -
Page 68: Index
Index Micropilot FMR10 Index 0 … 9 4 mA value (Parameter) ..... . 58 Field of application 20 mA value (Parameter) ..... 58 Residual risks . - Page 69 Micropilot FMR10 Index Safety settings ......56 Simulation ......67 Trim (Parameter) .
