20-427 Owner's Manual Draft
RadioShack
20-427

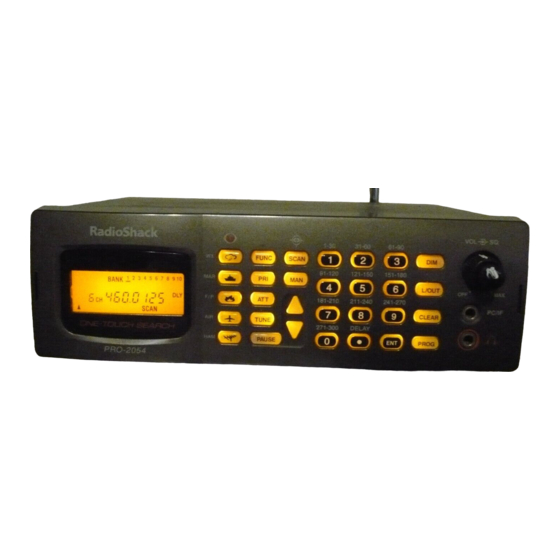

PRO-2054 300 Channel Mobile/Base Scanner
Please read this user's guide before installing, setting up and using your new product
www.radioshack.com
Thank you for purchasing your Pro-2054 300 channel Mobile/Base scanner from
RadioShack. You can mount your scanner in a fixed position and use it as a base scanner or
you can use it as a mobile scanner by mounting it in a vehicle. This scanner lets you scan
conventional transmissions, and is preprogrammed with search banks for convenience. By
pressing a one touch search key, you can quickly search those frequencies most commonly
used by public service and other agencies without tedious and complicated programming.
what's included
user's guide
quick start guide
Scanner
Antenna
DIN sleeve and keys (2)
Knob (2)
Rubber washer (2)
Screw (2)
Rubber foot (3)
contents
will add
© 2005 RadioShack Corporation.
All Rights Reserved.
RadioShack, RadioShack.com, Hypersearch, Hyperscan, and Adaptaplug are trademarks
used by RadioShack Corporation.
preloaded data addendum
DC cable w/fuse
Mounting bracket
Lock washer (2)
Page 1 of 36
AC adapter

Advertisement

loading
