Operating manual XENOTEST BETA LM

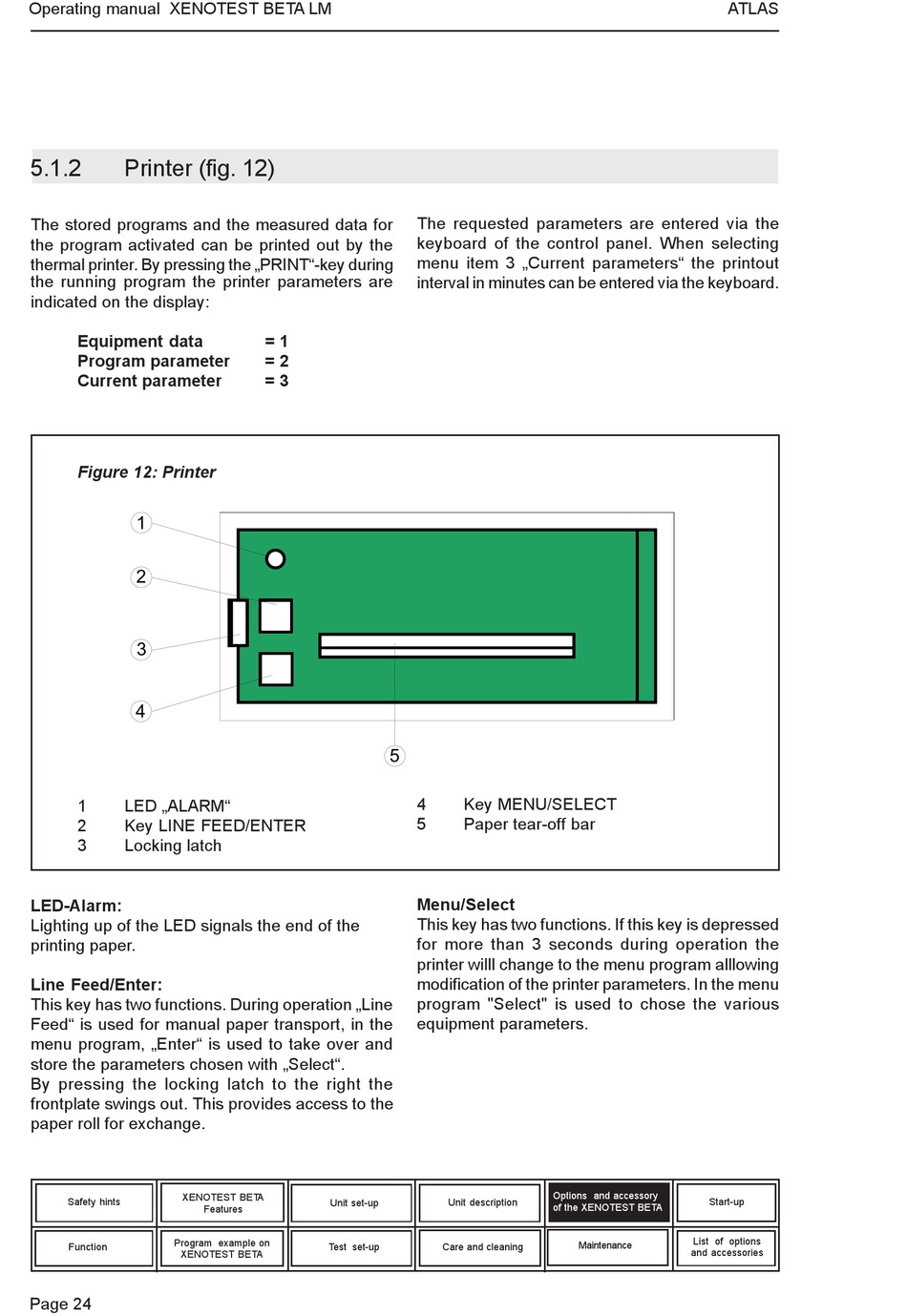

5.1.2 Printer (fig. 12)
The stored programs and the measured data for
the program activated can be printed out by the
thermal printer. By pressing the „PRINT"-key during
the running program the printer parameters are
indicated on the display:
Equipment data
Program parameter
Current parameter
Figure 12: Printer
1
2
3
4
1 LED „ALARM"
2 Key LINE FEED/ENTER
3 Locking latch
LED-Alarm:
Lighting up of the LED signals the end of the
printing paper.
Line Feed/Enter:
This key has two functions. During operation „Line
Feed" is used for manual paper transport, in the
menu program, „Enter" is used to take over and
store the parameters chosen with „Select".
By pressing the locking latch to the right the
frontplate swings out. This provides access to the
paper roll for exchange.
XENOTEST BETA
Safety hints
Program example on
Function
XENOTEST BETA
Page 24
= 1
= 2
= 3
Unit set-up
Features
Test set-up
The requested parameters are entered via the
keyboard of the control panel. When selecting
menu item 3 „Current parameters" the printout
interval in minutes can be entered via the keyboard.
5
4 Key MENU/SELECT
5 Paper tear-off bar
Menu/Select
This key has two functions. If this key is depressed
for more than 3 seconds during operation the
printer willl change to the menu program alllowing
modification of the printer parameters. In the menu
program "Select" is used to chose the various
equipment parameters.
