Tray Guide Removal - Lexmark MX310 Service Manual

8

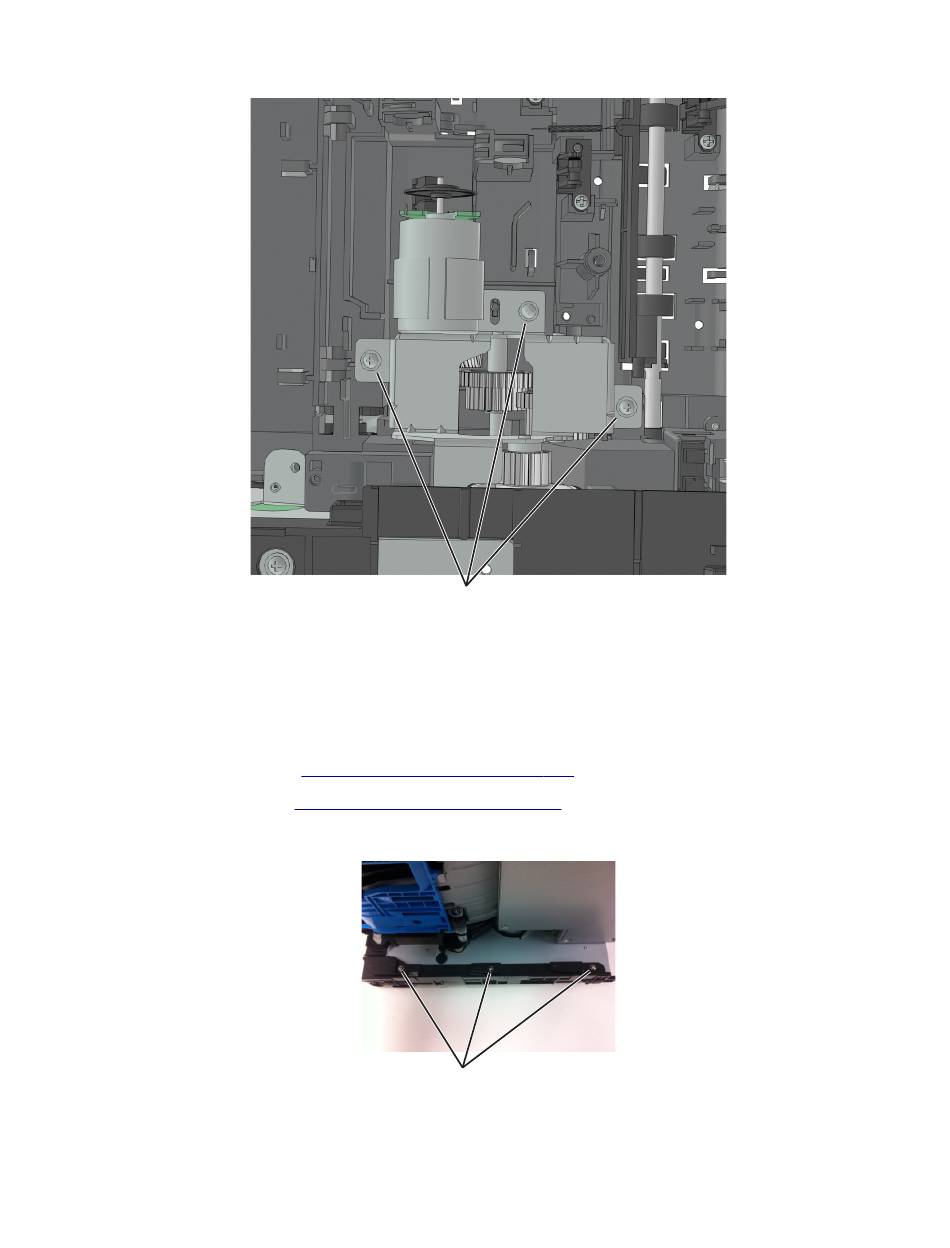

Remove the three screws (A).
9
Disconnect the cable from the pick/lift motor gearbox.

Tray guide removal

Left guide
1
Remove the rear cover. See
2
Remove the left cover. See
3
Turn the printer on its side (left side down), then remove the three screws (A) from the left guide.
Installation note: Before removing the guide, note the position of the ground spring. It will need to be
re‑installed when the guide is re‑installed.
A
"Rear cover removal" on page
"Left cover removal" on page
A
Parts removal
366
370.
279.
7015
