Group Controls panel
1. For the and
Mic Volume
sliders to set minimum and maximum volume limits.
2. Click and drag the handle of the
value in the field below the sliders or click the
Click the button to mute the audio source.
Mute
3. For the and
Bass Treble
minimum and maximum limits.
4. Click and drag the handle of the
below the sliders or click the
100 Hz. The default frequency is 8 kHz.
Also known as shelving or tone controls, bass and treble filters provide the ability to
cut or boost gain linearly above or below a selected frequency. Set either slider to
bypass the filter.
5. Click the
Configure Groups
Groups window opens.
There are eight preconfigured group masters to perform audio configuration.

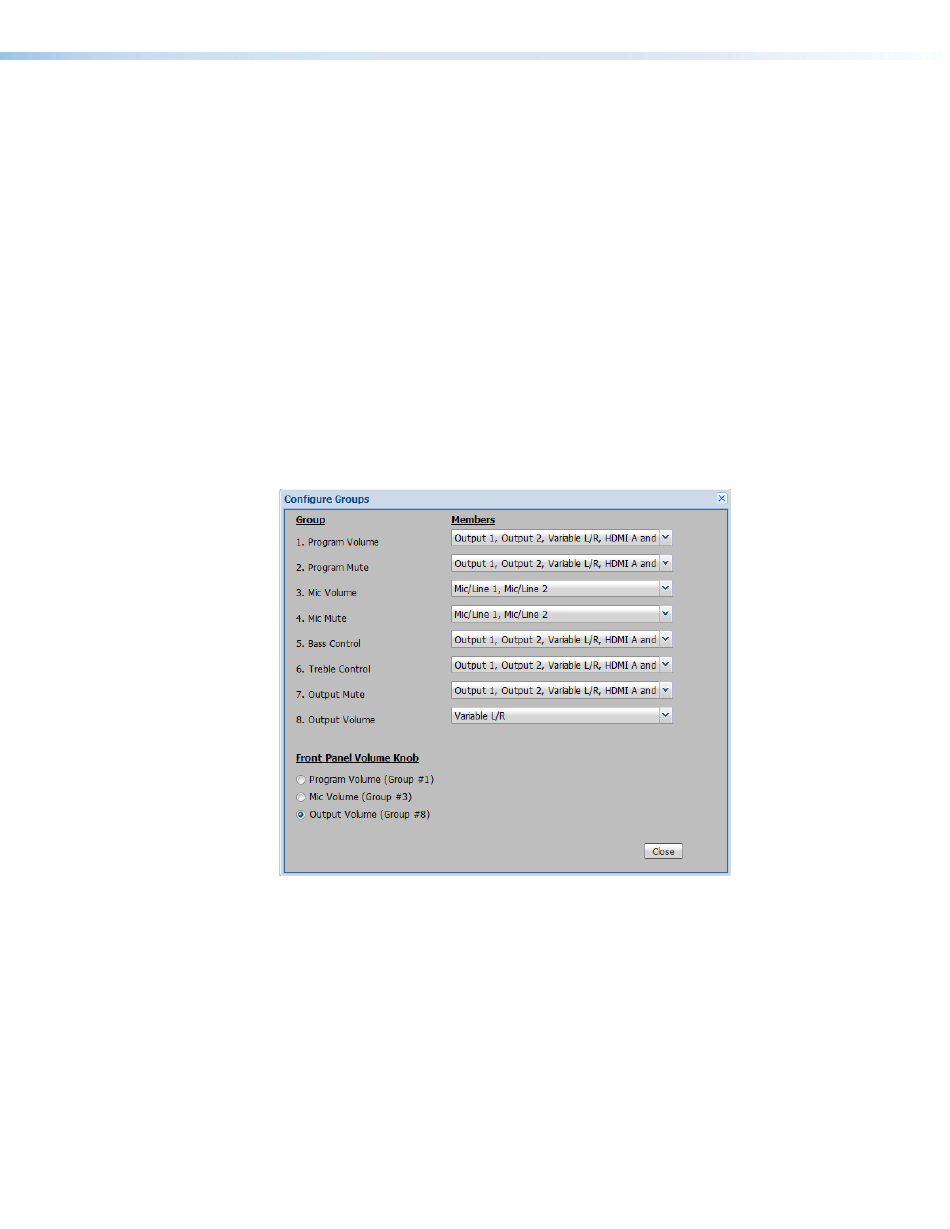

Figure 47. Configure Groups Window
Each group contains several group members which can be added or removed from a
group. Selecting members applies audio configurations made to the group master to
the selected group members (see Group Controls panel above or the
page 73 to adjust group masters).
6. From the drop-down menu, select the desired members check box (see the
Members
table on the next page for a list of available group members per group masters).
7. Click the button.
Close
