Auto-Image
Select the check box of the desired input to enable an automatic Auto-Image
Auto-Image
to an input. When enabled, Auto-Image is applied whenever there is a change in the input
sync. Auto-Image attempts to size and center the input signal based on the aspect ratio
setting.
Auto Memory
Select the check box of the desired input to enable the Auto Memory. Auto
Auto Memory
Memory recalls input and image settings for signals that have previously been applied.
When Auto Memory is disabled, the scaler treats every newly applied input as a new source.
HDCP Authorized
Select the
HDCP Authorized
report as an HDCP Authorized device. If the box is not checked, the source is blocked
from encrypting its output. This may result in some content not being passed by the source
device.
NOTE: This option is not available for analog inputs 1 and 2.
Film Detect
Select the check box of the desired input to enable automatic 3:2 and 2:2
Film Detect
film pulldown detection for NTSC, PAL, SECAM, and 1080i input signals.
Output Configuration panel
The Output Configuration panel consists of output resolution, format settings, switch
transitions, and available test patterns.

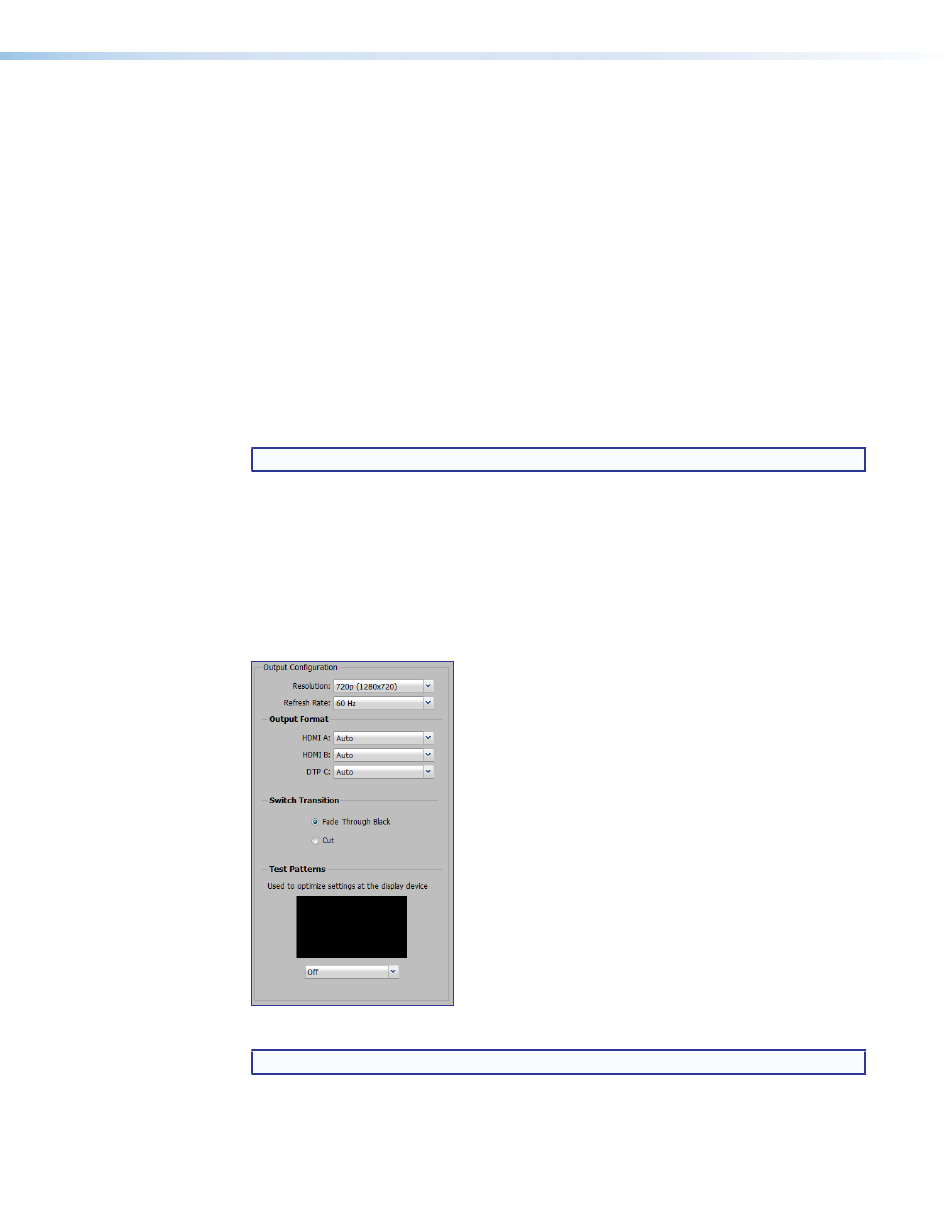

Figure 35. Output Configuration (IN1608)
NOTE: Output is not available on the IN1606.
DTP C
Resolution
From the drop-down menu, select the applicable output resolution.
Resolution
IN1606 and IN1608 Series Scaling Presentation Switcher • Internal Web Pages
