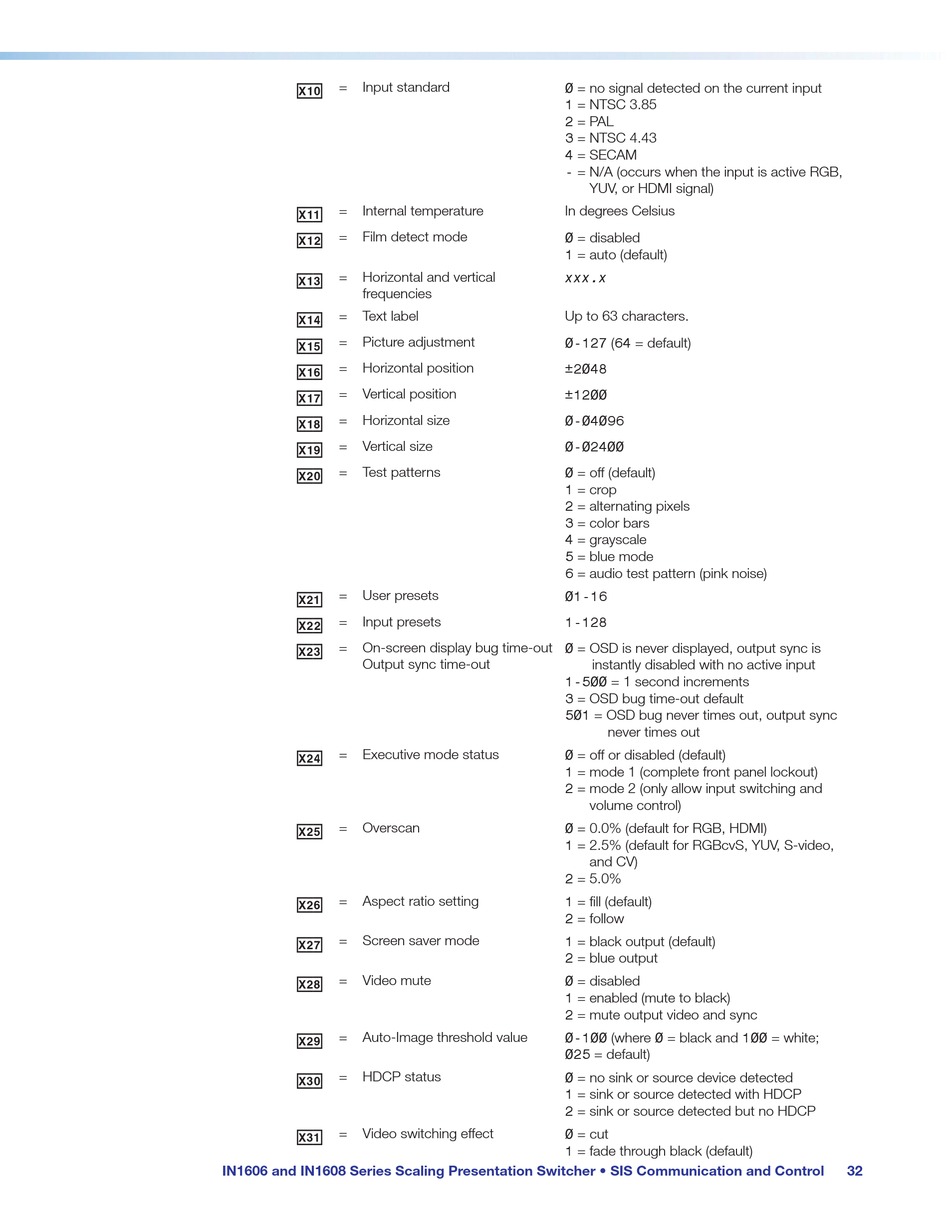

X1) = Input standard
X1! = Internal temperature
X1@ = Film detect mode
X1# = Horizontal and vertical
frequencies
X1$ = Text label
X1% = Picture adjustment
X1^ = Horizontal position
X1& = Vertical position
X1* = Horizontal size
X1( = Vertical size
X2) = Test patterns
X2! = User presets
X2@ = Input presets
X2# = On-screen display bug time-out
Output sync time-out
X2$ = Executive mode status
X2% = Overscan
X2^ = Aspect ratio setting
X2& = Screen saver mode
X2* = Video mute
X2( = Auto-Image threshold value
X3) = HDCP status
X3! = Video switching effect
IN1606 and IN1608 Series Scaling Presentation Switcher • SIS Communication and Control
0 = no signal detected on the current input
1 = NTSC 3.85
2 = PAL
3 = NTSC 4.43
4 = SECAM
- = N/A (occurs when the input is active RGB,
YUV, or HDMI signal)
In degrees Celsius
0 = disabled
1 = auto (default)
xxx.x
Up to 63 characters.
0-127 (64 = default)
±2048
±1200
0-04096
0-02400
0 = off (default)
1 = crop
2 = alternating pixels
3 = color bars
4 = grayscale
5 = blue mode
6 = audio test pattern (pink noise)
01-16
1-128
0 = OSD is never displayed, output sync is
instantly disabled with no active input
1-500 = 1 second increments
3 = OSD bug time-out default
501 = OSD bug never times out, output sync
never times out
0 = off or disabled (default)
1 = mode 1 (complete front panel lockout)
2 = mode 2 (only allow input switching and
volume control)
0 = 0.0% (default for RGB, HDMI)
1 = 2.5% (default for RGBcvS, YUV, S-video,
and CV)
2 = 5.0%
1 = fill (default)
2 = follow
1 = black output (default)
2 = blue output
0 = disabled
1 = enabled (mute to black)
2 = mute output video and sync
0-100 (where 0 = black and 100 = white;
025 = default)
0 = no sink or source device detected
1 = sink or source detected with HDCP
2 = sink or source detected but no HDCP
0 = cut
1 = fade through black (default)
32
