Update Firmware
This option uploads firmware from the host device to the connected device.
NOTE: If necessary, download new firmware from the Extron website (see
Downloading Updated Firmware
1. From the menu, select
Tools
to disconnect from the device.
2.
Click the button to disconnect from the device and continue with the
Continue
firmware update process. The Update Firmware dialog box opens.
3. Click the button.
Browse
4. Navigate to the desired firmware file and select the device-specific firmware file. Valid
firmware files have an .eff or .esf file extension.
5. Click the button. This returns you to the Update Firmware dialog box.
Open
6. In the Update Firmware dialog box, click
of the firmware upload to the device.
Trace Window
This option displays the data sent to and from the device in a separate window for
debugging purposes.

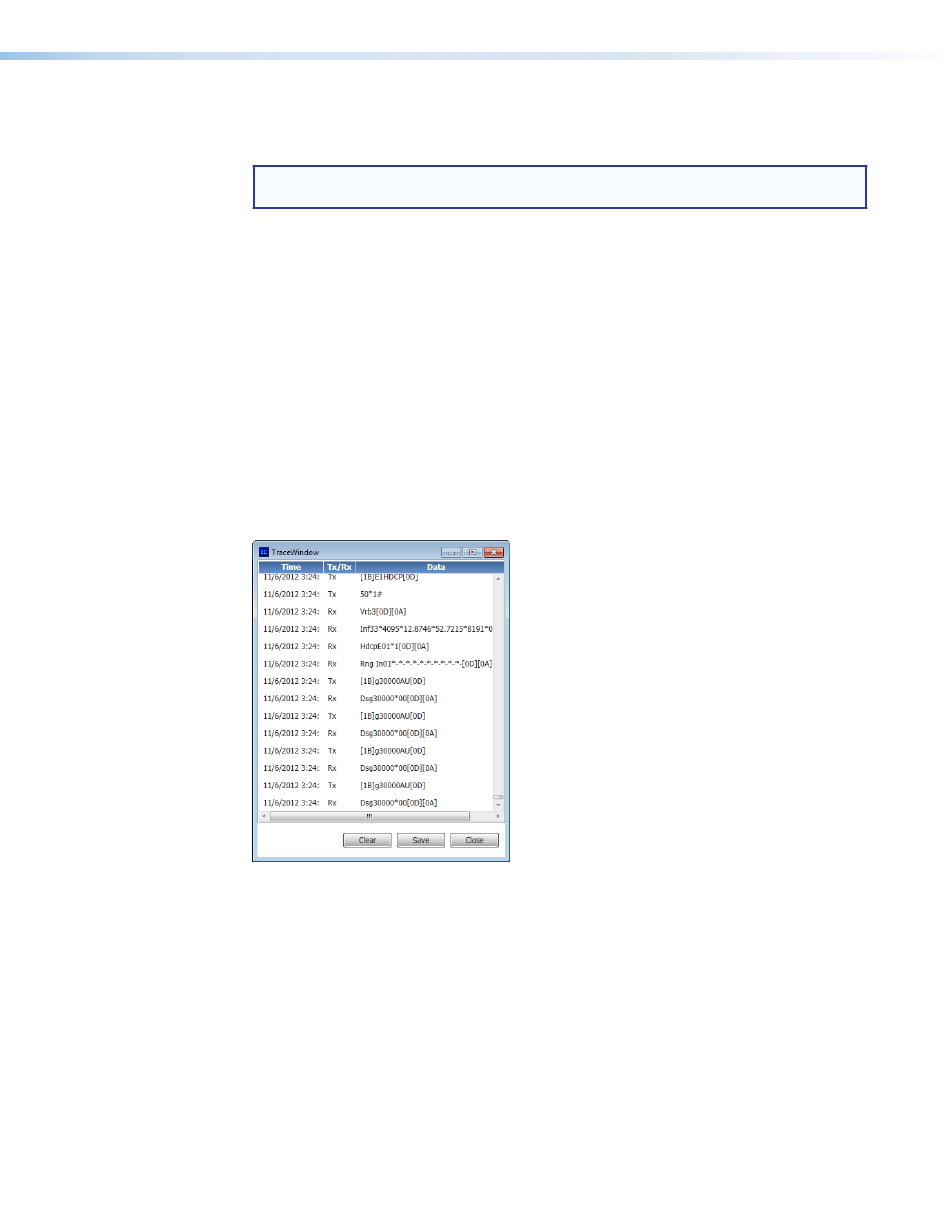

Figure 30. Trace Window
From the menu, select
Tools
• Click the button to erase the displayed data in the window.
Clear
Click the button to save the displayed data in XML format.
•
Save
Reset Confirmation Dialogs
This option resets all disabled confirmation dialogs to the default settings.
1. From the menu, select
Tools
2.
Click the button.
Reset
IN1606 and IN1608 Series Scaling Presentation Switcher • Configuration Software
on page 88).
. A dialog box opens to ask permission
Update Firmware
. The progress bar shows the progress
Upload
. The Trace Window window opens.
Trace Window
Reset Confirmation Dialogs
. A dialog box opens.
