Presets panel
Presets save output settings to be recalled through RS-232 or Ethernet (see the following
table for a comparison of saved settings for input and user presets).
Setting
Horizontal and Vertical Start
Active Lines
Pixel Phase
Active Pixels
Total Pixels
Input Type
Audio Gain and Attenuation
Film Detect
Brightness and Contrast
Color and Tint
Detail
Image Size and Position
Preset Name
NOTE: User presets can be saved on one input resolution and recalled on a different
one. Input presets can only be recalled on the same input resolution that was present
when the preset was saved.

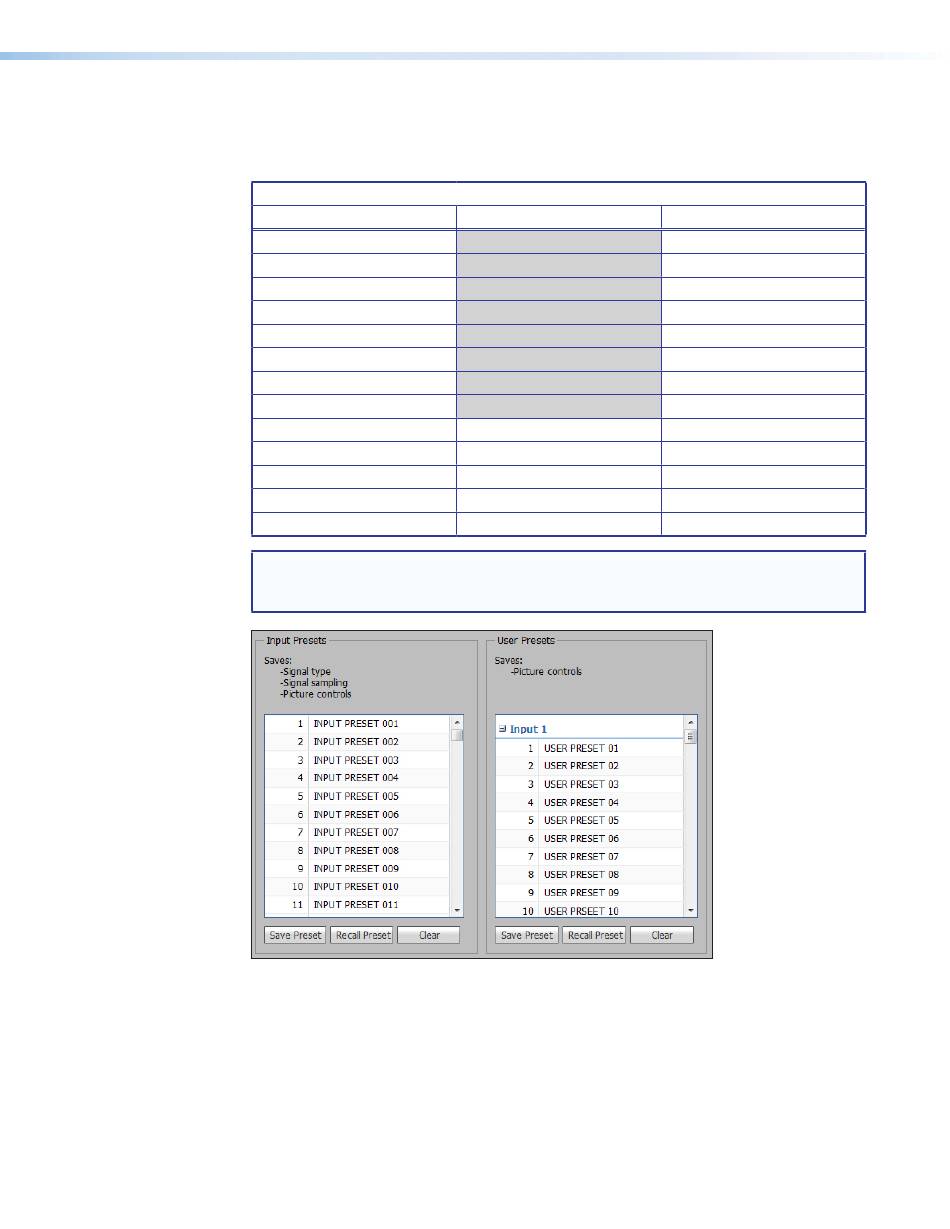

Figure 42. Input and User Presets Panels
IN1606 and IN1608 Series Scaling Presentation Switcher • Internal Web Pages
Settings Included Within Presets
User Preset
X
X
X
X
X
Input Preset
X
X
X
X
X
X
X
X
X
X
X
X
X
