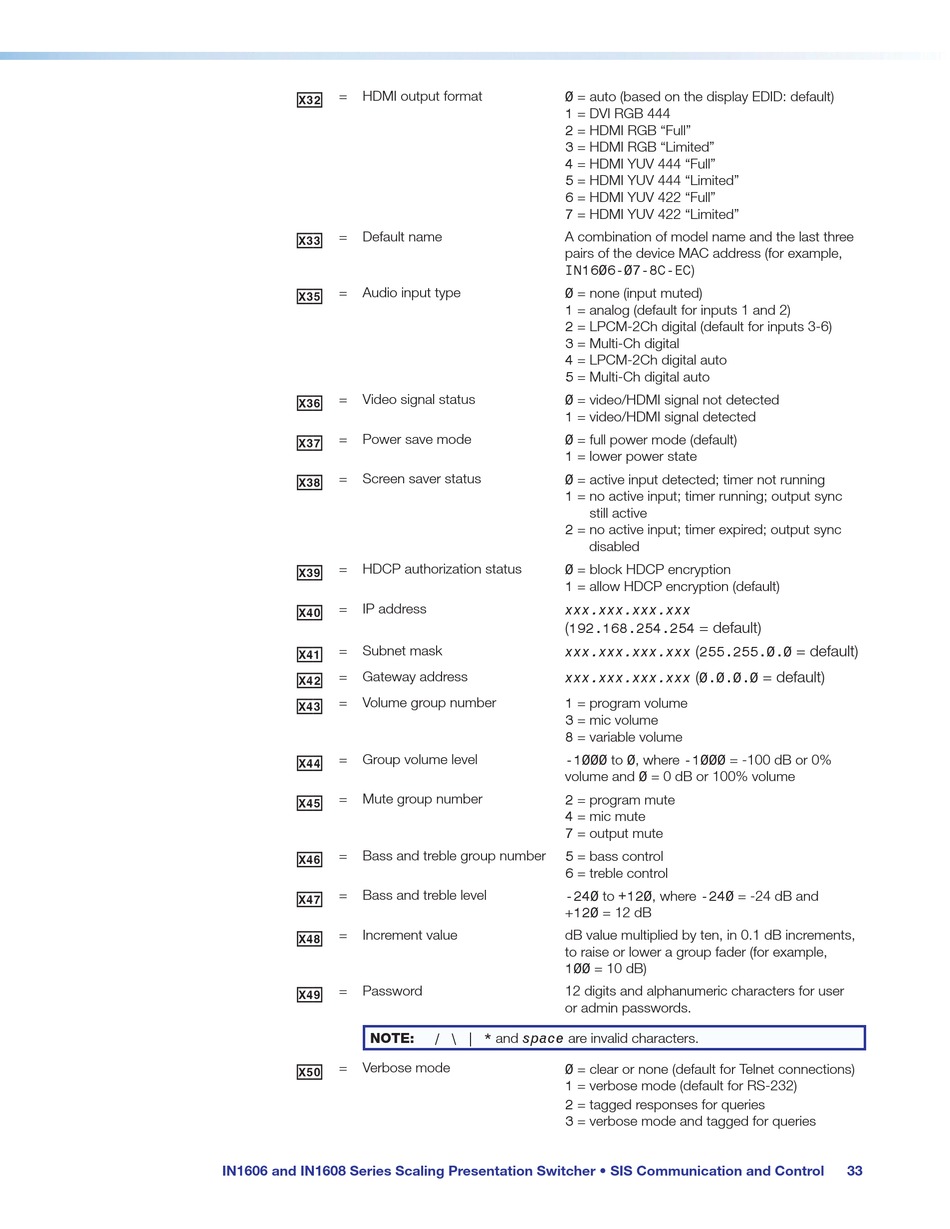

Extron electronics IN1606 User Manual page 39

X3@ = HDMI output format
X3# = Default name
X3% = Audio input type
X3^ = Video signal status
X3& = Power save mode
X3* = Screen saver status
X3( = HDCP authorization status
X4) = IP address
X4! = Subnet mask
X4@ = Gateway address
X4# = Volume group number
X4$ = Group volume level
X4% = Mute group number
X4^ = Bass and treble group number
X4& = Bass and treble level
X4* = Increment value
X4( = Password
NOTE:
X5) = Verbose mode
IN1606 and IN1608 Series Scaling Presentation Switcher • SIS Communication and Control
0 = auto (based on the display EDID: default)
1 = DVI RGB 444
2 = HDMI RGB "Full"
3 = HDMI RGB "Limited"
4 = HDMI YUV 444 "Full"
5 = HDMI YUV 444 "Limited"
6 = HDMI YUV 422 "Full"
7 = HDMI YUV 422 "Limited"
A combination of model name and the last three
pairs of the device MAC address (for example,
IN1606-07-8C-EC)
0 = none (input muted)
1 = analog (default for inputs 1 and 2)
2 = LPCM-2Ch digital (default for inputs 3-6)
3 = Multi-Ch digital
4 = LPCM-2Ch digital auto
5 = Multi-Ch digital auto
0 = video/HDMI signal not detected
1 = video/HDMI signal detected
0 = full power mode (default)
1 = lower power state
0 = active input detected; timer not running
1 = no active input; timer running; output sync
still active
2 = no active input; timer expired; output sync
disabled
0 = block HDCP encryption
1 = allow HDCP encryption (default)
xxx.xxx.xxx.xxx
(
192.168.254.254
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
1 = program volume
3 = mic volume
8 = variable volume
-1000 to 0, where -1000 = -100 dB or 0%
volume and 0 = 0 dB or 100% volume
2 = program mute
4 = mic mute
7 = output mute
5 = bass control
6 = treble control
-240 to +120, where -240 = -24 dB and
+120 = 12 dB
dB value multiplied by ten, in 0.1 dB increments,
to raise or lower a group fader (for example,
100 = 10 dB)
12 digits and alphanumeric characters for user
or admin passwords.
/ \ | * and space are invalid characters.
0 = clear or none (default for Telnet connections)
1 = verbose mode (default for RS-232)
2 = tagged responses for queries
3 = verbose mode and tagged for queries
= default)
( = default)
255.255.0.0
( = default)
0.0.0.0
33
