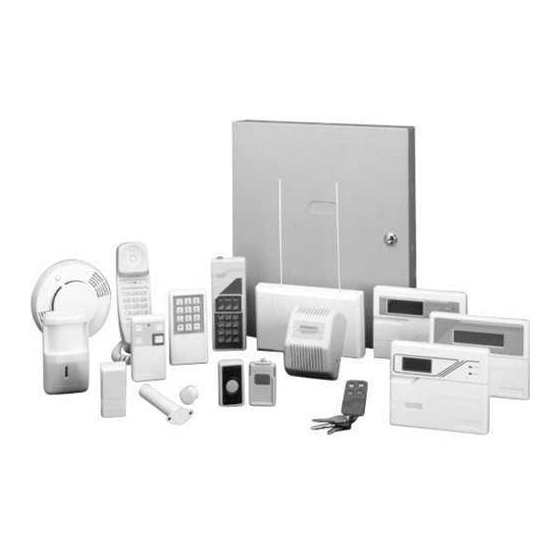

VISTA-50P
VISTA-50PUL
PARTITIONED SECURITY SYSTEM
with SCHEDULING

Quick Start

Step-by-Step Programming Procedure
Single And Multiple Partition Programming Forms
System Worksheets
VISTA50P-PRV1 Rev B 4/99

Advertisement

Table of Contents
loading

Related Manuals for ADEMCO VISTA-50P

Summary of Contents for ADEMCO VISTA-50P

  • Page 1: Quick Start

    VISTA-50P VISTA-50PUL PARTITIONED SECURITY SYSTEM with SCHEDULING Quick Start Step-by-Step Programming Procedure Single And Multiple Partition Programming Forms System Worksheets VISTA50P-PRV1 Rev B 4/99...
  • Page 2 – 2–...
  • Page 3 • To enter program mode, enter installer code + [8] + [0] + [0] • To set standard defaults, press *97 • To set communication defaults, press *94 + one of the following: *80=low speed; *81=Ademco Express; *82=Ademco High Speed; *83=Ademco's Contact ID •...

  • Page 4: Communications

    Recommended Programming Procedure The following is a step-by-step procedure recommended for programming your VISTA-50P/VISTA-50PUL system. Set the keypads (and other peripheral devices) to the appropriate addresses. Set factory defaults by pressing *97. This will automatically enable keypad addresses 00-03, so be sure at least one keypad is set to one of these addresses.
  • Page 5 1 1 . Use #93 Menu Mode for programming relay voice descriptors and custom word substitutes. Refer to the RELAY VOICE DESCRIPTORS section for further instructions for programming relay descriptors to be annunciated by the 4285 VIP module, as well as the CUSTOM INDEX section for custom word substitutes.

  • Page 6: Table Of Contents

    PROGRAM FIELD CATEGORIES In the following pages, the programming fields have been arranged by category. Use this index to cross reference the numerical ordered fields on the programming form. Field Group Field Group 1*42 Communications 1*43 Partition-Specific System-Wide Communications 1*44 System-Wide #93 Menu Mode Communications...

  • Page 7: Menu

    VISTA 50P/VISTA 50-PUL SINGLE PARTITION PROGRAMMING FORM Standard default (*97) values are shown in brackets [ ], otherwise default = 0. Fields bordered by dotted line can be programmed using the #93 Menu mode. * 0 0 * 2 5 INSTALLER CODE BURG.TRIGGER FOR RESPONSE TYPE 8 Enter 4 digits, 0-9 [4140]...
  • Page 8 RING DETECTION COUNT [00] Alarm Rst. 01-14; 15=answering machine; 00=no detection Trouble * 4 5 PRIMARY FORMAT 0=Low Speed; 1=Contact ID; 2=Ademco High Speed; Trble Rst. 3=Ademco Express Bypass * 4 6 LOW SPEED FORMAT (Primary) 0=Ademco Low Speed; 1=Sescoa/Radionics Bypss Rst.
  • Page 9 2nd Page Programming Fields SYSTEM NON ALARM CODES (press *94) ASSIGN RESPONSE TYPE FOR ZONES First Digit Second Digit (Enter 00-10; see Response Types below) 1*01 1*02 1*03 1*04 1*05 Second digit of each code Close applies only to 4+2 or expanded (fields *52 &...

  • Page 10: Menu

    NON-ALARM DIALER CODES ( Armed Stay, Time Set & Event Logging) 1 * 1 7 LOBBY PARTITION 1*40 1*41 First Digit Second Digit Enter the "common lobby" partition (1-8) Armed STAY 1 * 1 8 AFFECTS LOBBY Time/Date set or event log reset Enter 1 if this partition affects the common lobby;...

  • Page 11: Summary Of Programming Commands

    1=enable; 0=disable; If enabled, only openings and closings • To set communication defaults, press *94 + occurring outside the scheduled opening / one of the following: *80=low speed; *81=Ademco closing windows will trigger dialer reports. Opening reports will also be suppressed during the closing window., Express;...
  • Page 12 NOTES: – 12 –...

  • Page 13: Partition-Specific

    01-14; 15=answering machine; 00=no detection 1=yes; 0=enable for RF and RPMs * 4 5 PRIMARY FORMAT * 2 5 BURG.TRIGGER FOR RESPONSE TYPE 8 0=Low Speed; 1=Contact ID; 2=Ademco High Speed; 1=enable; 0=disable 3=Ademco Express * 2 6 INTELLIGENT TEST REPORTING * 4 6 LOW SPEED FORMAT (Primary) Set "0"...
  • Page 14 CODE CODE * 4 8 LOW SPEED FORMAT (Sec.) 0=Ademco Low Speed; 1=Sescoa/Radionics Alarm Rst. * 4 9 CHECKSUM VERIFICATION [0] [0] Trouble 1=yes; 0=no PrimScndry Trble Rst. * 5 0 SESCOA/RADIONICS SELECT 1=Sescoa; 0=Radionics Bypass * 5 1 DUAL REPORTING Bypss Rst.

  • Page 15: Partition-Specific

    * 8 3 FIRST TEST REPORT TIME 1 * 2 0 EXIT ERROR LOGIC [Day 00; hour 12; min 00] Days 01-07 Hours 00-23 Min 00-59; 1=Enable (E/E and Interior zones will be bypassed if faulted 00 in all boxes=instant (Day 01= Monday) after exit delay);...

  • Page 16: Partition-Specific

    NON-ALARM DIALER CODES ( Armed Stay, Time Set & Event Logging) 1*40 1*41 First Digit Second Digit 1 * 5 7 5800 RF BUTTON GLOBAL ARM Armed STAY Enter "1" to have the system arm/disarm following the button user's global arm settings. Enter "0" if the button is not to be Time/Date set or event log reset used to global arm the system.

  • Page 17: Communications

    2 * 1 0 ALLOW DISARMING ONLY Partition-Specific • To set communication defaults, press *94 + DURINGARM/DISARM WINDOWS one of the following: *80=low speed; *81=Ademco Express; *82=Ademco High Speed; *83=Ademco's 2 * 1 1 ALLOW DISARM OUTSIDE WINDOW Contact ID IF ALARM OCCURS •...

  • Page 18: System-Wide

    PARTITION-SPECIFIC FIELDS (Duplicate this page for each partition in the installation.) To program these fields, 1. Press *91 and select a partition. 2. Enter a partition-specific field number (ex. *09) and make the desired entry. 3. To access the 2nd and 3rd Page fields, press *94 to advance to the next higher level. Then enter * + [last two digits] and make the desired entry.

  • Page 19: Programming With #93 Menu Mode

    PROGRAMMING WITH #93 MENU MODE NOTE: The following fields should be preset before beginning: 2*00 Number of Partitions; 1*32 receiver type. In addition, receivers should be programmed via Device programming. After programming all system related programming fields in the usual way, press #93 while still in programming mode to display the first choice of the menu driven programming functions.

  • Page 20: System Layout Worksheets

    SYSTEM LAYOUT WORKSHEETS As with any security system, you should first define the installation. This includes determining how many partitions will be used, how many zones per partition, and how many users per partition. You will also need to determine what peripheral devices will be needed, and basic system options such as exit/entry delays, etc.
  • Page 21 SYSTEM DEFINITIONS BY PARTITION (enter values or yes/no) Option part 1 part. 2 part. 3 part. 4 part. 5 part. 6 part. 7 part. 8 Entry Delay #1 (15-225 seconds): Exit Delay #1 (15-225 seconds): Entry Delay #2 (15-225 seconds): Exit Delay #2 (15-225 seconds): Quick Arming Multiple Alarms per Arming...

  • Page 22: Group

    ACCESS CODES & USER DEFINITIONS FOR PARTITIONS 1-3 4-digit Access Partition 1 Partition 2 Partition 3 Security Group 2-digit Auth. open/ Global 2-digit Auth. open/ Global 2-digit Auth. open/ Global Code 0; 1-8 user # level close Arm? user # level close Arm?
  • Page 23 ZONE DEFINITIONS FOR ZONES 1-24 † Enter loop number on module † Parti- RPM RPM RF Trans. Type Loop number must be 1 for hardwire and DIP devices) Zone Zone tion RF UR BR left right Ser. Hard Report Zone Information (part numbers) & †...
  • Page 24 ZONE DEFINITIONS FOR ZONES 25-48 †Enter loop number on module † Parti- RPM RPM RF Trans. Type Loop number must be 1 for hardwire and DIP devices) Zone Zone tion RF UR BR left right Ser. Hard Report Zone Information (part numbers) & †...
  • Page 25 ZONE DEFINITIONS FOR ZONES 49-72 † Enter loop number on module † Parti- RPM RPM RF Trans. Type Loop number must be 1 for hardwire and DIP devices) Zone Zone tion RF UR BR left right Ser. Hard Report Zone Information (part numbers) & †...
  • Page 26 ZONE DEFINITIONS FOR ZONES 73-86 † Enter loop number on module † Parti- RPM RPM RF Trans. Type Loop number must be 1 for hardwire and DIP devices) Zone Zone tion RF UR BR left right Ser. Hard Report Zone Information (part numbers) & †...
  • Page 27 NOTES: – 27 –...
  • Page 28 ALARM DEVICE MANUFACTURING CORPORATION A DIVISION OF PITTWAY CORPORATION 165 Eileen Way, Syosset, New York 11791 © Copyright 1994 PITTWAY CORPORATION àVISTA50P-PRV1%ä VISTA50P-PRV1 Rev B 4/99...
