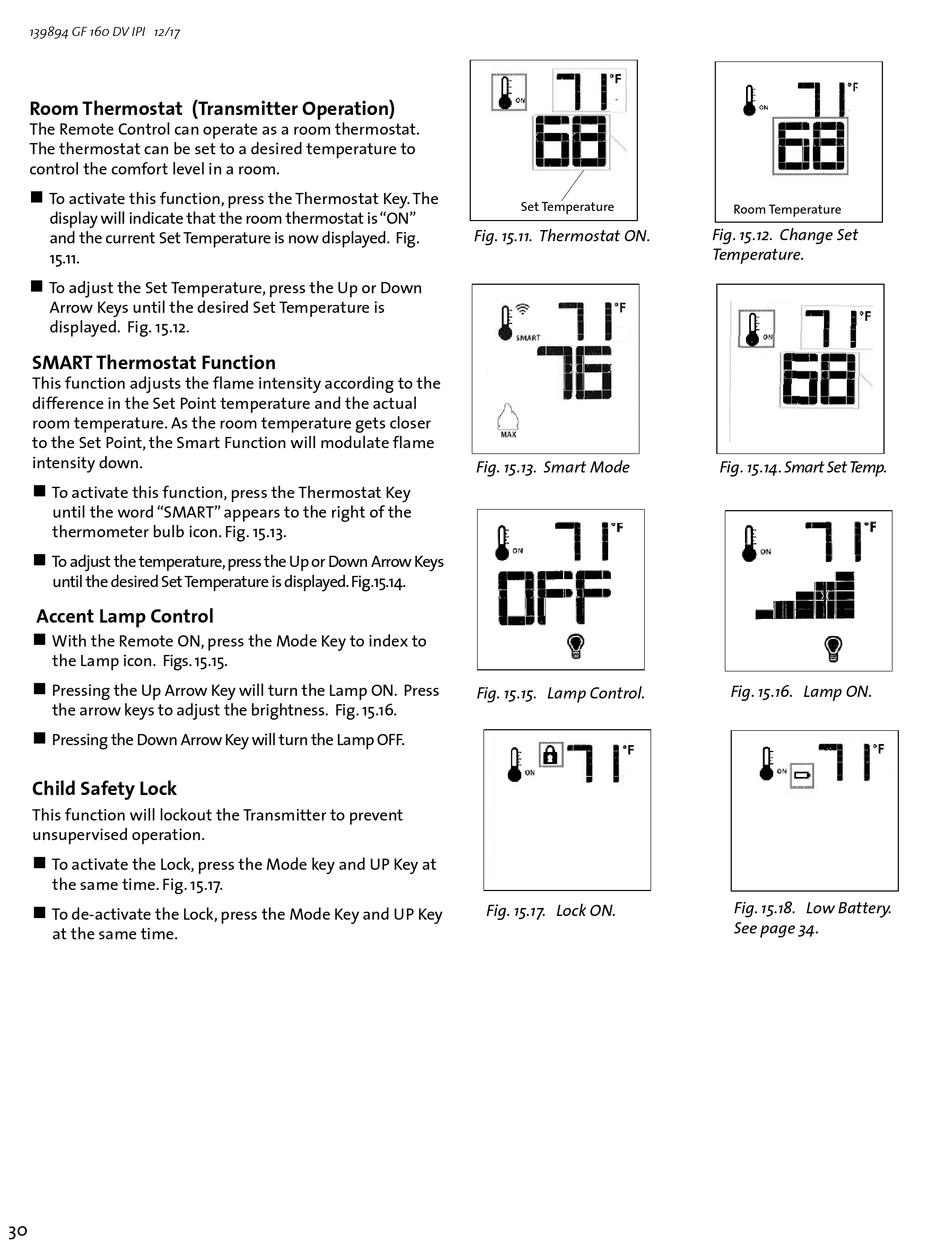

Jøtul GF 160 DV IPI Installation And Operation Instructions Manual page 30

139894 GF 160 DV IPI 12/17
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat.
The thermostat can be set to a desired temperature to
control the comfort level in a room.
To activate this function, press the Thermostat Key. The

display will indicate that the room thermostat is "ON"
and the current Set Temperature is now displayed. Fig.
15.11.
To adjust the Set Temperature, press the Up or Down

Arrow Keys until the desired Set Temperature is
displayed. Fig. 15.12.
SMART Thermostat Function
This function adjusts the flame intensity according to the
difference in the Set Point temperature and the actual
room temperature. As the room temperature gets closer
to the Set Point, the Smart Function will modulate flame
intensity down.
To activate this function, press the Thermostat Key

until the word "SMART" appears to the right of the
thermometer bulb icon. Fig. 15.13.
To adjust the temperature, press the Up or Down Arrow Keys

until the desired Set Temperature is displayed. Fig.15.14.
Accent Lamp Control
With the Remote ON, press the Mode Key to index to

the Lamp icon. Figs. 15.15.
Pressing the Up Arrow Key will turn the Lamp ON. Press

the arrow keys to adjust the brightness. Fig. 15.16.
Pressing the Down Arrow Key will turn the Lamp OFF.

Child Safety Lock
This function will lockout the Transmitter to prevent
unsupervised operation.
To activate the Lock, press the Mode key and UP Key at

the same time. Fig. 15.17.
To de-activate the Lock, press the Mode Key and UP Key

at the same time.
30
Set Temperature
Fig. 15.11. Thermostat ON.
Fig. 15.13. Smart Mode
Fig. 15.15. Lamp Control.
Fig. 15.17. Lock ON.
Room Temperature
Fig. 15.12. Change Set
Temperature.
Fig. 15.14. Smart Set Temp.
Fig. 15.16. Lamp ON.
Fig. 15.18. Low Battery.
See page 34.
