Bracket/upper case

Ptt unit
The components of clamp bracket and PTT unit are the same as 250A.
20.6 MPa, 210 kgf/cm , 2,988 psi
UP relief valve
12.3 MPa,
2
125 kgf/cm ,
1,784 psi
1-15
General information
Tilt cylinder
Impact relief valve
2
Trim
cylinder
Manual valve 20.6 MPa,
210 kgf/cm ,
2,988 psi
Main valve
Gear
pump

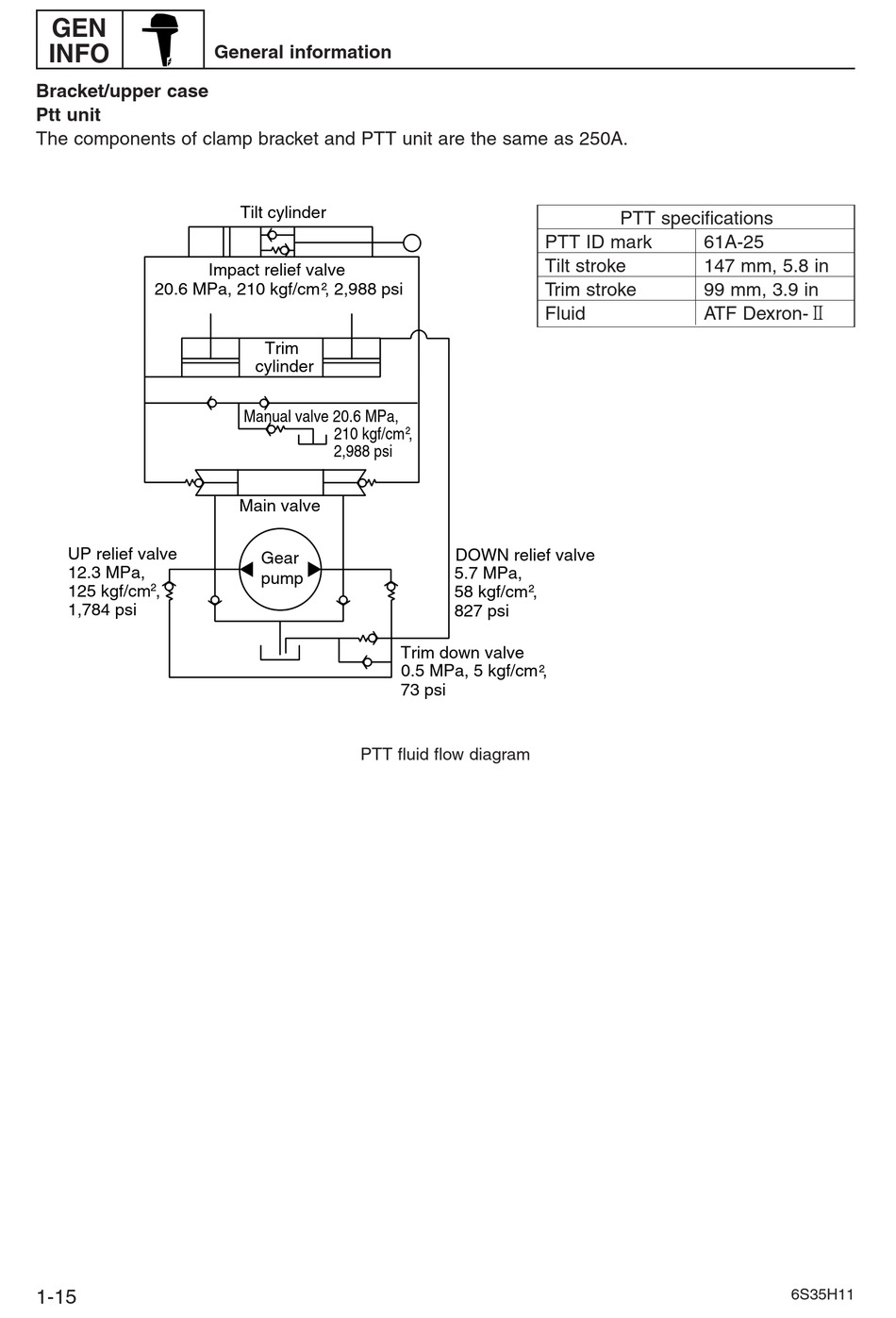

PTT fluid flow diagram
PTT ID mark
Tilt stroke
Trim stroke
Fluid
2
DOWN relief valve
5.7 MPa,
2
58 kgf/cm ,
827 psi
Trim down valve
0.5 MPa, 5 kgf/cm , 2
73 psi
PTT specifications
61A-25
147 mm, 5.8 in
99 mm, 3.9 in
ATF Dexron-2
6S35H11
