Removing The Fan Panel - Jenn-Air JBC7624BS Technical Education

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.

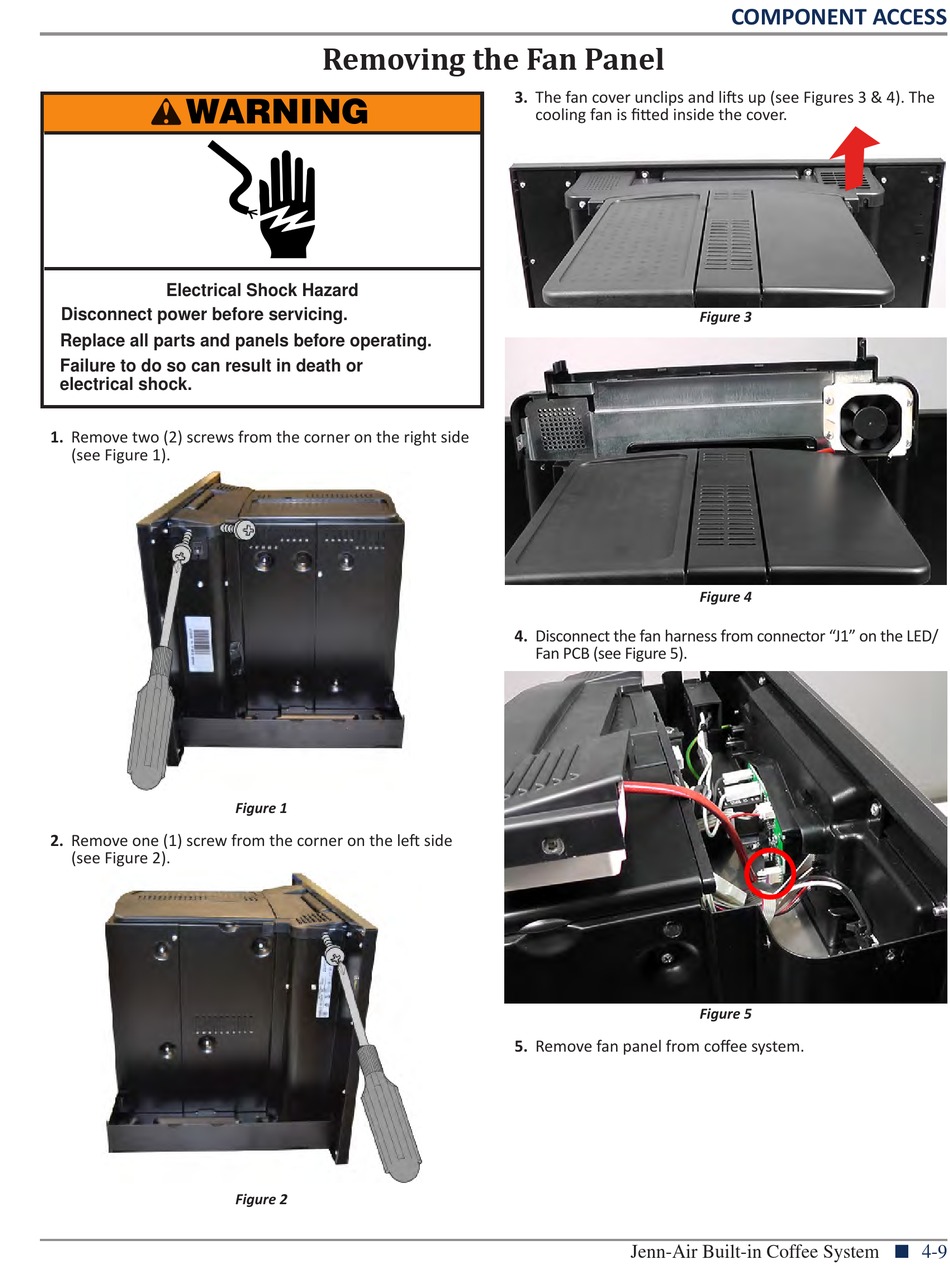

1. Remove two (2) screws from the corner on the right side
(see Figure 1).
2. Remove one (1) screw from the corner on the left side
(see Figure 2).

Removing the Fan Panel

Figure 1
Figure 2
3. The fan cover unclips and lifts up (see Figures 3 & 4). The
cooling fan is fitted inside the cover.
4. Disconnect the fan harness from connector "J1" on the LED/
Fan PCB (see Figure 5).
5. Remove fan panel from coffee system.
Jenn-Air Built-in Coffee System
COMPONENT ACCESS
Figure 3
Figure 4
Figure 5
4-9
