COMPONENT ACCESS

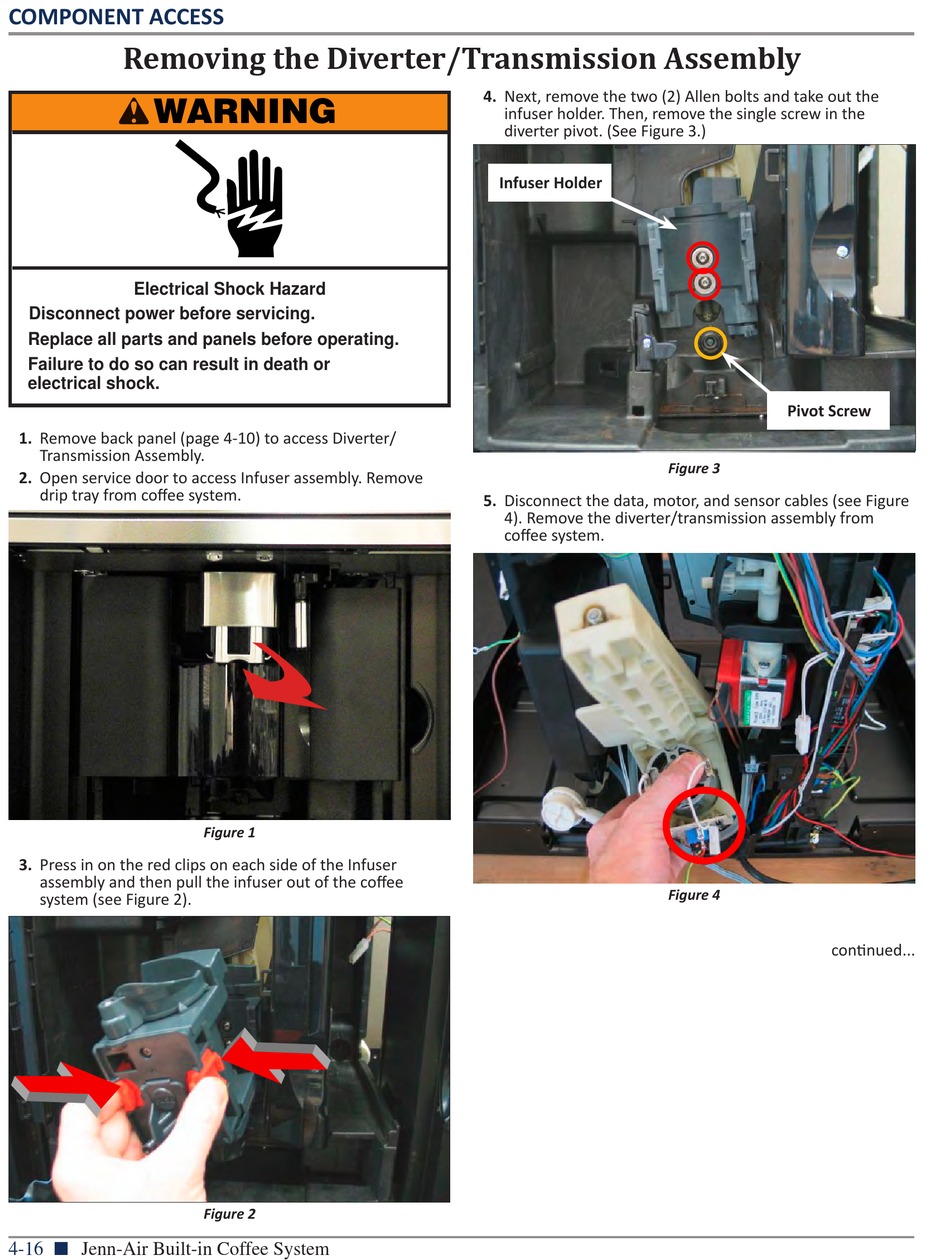

Removing the Diverter/Transmission Assembly

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.
1. Remove back panel (page 4-10) to access Diverter/
Transmission Assembly.
2. Open service door to access Infuser assembly. Remove
drip tray from coffee system.
3. Press in on the red clips on each side of the Infuser
assembly and then pull the infuser out of the coffee
system (see Figure 2).
4-16 Jenn-Air Built-in Coffee System
n
Figure 1
Figure 2
4. Next, remove the two (2) Allen bolts and take out the
infuser holder. Then, remove the single screw in the
diverter pivot. (See Figure 3.)
Infuser Holder
5. Disconnect the data, motor, and sensor cables (see Figure
4). Remove the diverter/transmission assembly from
coffee system.
Pivot Screw
Figure 3
Figure 4
continued...
