To replace the component, reverse the removal procedure.

PCIe transfer board

About this task
To remove the component:
Procedure
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis .
4. Remove the three-slot PCI riser cage assembly.
5. In a three-slot riser cage assembly, remove the riser cage bracket from the three-slot riser cage
assembly.
6. Remove all expansion boards from the riser cage assembly.
• Remove Accelerator 1 from the FlexibleLOM 2U node riser cage assembly
• Remove Accelerator 2 from the three-slot riser cage assembly
• Remove Accelerator 1 from the three-slot riser cage assembly
7. Disconnect all cables from the riser board.

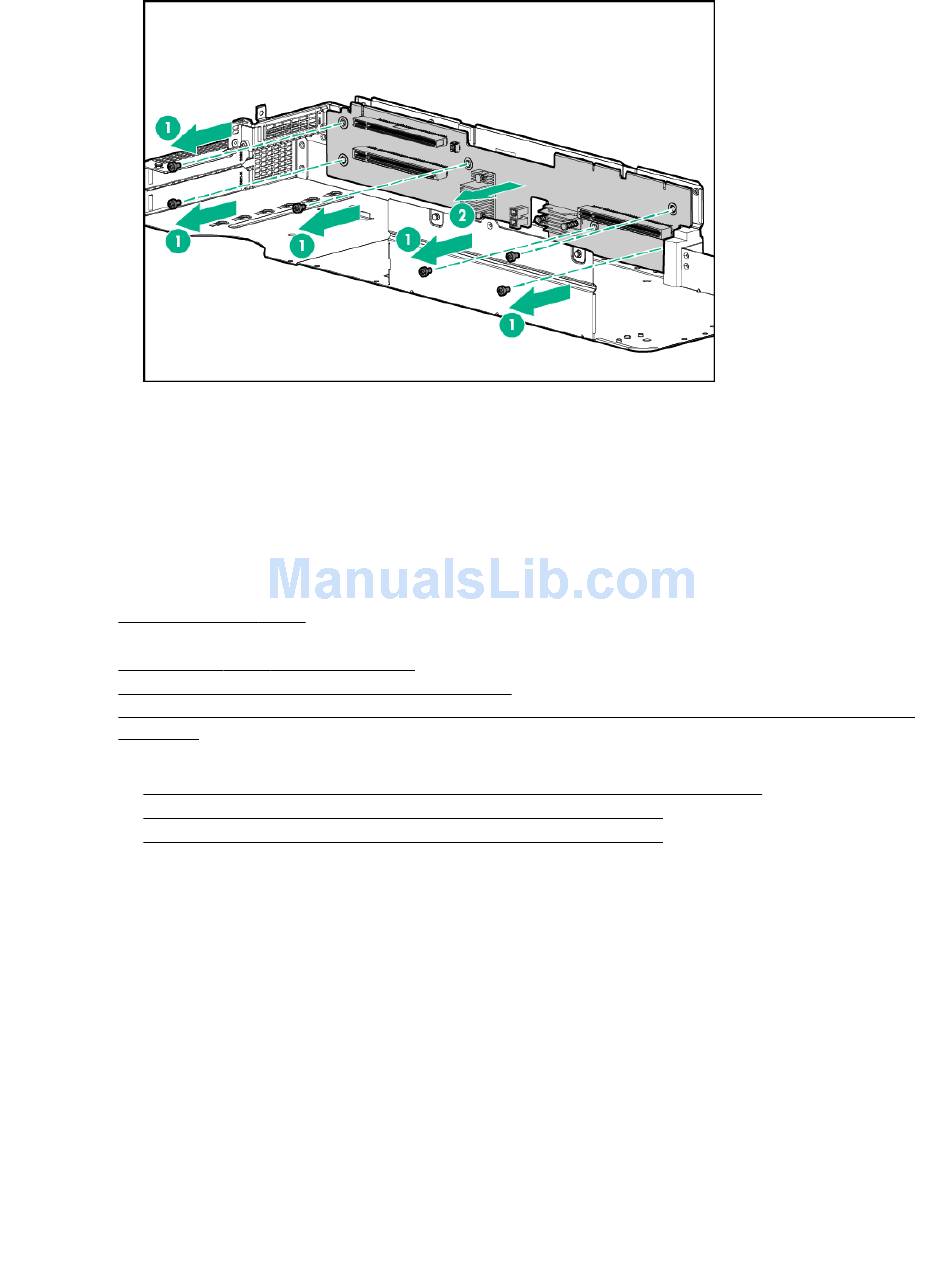

8. Remove the PCIe transfer board.
