Replacing Accelerator 1 In A Three-Slot Riser Cage Assembly - HP Apollo 2000 System Maintenance And Service Manual

Procedure
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis .
4. Place the node on a flat, level surface.
5. Remove the FlexibleLOM 2U node riser cage assembly.
6. Disconnect the accelerator power cable from the bayonet board.
7. Disconnect the accelerator power cable from Accelerator 1.
8. Remove Accelerator 1 from the FlexibleLOM 2U node riser cage assembly.

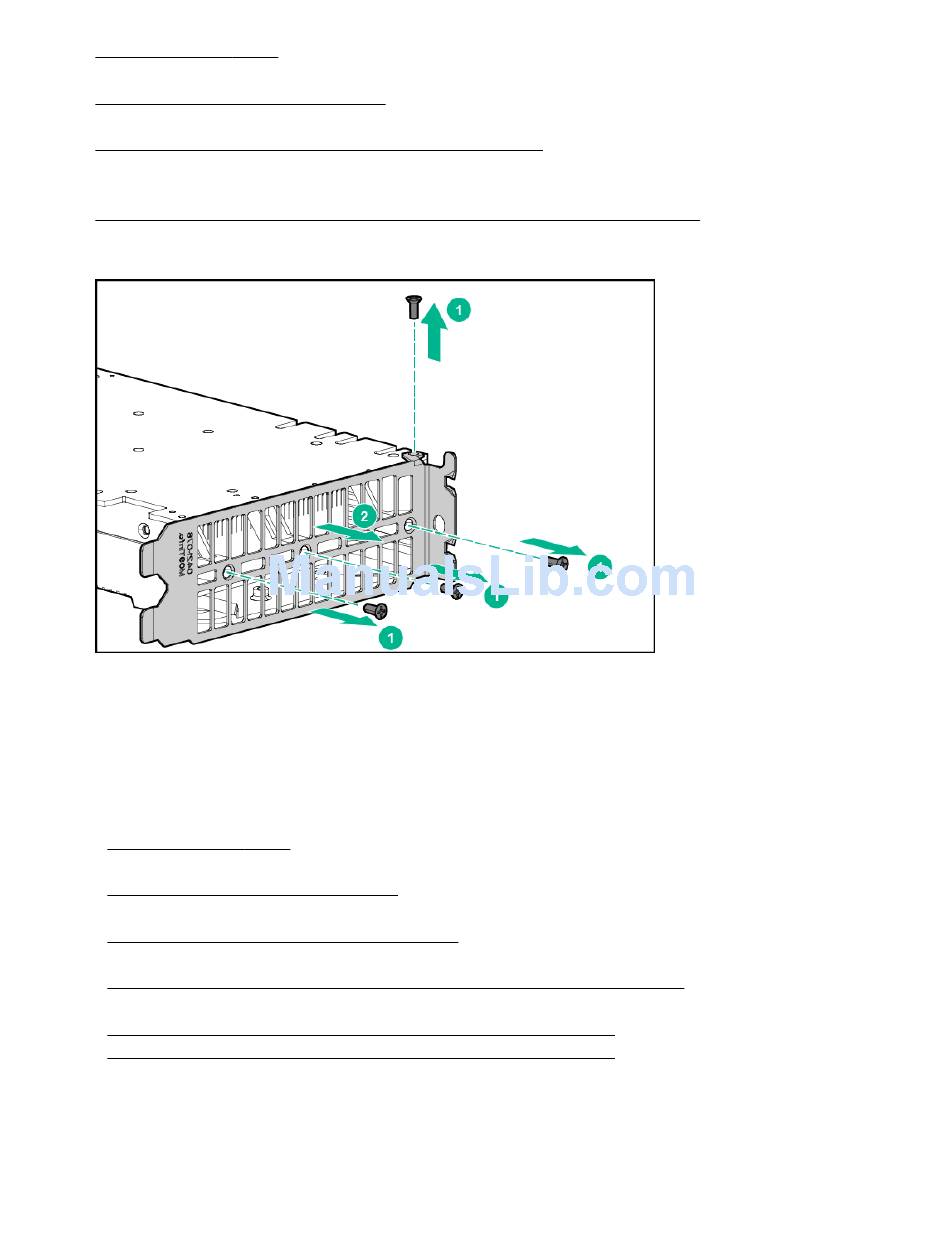

9. If replacing a NVIDIA Tesla K40 GPU, remove the front support bracket. Keep this bracket and install it
onto the new K40 GPU.
To replace the component, reverse the removal procedure.

Replacing Accelerator 1 in a three-slot riser cage assembly

About this task
Procedure
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis .
4. Place the node on a flat, level surface.
5. Remove the three-slot riser cage assembly.
6. Disconnect the accelerator power cable from the bayonet board.
7. Remove the riser cage bracket from the three-slot riser cage assembly.
8. Disconnect all cables from the accelerators.
9. Remove Accelerator 2 from the three-slot riser cage assembly.
10. Remove Accelerator 1 from the three-slot riser cage assembly.
To replace the component:
1. If replacing a NVIDIA Tesla K40 GPU, remove the front support bracket. Keep this bracket and install it
onto the new K40 GPU.
100 Replacing Accelerator 1 in a three-slot riser cage assembly
