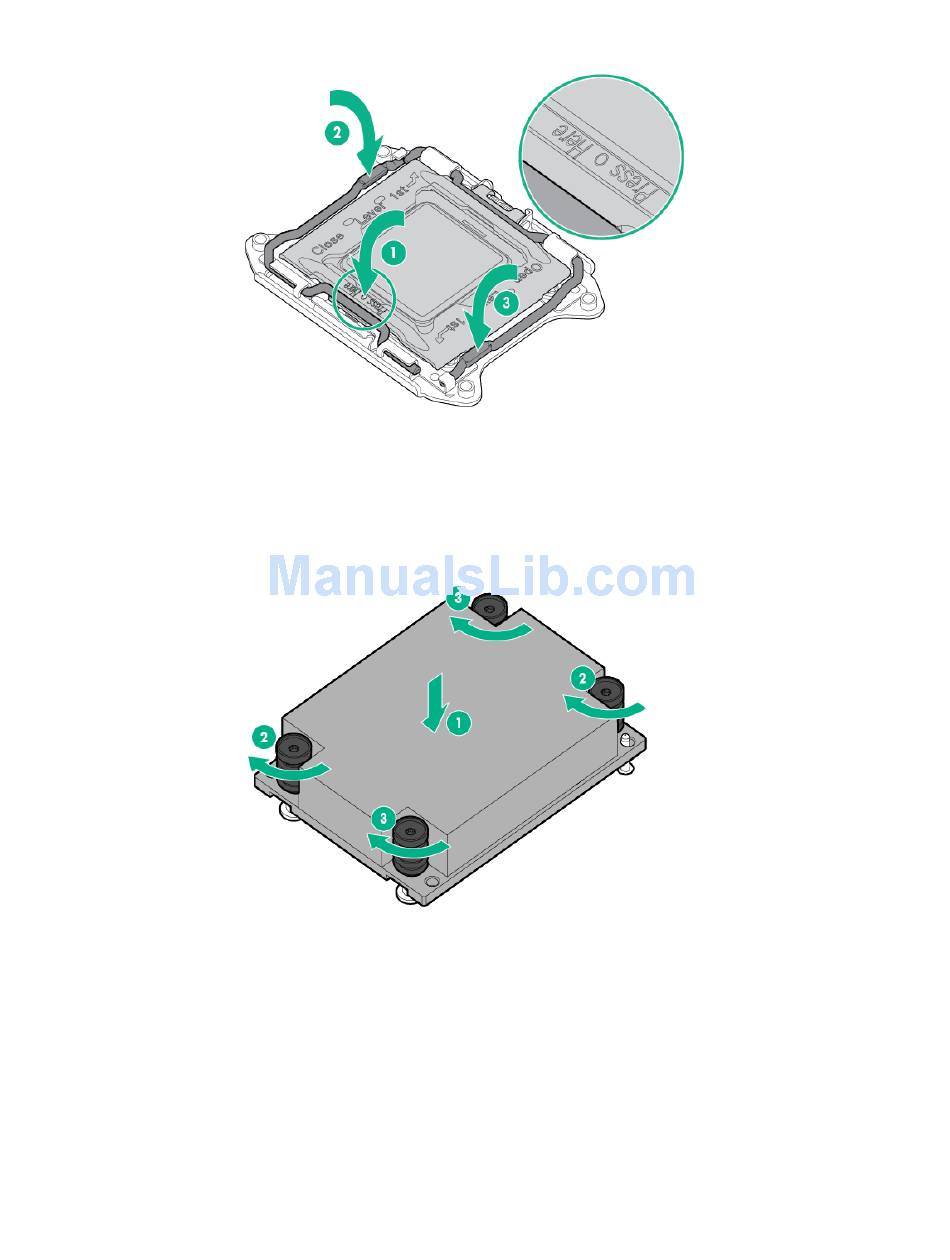

4. Press and hold the processor retaining bracket in place, and then close each processor locking lever.
Press only in the area indicated on the processor retaining bracket.
5. Install the heatsink:
a. Position the heatsink on the processor backplate.
b. Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws.
c. Finish the installation by completely tightening the screws in the same sequence.
6. Install all components removed from the failed system board.
7. Install the air baffle.
8. Install the bayonet board assembly into the node.
9. If any SATA or Mini-SAS cables are installed, secure the cables under the thin plastic covers along the
side of the node tray.
10. Connect all cables disconnected from the failed system board.
11. Install any removed PCI riser cage assemblies and rear I/O blanks.
12. Install the node into the chassis.
13. Connect all peripheral cables to the nodes.
14. Press the Power On/Standby button.
