• AMD FirePro S7150 GPU

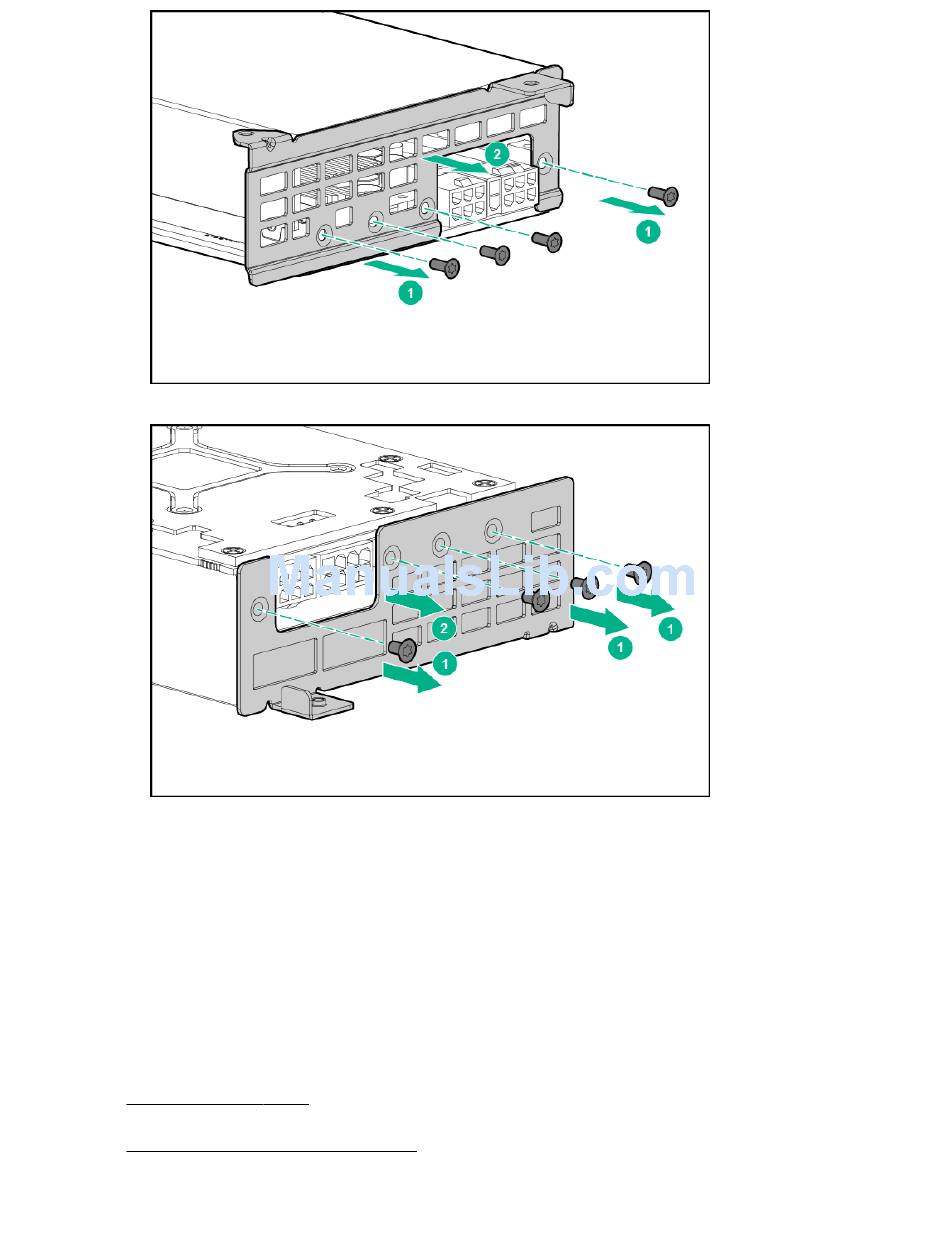

3. Remove the existing rear support bracket from the new accelerator. Keep this bracket to install it onto the
failed accelerator.
4. Install the rear support bracket for Accelerator 1 onto the new accelerator.
5. If replacing a NVIDIA Tesla K40 GPU, install the front support bracket for Accelerator 1 onto the new K40
GPU.
To replace the component, reverse the removal procedure.

Replacing Accelerator 2 in a three-slot riser cage assembly

About this task
Procedure
1. Power down the node .
2. Disconnect all peripheral cables from the node .
3. Remove the node from the chassis .
4. Place the node on a flat, level surface.
Replacing Accelerator 2 in a three-slot riser cage assembly 103
