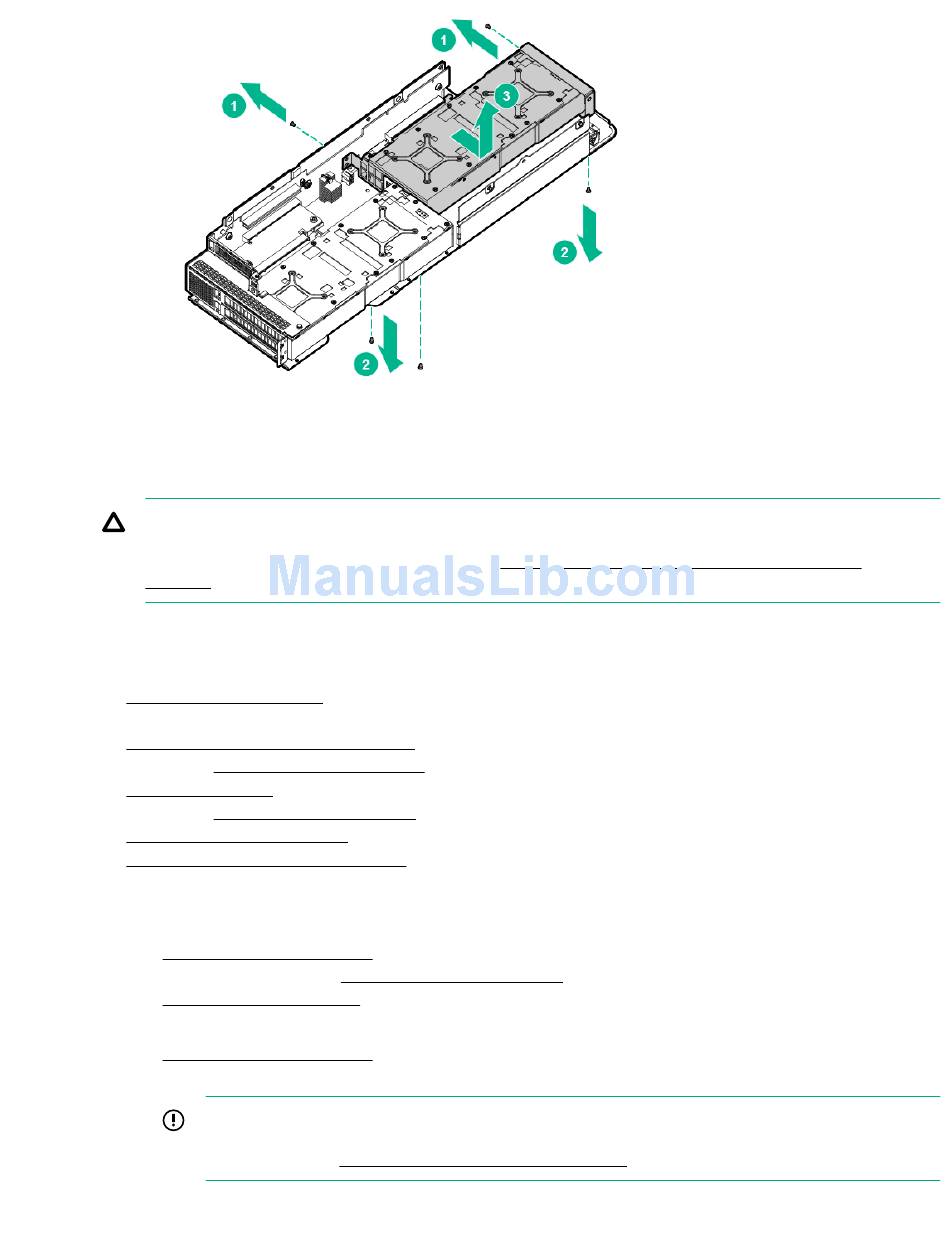

Chassis assembly

About this task
CAUTION:
If replacing the HPE Apollo r2800 Chassis, verify the original drive bay mapping configuration to prevent
possible data loss. For more information, see "Drive bay mapping for the HPE Apollo r2800
Chassis."
To remove the component:
Procedure
1. Power down the system.
2. Disconnect all peripheral cables from the nodes and chassis.
3. Remove all nodes from the chassis.
4. If installed, remove the security bezel.
5. Remove all drives.
6. If installed, remove the RCM module.
7. Remove all power supplies.
8. Remove the chassis from the rack.
To replace the component:
1. Remove the Smart Storage Battery and fan modules from the failed chassis:
a. Remove the access panel.
b. If installed, remove the HPE Smart Storage Battery.
c. Remove all fan modules.
2. Install the Smart Storage Battery and fan modules into the new chassis:
a. Remove the access panel.
b. Install the HPE Smart Storage Battery into the chassis.
IMPORTANT:
Ensure that the battery cable is connected to the correct connector. For detailed cabling
information, see "HPE Smart Storage Battery cabling."
