Chapter 1 — Using the PB51 Mobile Label and Receipt Printer

Understanding the Control Panel

The PB51 control panel contains four buttons, a liquid crystal display
(LCD), and one LED indicator. Use the four buttons
menu system and perform functions on the PB51 print er. See the
following tables to understand the buttons, the menu system, and
what the LED means.
Standby button

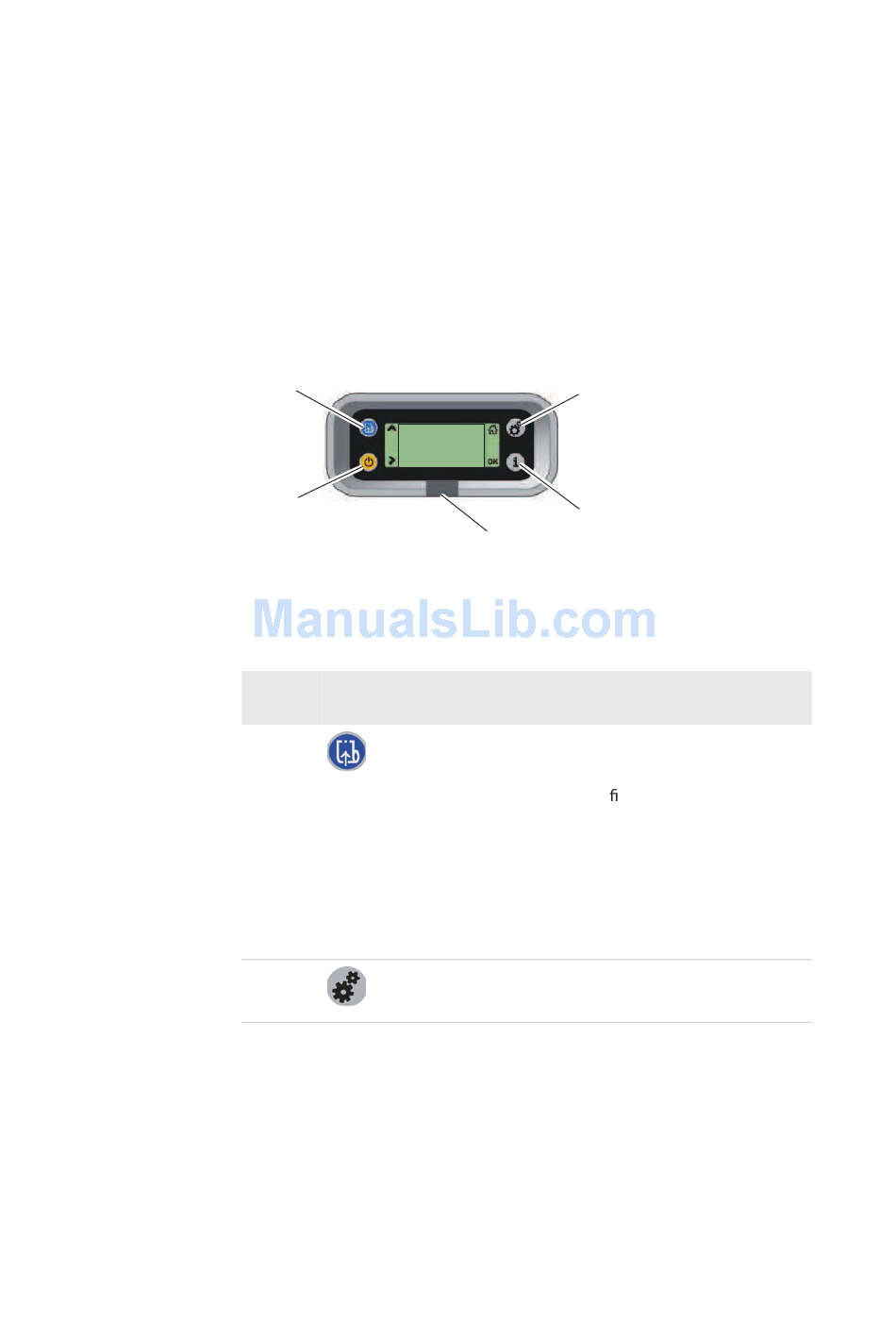

PB51 Control Panel: Use this illustration to familiarize yourself with the
buttons and lights on the PB51.
Understanding How to Use the PB51 Buttons
Button
Name
Feed
Setup
4
Feed button
SETUP:
SER-COM
Button Function
Press to advance label or receipt paper. The am ount of
media that feeds is dependent on the type of media you
are using. It will advance by 5 mm (0.2 inch), feed out
an entire label, or feed a con gured length of media
based on your media and settings.
If you hold the button down for longer than two
seconds, the printer performs a testfeed and calibrates
the media.
If the printer is printing, pressing this button causes
the printer to pause. Press the button again to resume
printing.
Press to display the Setup menu.
Setup button
Info button
Ready-to-Work
indicator
