Roland DWP-80S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

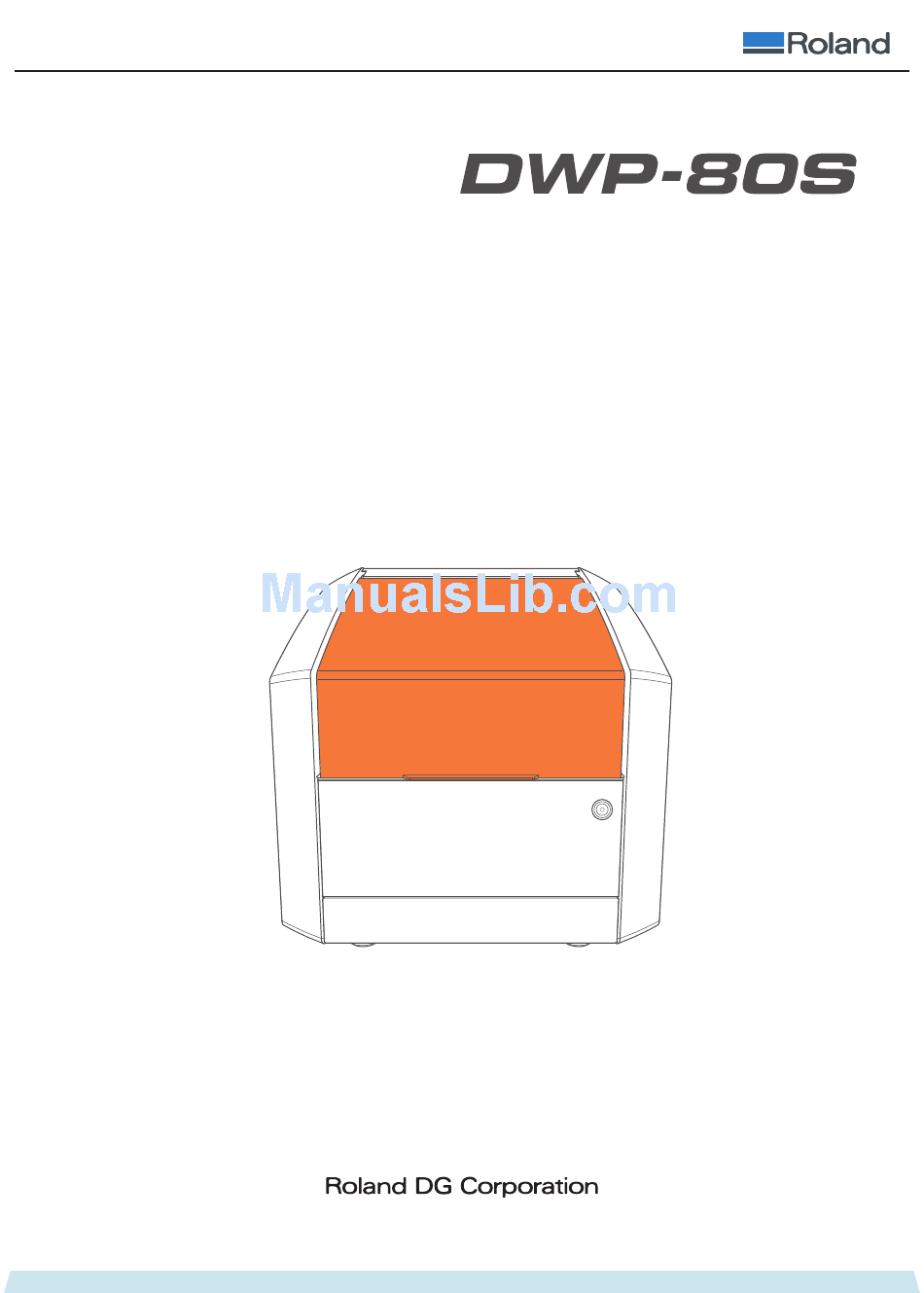

User's Manual
Roland DG Corporation has developed a special website introducing dental solutions.
For the latest information regarding this machine (including manuals), see Roland DG
Corporation's special Easy Shape website (http://www.rolandeasyshape.com).

Advertisement

Table of Contents
loading

Related Manuals for Roland DWP-80S

Summary of Contents for Roland DWP-80S

  • Page 1 User's Manual Roland DG Corporation has developed a special website introducing dental solutions. For the latest information regarding this machine (including manuals), see Roland DG Corporation’s special Easy Shape website (http://www.rolandeasyshape.com).

  • Page 2: Table Of Contents

    Contents Contents................................2 Chapter 1 Getting Started ....................4 Features.of.This.Machine...........................5 Layered Projection Technology Printing.....................5 Advantages of Using Layer Exposure Method to Print Objects One Layer at a Time ....5 Part.Names................................6 Modeling Machine ...............................6 Quick Denta ................................8 Basic.Operation..............................10 Start-up ..................................
  • Page 3 • Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any article made using this product.

  • Page 4: Chapter 1 Getting Started

    Chapter 1 Getting Started Features of This Machine ........................5 Layered Projection Technology Printing .................5 Advantages of Using Layer Exposure Method to Print Objects One Layer at a Time ..5 Part Names .............................6 Modeling Machine ........................6 Quick Denta ..........................8 Basic Operation ..........................10 Start-up ............................

  • Page 5: Features.of.this.machine

    Features of This Machine Layered Projection Technology Printing The DWP-80S is a 3D printer that uses layered projection technology. This machine uses photo-curable resin (referred to simply as "resin" in this manual), a fluid that hardens (cures) when exposed to light (UV rays), and a projector with a UV LED light source to print an object based on 3D data.

  • Page 6: Part.names

    Part Names Modeling Machine Exterior Name Explanation Before starting operation and during operation, close the front cover. Front cover The front cover is orange to make it difficult for UV rays to pass through. Power button (P.10) The storage can be used to store the level gauge Storage and wrenches.
  • Page 7 Part Names Inside the Front Cover Name Explanation Z-axis unit (inside red box) The Z-axis unit moves the printing platform. The printing platform retaining screw secures the Printing platform retaining screw printing platform. When setting the initial printing height (Z0), loosen the Z0 adjustment screw Z0 adjustment screw.

  • Page 8: Quick Denta

    Part Names Quick Denta This section provides an overview of the Quick Denta screens. For details, see the Quick Denta help. Displays the file name and the resin model number. The title bar Title bar contains buttons to maximize or minimize the screen, to return the screen to its original size, and to close the screen.
  • Page 9 Part Names How to View Help 1 Click (lower right part of the screen) in the tool bar. How to View Help 2 Procedure Click Click [Help]. Chapter 1 Getting Started...

  • Page 10: Basic.operation

    Click the [Quick Denta] icon under [Quick Denta]. Windows 8.1 On the [Start] screen, click On the [Apps] screen, click [Quick Denta]. Windows 7 Click [Start] Click the [All Programs] (or [Programs]). Click the [Roland DWP-80S] folder, and then click [Quick Denta]. Chapter 1 Getting Started...

  • Page 11: Status Indicated By Led Lamp On Power Button

    • The liquid material vat is not installed. A fatal error has occurred. Switch off the power before performing the operation High-speed again. Contact your authorized Roland DG Corporation dealer if the same flashing symptoms occur again. The power is off.
  • Page 12 Basic Operation Configure each of the following settings. Item Settings Setting method [Appearance and Personalization] > [Display] > [Adjust screen resolution] (or [Display] > [Adjust screen resolution]) Extend these Multiple displays displays Set the "Multiple displays" setting to "Extend these displays." [Hardware and Sound] >...

  • Page 13: Shutdown

    Basic Operation Shutdown Procedure Click [×] in the right corner of the title bar. Quick Denta will be closed. M E M O If you have not saved the changes to the file you are currently editing, a window prompting you to save the changes appears.

  • Page 14: Chapter 2 Output

    Chapter 2 Output Getting Started ..........................15 Output Procedure ........................ 15 Importable File Formats ..................... 15 1. Preparing the Machine ......................16 Step 1: Check that the Liquid Material Vat is Not Dirty ........... 16 Step 2: Install the Liquid Material Vat in the Machine ..........17 Step 3: Verify that the Printing Platform is Not Dirty ..........

  • Page 15: Getting.started

    Getting Started Output Procedure 1. Preparing the Machine (P.16) Prepare the liquid material vat and determine the initial printing height. 2. Create the Print File in Quick Denta (P.23) Import the 3D model data into Quick Denta to create a printing file. 3.

  • Page 16: 1. Preparing The Machine

    1. Preparing the Machine WARNING Be sure to perform operations as specified by the instructions, and never touch any area not specified in the instructions. Sudden movement of the machine may cause injury or burns. WARNING Do not store photo-curable resin in any of the following locations: • Any location exposed to open flame • Any location where high temperature may occur • Near bleach or any other such oxidizing agent or explosive material •...

  • Page 17: Step 2: Install The Liquid Material Vat In The Machine

    I m p o r t a n t Use different liquid material vats depending on the type of resin being used Contact your authorized Roland DG Corp. dealer or visit the Roland DG Corp. website (http://www.rolanddg.com/) to purchase liquid material vats.
  • Page 18 1. Preparing the Machine Fully tighten the liquid material vat retaining screws. When doing so, verify that the liquid material vat stopper is resting on the edge of the liquid material vat. Liquid material vat stopper M E M O In the next procedure, the liquid material vat retaining screws are only loosened by a fixed amount. For this reason, the liquid material vat retaining screws are tightened securely at this stage.
  • Page 19 1. Preparing the Machine Push the liquid material vat in all the way. I m p o rt an t When pushing in the liquid material vat, take care not to get fingers caught between the liquid material vat holder and the liquid material vat. Pressing the liquid material vat lowers the shutter lever toward the back, opening the shutter of the irra- diation unit (under the liquid material vat).

  • Page 20: Step 3: Verify That The Printing Platform Is Not Dirty

    1. Preparing the Machine Fully tighten the liquid material vat retaining screws. Step 3: Verify that the Printing Platform is Not Dirty Before starting printing, check that there is no dirt or foreign matter on the printing platform (such as fragments remaining from the last printing operation). If dirt or foreign matter is present, wash the printing platform. "...
  • Page 21 1. Preparing the Machine I m p o r t a n t Always loosen the Z0 adjustment screws. If you proceed to the next step without loosening the Z0 retaining screws, a large load will be applied to the liquid material vat, printing platform, and Z-axis unit, which may result in damage.
  • Page 22 1. Preparing the Machine Close the front cover. Click [ ] on the [Print] tab in Quick Denta. The printing platform moves to the highest position. Chapter 2 Output...

  • Page 23: 2. Create The Print File In Quick Denta

    2. Create the Print File in Quick Denta Step 1: Prepare the 3D Model Data Using commercially available 3D CAD software or a similar program, create 3D model data for printing. Quick Denta can be used to import the following two file types. • STL format: This is one format of 3D model data that can be created using commercially available 3D CAD software.
  • Page 24 2. Create the Print File in Quick Denta Click [Input] or [Open]. [Import] button • Use this when importing STL or Quick Denta format files. • You can select multiple files at the same time. • If a file has already been imported and you use this button to import a different file, you can add an object to the open file. • If you have imported a Quick Denta format file, the parameters set with Quick Denta (such as the layer thickness) will not be included.
  • Page 25 2. Create the Print File in Quick Denta Determine the layout and generate supports. M E M O Supports are reinforcing members added to data that support the job. Supports can prevent the job from falling into the liquid material vat or deforming due to the effects of gravity. Quick Denta can automatically add supports to objects.
  • Page 26 2. Create the Print File in Quick Denta Recommended Layout A r ran g i n g mu lti pl e o b jec ts ve r tical ly A vertically positioned object will require fewer supports including the fitting surface, making it possible to achieve higher quality printing.
  • Page 27 2. Create the Print File in Quick Denta H o ri z o n t al p os itio n in g When outputting only one object, horizontal positioning allows for shorter printing times. However, printing quality may be lower compared with the recommended layout (vertical). Click [Generate Supports].

  • Page 28: Printing

    3. Printing Step 1: Add Resin to the Liquid Material Vat Check the preview and the estimated job volume for the resin. Click Click [Display Preview]. Finishing for a job can be confirmed in advance. A message notifying the user that the object extends beyond the work area, or that there is an issue with the printing data, will be displayed. For details on the message, refer to the Quick Denta help.
  • Page 29 Adjust the height of the printing machine legs before use. Adjust the legs so that the resin will collect on the printing platform side (the back of the machine) when the amount of resin in the liquid material vat gets low. For details, refer to the “DWP-80S Setup Guide." Wear rubber gloves (included or commercially available) and protective eyewear (commercially available).

  • Page 30: Step 2: Send The Print Data

    3. Printing Step 2: Send the Print Data CAUTION Under no circumstances should you move the Z-axis unit with your hands. Doing so may cause a breakdown. CAUTION When handling resin, wear rubber gloves and protective eyewear. Do not allow resin to come into contact with the skin or eyes. Procedure Complete the pre-print confirmations. Confirm the following points before printing. If the following points are not confirmed, output may stop, causing the printing to fail.

  • Page 31: Step 3: Remove The Job

    3. Printing Step 3: Remove the Job CAUTION Caution: blades and other sharp components. Be careful not to touch the tool tip or any other sharp edges. Doing so may cause injury. Procedure When a message saying "Printing has finished." appears, click [OK]. Open the front cover. Loosen the printing platform retaining screw. Loosen the retaining screw until the printing platform drops slightly. Pull out the printing platform. Chapter 2 Output...
  • Page 32 3. Printing Put the printing platform in the work tray. Remove the job using the included metallic spatula. Take extra care not to damage or break the job when removing it. Printing platform Work tray Metallic spatula Do not leave resin in the liquid material vat after printing. Be sure to clean the liquid material vat, printing platform, and work tray. " P. 36 "Maintenance after Use"(P. 36 "1. Wash the printing platform.", P. 39 "2. Wash the liquid material vat.", “P. 40 "3.

  • Page 33: Step 4: Post-Print Processing

    • Use an ultrasonic cleaner that produces a frequency of 40 to 45 kHz. • If the ethanol in the washing container changes color, replace it and wash the job again. • Contact your authorized Roland DG Corp. dealer or visit the Roland DG Corp. website (http://www.rolanddg. com/) to purchase an ultrasonic cleaner.
  • Page 34 3. Printing Give the job a rough washing in the ultrasonic cleaner (3 minutes). Wash the job for finishing. Stop the ultrasonic cleaner and move the job to the finishing washing container. Put ethanol in the finishing washing container. Insert ethanol until the job is entirely submerged. Put water into the ultrasonic cleaner container and partially submerge the finishing washing container in the water. Wash the job in the ultrasonic cleaner for finishing (2 minutes). Stop the ultrasonic cleaner and remove the job. Wipe any ethanol off the job. I m p o r t a n t • Once washing is complete, remove the job from the washing container immediately. Allowing the object to soak for more than 5 minutes in the ethanol may cause the quality of the object to deteriorate.
  • Page 35 This procedure is known as "post cure." Cure the printed job in the dedicated post- curing device for at least 15 minutes. Contact your authorized Roland DG Corp. dealer or visit the Roland DG Corp. website (http://www.rolanddg.com/) to purchase dedicated post-curing devices.

  • Page 36: Maintenance After Use

    3. Printing Maintenance after Use After use, be sure to clean the liquid material vat, the printing platform, and the work tray. WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. WARNING Be sure to perform operations as specified by the instructions, and never touch any area not specified in the instructions. Sudden movement of the machine may cause injury or burns. WARNING Never place a photo-curable resin container in fire.
  • Page 37 3. Printing Pull out the printing platform. Soak a rag in ethanol and wipe any resin from the surface of the printing platform. Use the included metallic spatula to scrape off any cured resin that has stuck to the printing platform. Remove the printing platform plate. Hexagonal wrench Chapter 2 Output...
  • Page 38 3. Printing Soak a rag or other cloth in ethanol and wipe away any remaining resin. Be sure to remove all the resin that has adhered to the printing platform. Allowing the resin to remain can cause the printing platform to deteriorate and printing to fail. Attach the printing platform plate. H e x a g o n a l wrench Return the printing platform to its original position.
  • Page 39 3. Printing Wash the liquid material vat. Loosen the liquid material vat retaining screws. Pull up the liquid material vat stopper. The liquid material vat pops out toward you slightly. Remove the liquid material vat. M EM O • Wash the printing platform before removing the liquid material vat (P. 36 "1. Wash the printing platform."). If the liquid material vat is removed first, resin stuck to the printing platform may fall off and dirty the machine.
  • Page 40 3. Printing Transfer the resin remaining in the liquid material vat to the light-shielding bottle. To remove debris created during printing, strain the resin and then move the resin to the light-shielding bottle. Resin transferred to the light-shielding bottle can be reused (so long as the expiration date has not passed). Liquid material vat Plastic spatula Strainer...

  • Page 41: Use.advanced/Useful.functions

    Use Advanced/Useful Functions Print Multiple Objects Simultaneously Positioning multiple jobs so that they fit in the machine's work area lets you print them simultaneously. The maximum printable size (work area) is 80 (W) x 80 (D) x 80 (H) mm (3.15 (W) x 3.15 (D) x 3.15 (H) in.). "...

  • Page 42: Correct Errors When Importing Stl Data

    Use Advanced/Useful Functions Correct Errors when Importing STL Data When importing an STL file, errors in the imported object can be repaired (healing). If a file contains an error, that file cannot be used for printing. Procedure Click Click [Settings]. Click [Preferences]. The [Preferences] dialog box appears. Click the [Movement] tab.

  • Page 43: Fine-Tuning The Print Conditions

    Use Advanced/Useful Functions Fine-tuning the Print Conditions In most cases it will not be necessary to change these settings in order to print. Procedure Click Click [Advanced Print Conditions]. The [Advanced Print Conditions] dialog box appears. Correct for the shrinkage factor (magnification correction amount in the XY direction during exposure).

  • Page 44: Check The Actual Printing Status

    Use Advanced/Useful Functions Check the Actual Printing Status In the actual work area, the object is inverted as shown in the following figure. You can use the [View Printing Position] function to check the printing orientation (the inversion of the object) prior to actually printing. [View Printing Position] You can switch the display between [Printing position] and [Printing position + platform].

  • Page 45: Showing The Estimated Cost

    Use Advanced/Useful Functions Showing the Estimated Cost This machine is capable of calculating the estimated cost according to the amount of resin used in the estimate. To calculate the estimated cost, the standard unit cost must be set in advance. Procedure Click Click [Settings]. Click [Preferences]. The [Preferences] dialog box appears.

  • Page 46: Add/Delete Supports

    Use Advanced/Useful Functions Input the cost per gram in [Cost]. Clicking on the tab will bring up the “Estimated cost.” Add/Delete Supports M E M O Click and zoom in or out on the object (using the mouse wheel), or click and move so that the support position is easily seen.
  • Page 47 Use Advanced/Useful Functions Click , and then click the location where you want to add a support. The spot you clicked appears as shown in the drawing below. Click [Update supports]. A new support has been added. If it is not possible to attach the support, it appears as shown in the drawing below. Click [Check supports].
  • Page 48 Use Advanced/Useful Functions M E M O It is recommended that you delete parts that look like . Supports that look like are important, and it is recommended that you do not delete them. Click [Update supports]. The selected supports have been deleted. Click [Check supports].

  • Page 49: Determine The Angle When Importing Stl Files

    Use Advanced/Useful Functions Determine the Angle when Importing STL Files Determining the rotation angle when importing an STL file beforehand eliminates the need to adjust the angle upon every import. The settings can be configured per application. Procedure Click Click [Settings]. Click [Settings by Application]. The [Settings by Application] dialog box appears. Click the [Movement] tab.

  • Page 50: Align Object To Platform

    Use Advanced/Useful Functions Align Object to Platform The settings can be configured so that objects align perfectly with the platform. Procedure Click Click [Align to Platform]. The height from the bottom surface of the platform to the object will be set to “0.” Click [Align to Platform] again to set the height to the previous setting. The previously set height is the height set under [Object placement height] in the [Settings by Application] dialog box.

  • Page 51: Chapter 3 Maintenance

    Chapter 3 Maintenance Warnings and Cautions for Maintenance ................52 Periodic Maintenance ........................53 Check That the Liquid Material Vat Is Not Cloudy............. 53 Replace Consumable Parts ......................54 Replace Liquid Material Vat ....................54 Replace the Projector ......................54...

  • Page 52: Warnings.and.cautions.for.maintenance

    Warnings and Cautions for Maintenance WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. WARNING Be sure to perform operations as specified by the instructions, and never touch any area not specified in the instructions. Sudden movement of the machine may cause injury or burns. WARNING Never place a photo-curable resin container in fire. Resin may flow out, catch fire, and spread fire to other nearby objects. WARNING Never use gasoline, thinner, or any other flammable material.

  • Page 53: Periodic.maintenance

    Periodic Maintenance Check That the Liquid Material Vat Is Not Cloudy The printing range (work area) uses the rear side of the liquid material vat. After the machine has been used for a while, the surface of the liquid material vat turns cloudy white. When the liquid material vat gets too cloudy, printing quality drops and the job may stick to the liquid material vat.

  • Page 54: Replace.consumable.parts

    When a fixed usage time is exceeded, a message is displayed in Quick Denta. In such cases, it is recommended that the projector be replaced as soon as possible. Contact your authorized Roland DG Corp. dealer or visit the Roland DG Corp. website (http://www.rolanddg.com/).

  • Page 55: Chapter 4 Appendix

    Driver for the Projector Does Not Operate Correctly ..........68 Uninstalling the Driver for the Projector ..............70 Correct Installation of the DWP-80S Driver Is Impossible (Listed as “Unspecified”) ..70 Checking the Quick Denta Version ................72 When Moving the Machine ......................73 Main Specifications ..........................

  • Page 56: Troubleshooting

    Troubleshooting The Machine Doesn't Work Symptom Points to check Action Refer to Is the machine turned Turn on the machine. P.10 Has the connector Connect the cable. Setup Guide cable come loose? The machine does not The computer was unable to output the print file obtain the disk space required Does the computer...
  • Page 57 Troubleshooting Symptom Points to check Action Refer to Part of the job on the platform side is missing Are there supports Increase the number of attached around the P.46 supports. missing part? Part of the job is missing along the vertical edge of the work area Areas of the object that extend outside the work area will not...
  • Page 58 Troubleshooting Symptom Points to check Action Refer to Depending on the computer’s display settings, file output Are the computer's may stop, causing printing to There is no problem with display settings fail. P.11 the file in the preview suitable for the Configure the computer's display, but the job is machine?

  • Page 59: Installing The Dwp-80S Driver Separately

    [Allow] or [Yes], and then continue with the installation. The setup menu screen appears automatically. Click [Custom Install]. Click [Install] for the "DWP-80S Driver." Click [Install], select "Roland DWP-80S" for the model name and "USB" for the port, and then click [Start]. Chapter 4 Appendix...

  • Page 60: Installing The Projector Driver Separately

    When the following window appears, click [Finish]. Connect the printer to the computer using the USB cable. The DWP-80S driver installation begins. From [Control Panel], click [View devices and printers]. When the machine appears under [Printers and Faxes], installation is complete. Do not remove the USB cable until installation is complete.
  • Page 61 Troubleshooting Click [Custom Install]. Click [Install] for the "DisplayLink Driver." If the following window appears, click [Install]. Installation of the driver for the projector begins. Chapter 4 Appendix...
  • Page 62 Troubleshooting If the following window appears, turn on the machine and connect the machine to the computer with the USB cable. The display driver installation begins. During installation, several windows similar to the following will appear showing the installation progress. The computer’s display resolution will change during the process.
  • Page 63 Troubleshooting Click [Devices]. Click [Connected devices] and verify that “PJ526ABRL” is listed twice under “Other devices.” If [PJ526ABRL] is not listed twice, refer to the following. " P.68 "Driver for the Projector Does Not Operate Correctly" Windows 8.1 and 7 Verify that “PJ526ABRL”...

  • Page 64: Installing Quick Denta Or The Manuals Separately

    Log on to Windows as the computer's administrator (or as an "Administrators" account). Insert the Roland DG Software Package CD into the CD-ROM drive of the computer. When the automatic playback window appears, click [Run menu.exe]. If a "User Account Control"...
  • Page 65 Click [Custom Install]. Click [Install] for “QUICK DENTA” or the “DWP-80S Manuals.” When the following window appears, click [Next]. Installation of Quick Denta or the DWP-80S manuals begins. Follow the on-screen explanations to proceed with the installation. Chapter 4 Appendix...

  • Page 66: Dwp-80S Driver Installation Is Impossible

    Troubleshooting DWP-80S Driver Installation Is Impossible If a wizard does not appear even though you have connected the USB cable, do the following: Windows 10 Windows 8.1 Windows 7 Connect the machine to the computer with the USB cable and turn on the machine.

  • Page 67: Uninstalling The Dwp-80S Driver

    Windows 10 Windows 8.1 Windows 7 Detach the USB cable connected to the printer, and restart Windows. P.67 "Uninstalling the DWP-80S Driver" Reinstall the driver again following the driver installation procedure in the Setup Guide. Uninstalling the DWP-80S Driver When uninstalling the driver, perform the following operation: Windows 10 Windows 8.1...

  • Page 68: Driver For The Projector Does Not Operate Correctly

    Windows 8.1 Windows 7 Open Explorer and open the drive and folder containing the driver. When using the Roland DG Software Package CD-ROM, specify the folder as shown below. • For 64-bit systems: D:\Drivers\WINX64 (This is assuming your CD-ROM drive is the D drive.)
  • Page 69 Troubleshooting Windows 10 Windows 8.1 Windows 7 Check whether From [Control Panel], Check whether "USB Projector" is click [Hardware and "USB Projector" is displayed under "USB Sound] and then displayed under "USB Display Adapters." [Device Manager]. Display Adapters." If “USB Projector” If “USB Projector”...

  • Page 70: Uninstalling The Driver For The Projector

    Correct Installation of the DWP-80S Driver Is Impossible (Listed as “Unspecified”) If the DWP-80S driver is not installed correctly, the installed driver will be listed as “Unspecified” on the computer. In such cases, perform the following procedure to install the driver.
  • Page 71 Right-click on the “Unspecified” DWP-80S driver for the machine being used, and then click [Properties]. If the machine and the computer are not connected, no DWP-80S driver will be displayed under “Unspecified.” If no driver is displayed, turn on the machine and connect the machine to the computer.

  • Page 72: Checking The Quick Denta Version

    Troubleshooting Checking the Quick Denta Version If you want to check which version of Quick Denta you are using, follow the procedure shown below. Procedure Start Quick Denta. Click the icon in the upper-left corner, and then click "About Quick Denta." The version information will appear.

  • Page 73: When.moving.the.machine

    When Moving the Machine When moving the machine, secure the UV irradiation outlet shutter, and tape the front cover down. Required items Retainer (large): 1 Retainer (small): 2 I mp ort an t Use the original retainers that were supplied when the product was delivered. If the original retainers are no longer available, use an alternative that is capable of holding the UV irradiation outlet shutter in place.
  • Page 74 When Moving the Machine Tape the retainers in place. Close the front cover and tape it down. Chapter 4 Appendix...

  • Page 75: Main.specifications

    Main Specifications Location of Power Rating and Serial Number Label Back Serial number The serial number is required for maintenance, servicing, and support. Never peel off the label or let it get dirty. Power rating Use an electrical outlet that meets the ratings for voltage and current given here.

  • Page 76: External Dimensions

    Main Specifications External Dimensions Unit: mm (inch) 250 (9.84) (1.57) (1.57) 245 (9.65) 63.5 430 (16.93) (2.50) 360 (14.17) (0.20) 562 (22.13) Chapter 4 Appendix...

  • Page 77: Specifications

    Liquid material vat, photo-curable resin, post-curing device Production using the described applications require a suitable material. For more information, contact your authorized Roland DG Corp. dealer. System Requirements for USB Connection A model preinstalled with Windows 10, 8.1, or 7 (32 or 64 bit) or an upgraded...
  • Page 78 FA01081 R1-161121...
