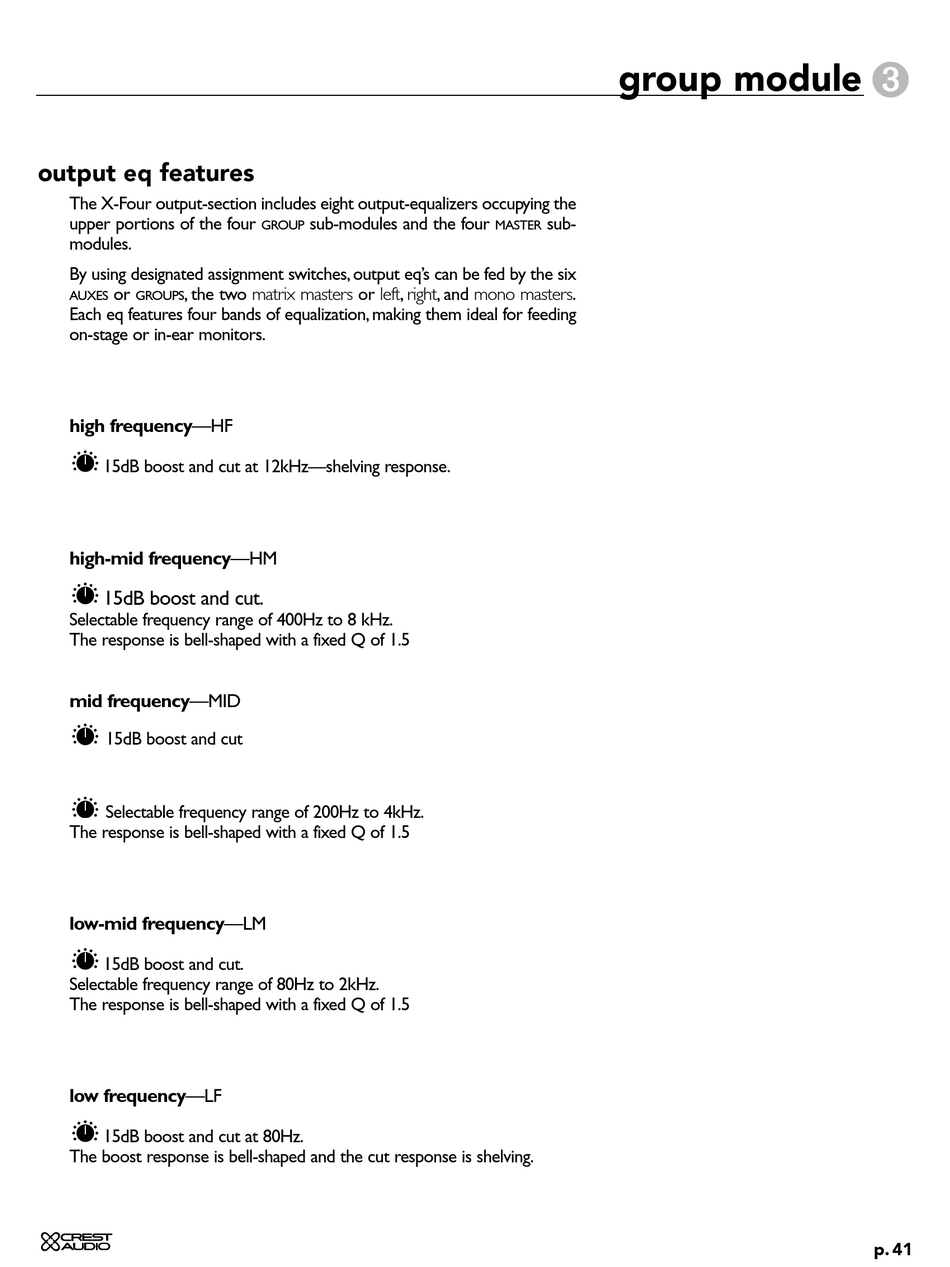

output eq features

The X-Four output-section includes eight output-equalizers occupying the
upper portions of the four
modules.
By using designated assignment switches, output eq's can be fed by the six
or , the two matrix masters or left, right, and mono masters.
AUXES GROUPS
Each eq features four bands of equalization, making them ideal for feeding
on-stage or in-ear monitors.
high frequency—HF
15dB boost and cut at 12kHz—shelving response.
high-mid frequency—HM
15dB boost and cut.
Selectable frequency range of 400Hz to 8 kHz.
The response is bell-shaped with a fixed Q of 1.5
mid frequency—MID
15dB boost and cut
Selectable frequency range of 200Hz to 4kHz.
The response is bell-shaped with a fixed Q of 1.5
low-mid frequency—LM
15dB boost and cut.
Selectable frequency range of 80Hz to 2kHz.
The response is bell-shaped with a fixed Q of 1.5
low frequency—LF
15dB boost and cut at 80Hz.
The boost response is bell-shaped and the cut response is shelving.
sub-modules and the four
GROUP
group module
sub-
MASTER
3
p. 41
