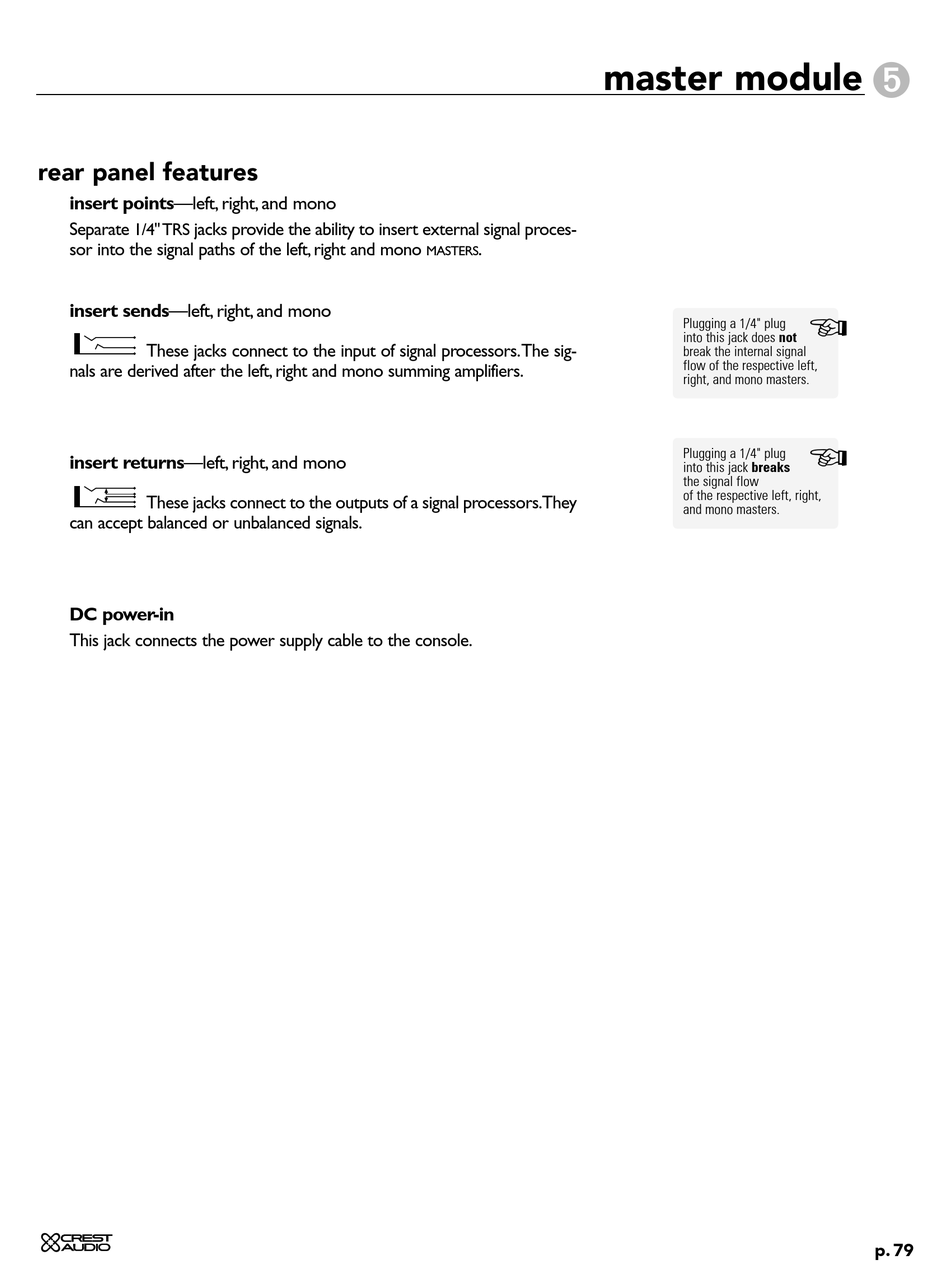

rear panel features
insert points—left, right, and mono
Separate 1/4" TRS jacks provide the ability to insert external signal proces-
sor into the signal paths of the left, right and mono
insert sends—left, right, and mono
These jacks connect to the input of signal processors.The sig-
nals are derived after the left, right and mono summing amplifiers.
insert returns—left, right, and mono
These jacks connect to the outputs of a signal processors.They
can accept balanced or unbalanced signals.

DC power-in

This jack connects the power supply cable to the console.
.
MASTERS
master module
Plugging a 1/4" plug
into this jack does not
break the internal signal
flow of the respective left,
right, and mono masters.
Plugging a 1/4" plug
into this jack breaks
the signal flow
of the respective left, right,
and mono masters.
5
+
+
