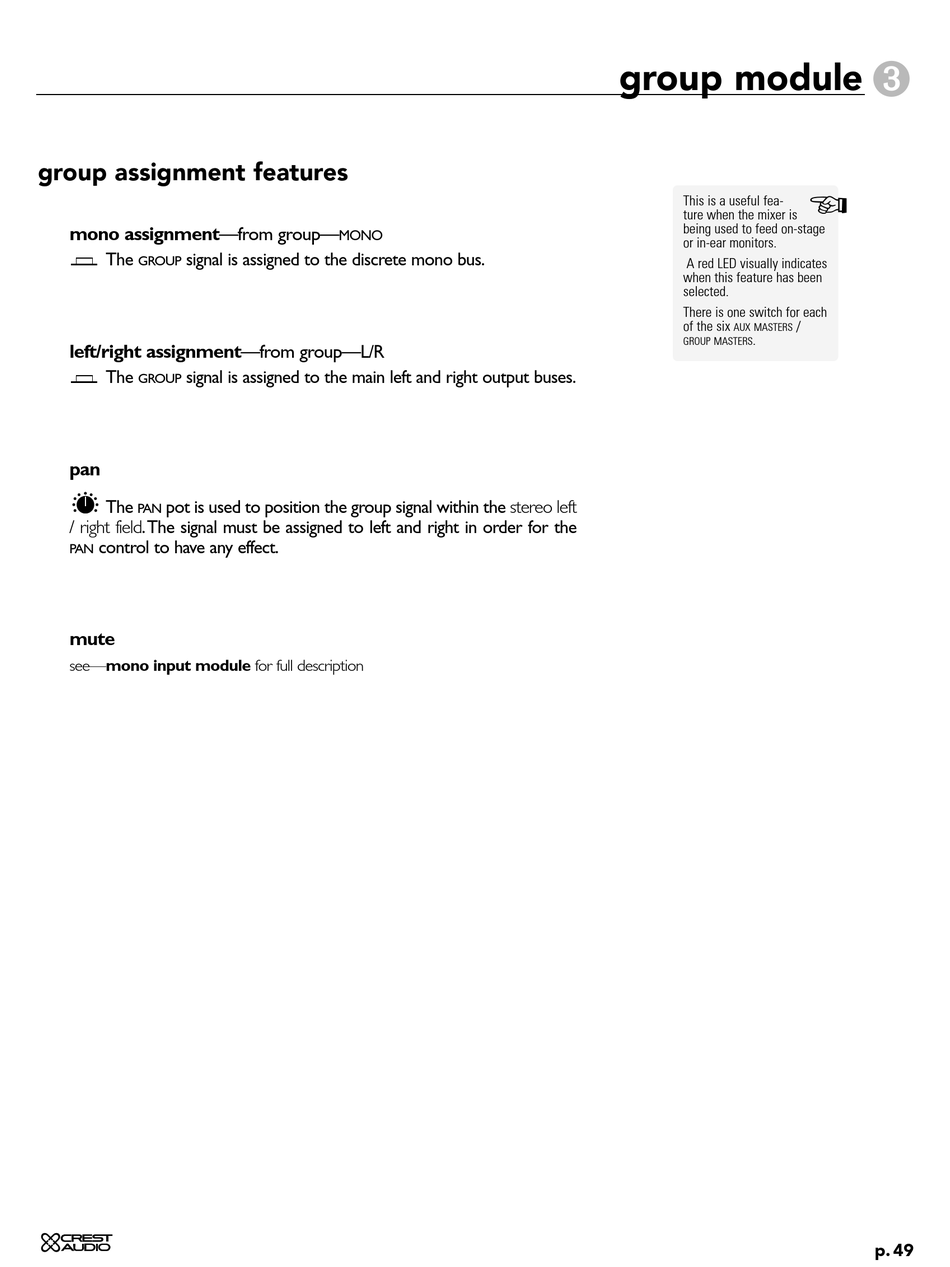

group assignment features
mono assignment—from group—
The signal is assigned to the discrete mono bus.
GROUP
left/right assignment—from group— L/R
The signal is assigned to the main left and right output buses.
GROUP

pan

The pot is used to position the group signal within the stereo left
PAN
/ right field.The signal must be assigned to left and right in order for the
control to have any effect.
PAN
mute
see—mono input module for full description
MONO
group module
This is a useful fea-
ture when the mixer is
being used to feed on-stage
or in-ear monitors.
A red LED visually indicates
when this feature has been
selected.
There is one switch for each
of the six
AUX MASTERS
.
GROUP MASTERS
3
+
/
p. 49
