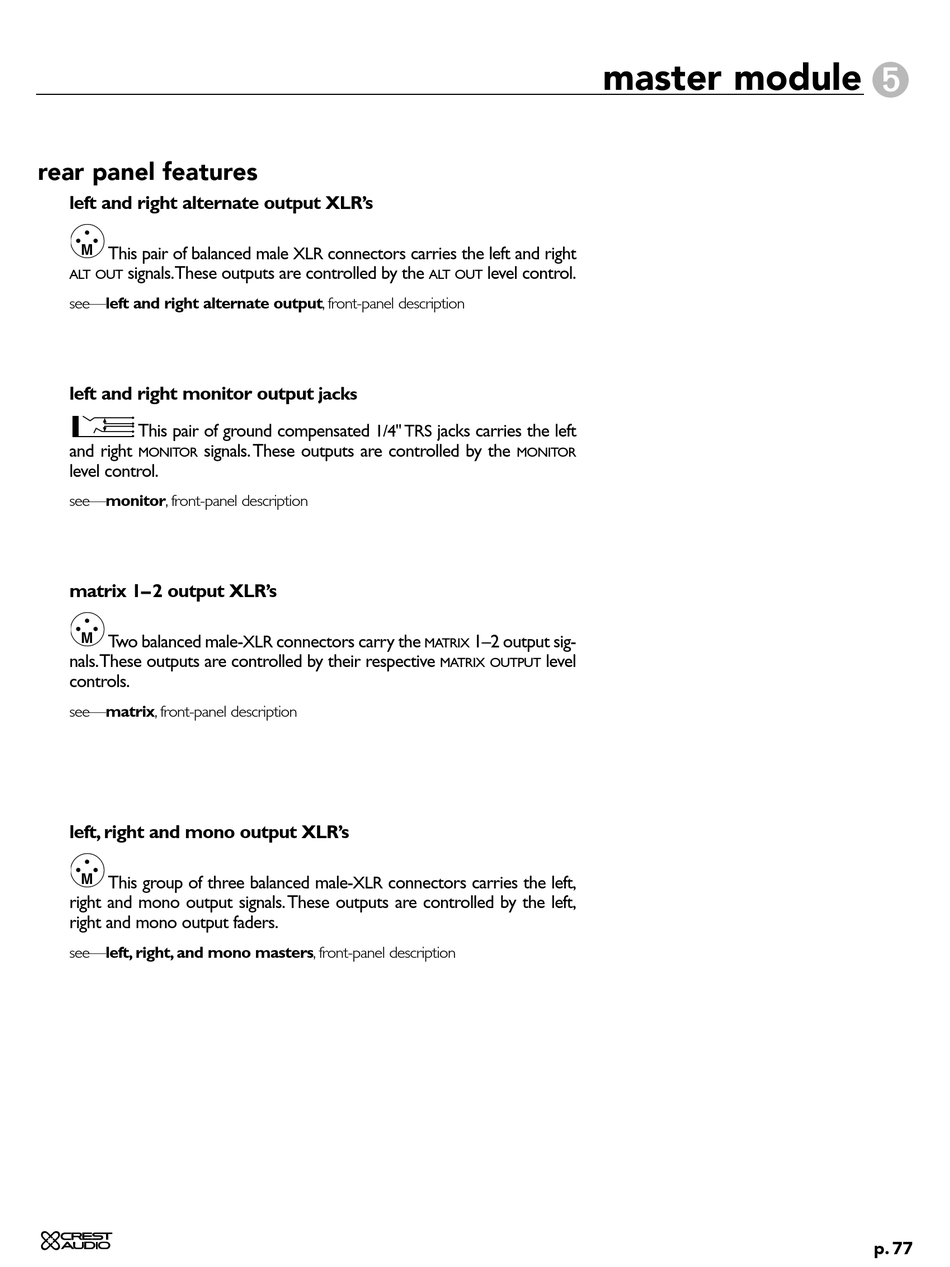

Crest Audio X-Four Owner's Manual page 77

rear panel features
left and right alternate output XLR 's
M
This pair of balanced male XLR connectors carries the left and right
signals.These outputs are controlled by the
ALT OUT
see—left and right alternate output, front-panel description
left and right monitor output jacks
This pair of ground compensated 1/4" TRS jacks carries the left
and right signals.These outputs are controlled by the
MONITOR
level control.
see—monitor, front-panel description
matrix 1–2 output XLR 's
M
Two balanced male- XLR connectors carry the
nals.These outputs are controlled by their respective
controls.
see—matrix, front-panel description
left, right and mono output XLR 's
M
This group of three balanced male- XLR connectors carries the left,
right and mono output signals.These outputs are controlled by the left,
right and mono output faders.
see—left, right, and mono masters, front-panel description
level control.
ALT OUT
MONITOR
1–2 output sig-
MATRIX
level
MATRIX OUTPUT
master module
5
p. 77
