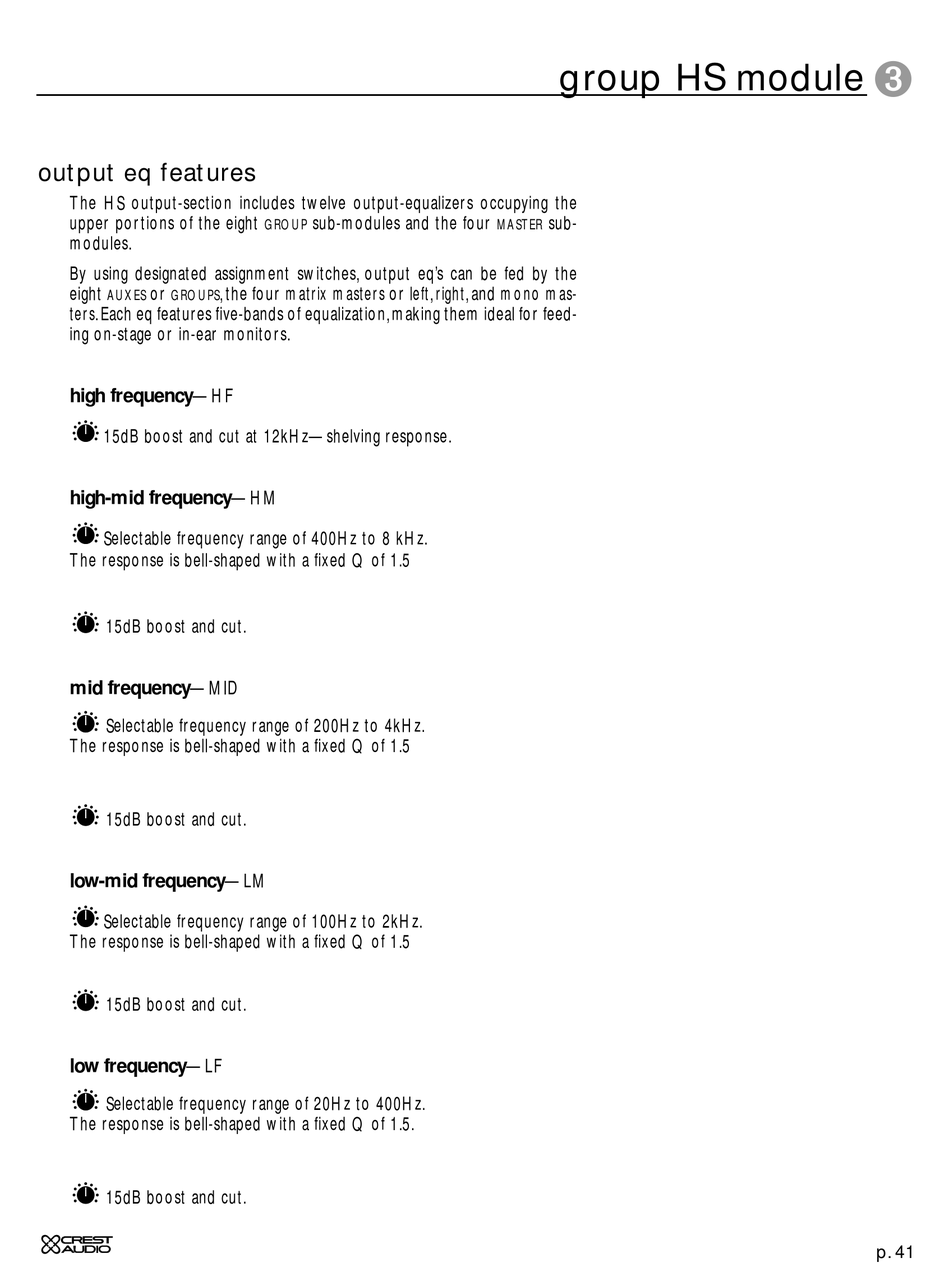

output eq features

The HS output-section includes twelve output-equalizers occupying the
upper portions of the eight
modules.
By using designated assignment switches, output eq's can be fed by the
eight or
AUXES GROUPS
ters.Each eq features five-bands of equalization,making them ideal for feed-
ing on-stage or in-ear monitors.
high frequency—HF
15dB boost and cut at 12kHz—shelving response.
high-mid frequency—HM
Selectable frequency range of 400Hz to 8 kHz.
The response is bell-shaped with a fixed Q of 1.5
15dB boost and cut.
mid frequency—MID
Selectable frequency range of 200Hz to 4kHz.
The response is bell-shaped with a fixed Q of 1.5
15dB boost and cut.
low-mid frequency—LM
Selectable frequency range of 100Hz to 2kHz.
The response is bell-shaped with a fixed Q of 1.5
15dB boost and cut.
low frequency—LF
Selectable frequency range of 20Hz to 400Hz.
The response is bell-shaped with a fixed Q of 1.5.
15dB boost and cut.
sub-modules and the four
GROUP
, the four matrix masters or left, right, and mono mas-
group HS module
sub-
MASTER
3
p. 41
