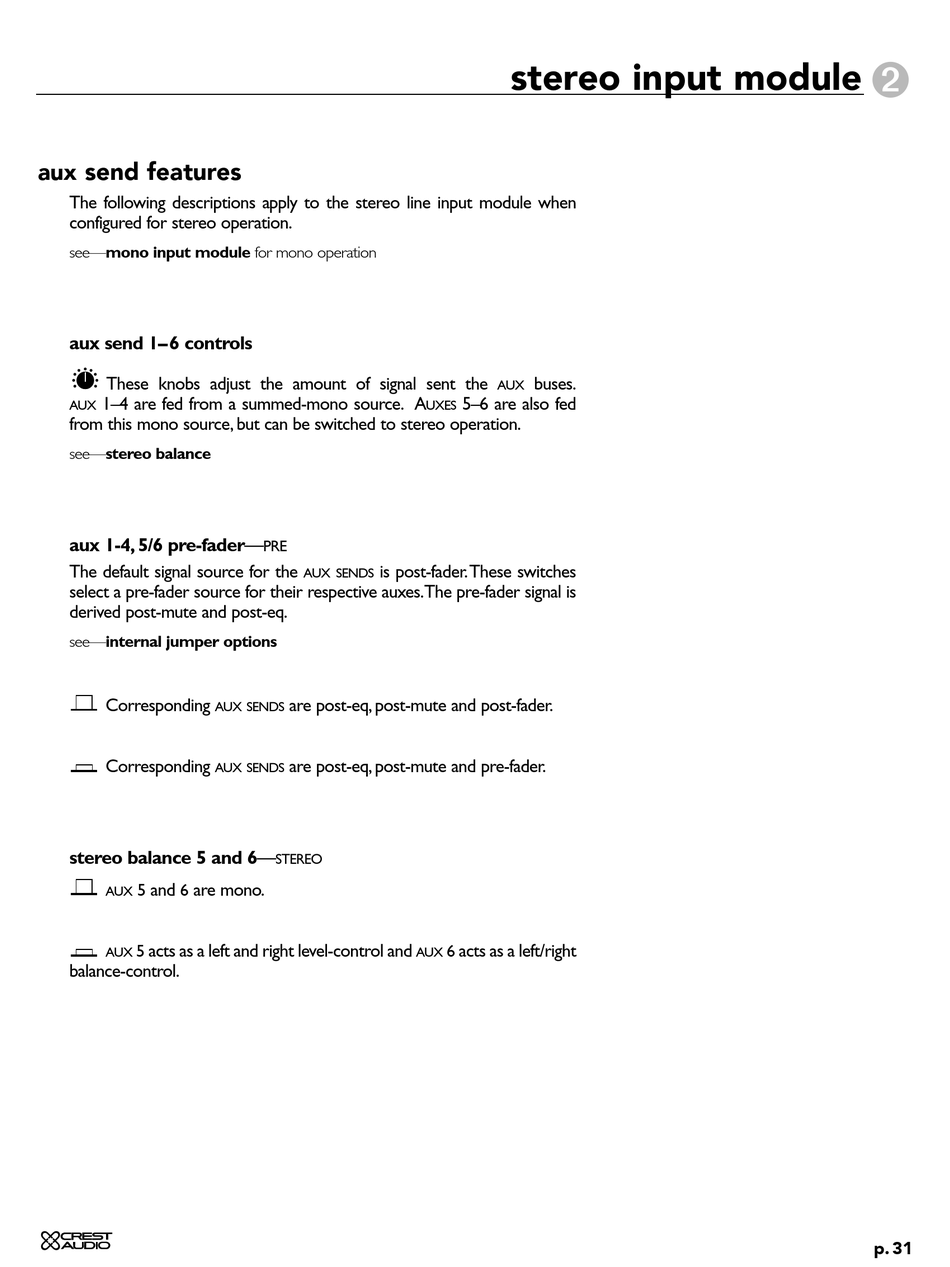

Crest Audio X-Four Owner's Manual page 31

aux send features
The following descriptions apply to the stereo line input module when
configured for stereo operation.
see—mono input module for mono operation
aux send 1–6 controls
These knobs adjust the amount of signal sent the
1–4 are fed from a summed-mono source. A
AUX
from this mono source, but can be switched to stereo operation.
see—stereo balance
aux 1-4, 5/6 pre-fader—
The default signal source for the
select a pre-fader source for their respective auxes.The pre-fader signal is
derived post-mute and post-eq.
see—internal jumper options
Corresponding
AUX SENDS
Corresponding
AUX SENDS
stereo balance 5 and 6—
and 6 are mono.
5
AUX
acts as a left and right level-control and
5
AUX
balance-control.
UXES
PRE
is post-fader.These switches
AUX SENDS
are post-eq, post-mute and post-fader.
are post-eq, post-mute and pre-fader.
STEREO
AUX
stereo input module
buses.
AUX
5–6 are also fed
acts as a left/right
6
2
p. 31
