Installing The Bitstorm 2600 On A Wall - Paradyne IP DSLAM BitStorm 2600 Installation Manual

1. Installation

Installing the BitStorm 2600 on a Wall

1-10
Wall mounting requires two wood screws suitable for the weight of the fully cabled
unit. These are not included. Use at a minimum 1/4-inch (6 mm) diameter screws
in 3/4-inch (19 mm) plywood (not drywall).
Procedure
To install the BitStorm 2600 on a wall:

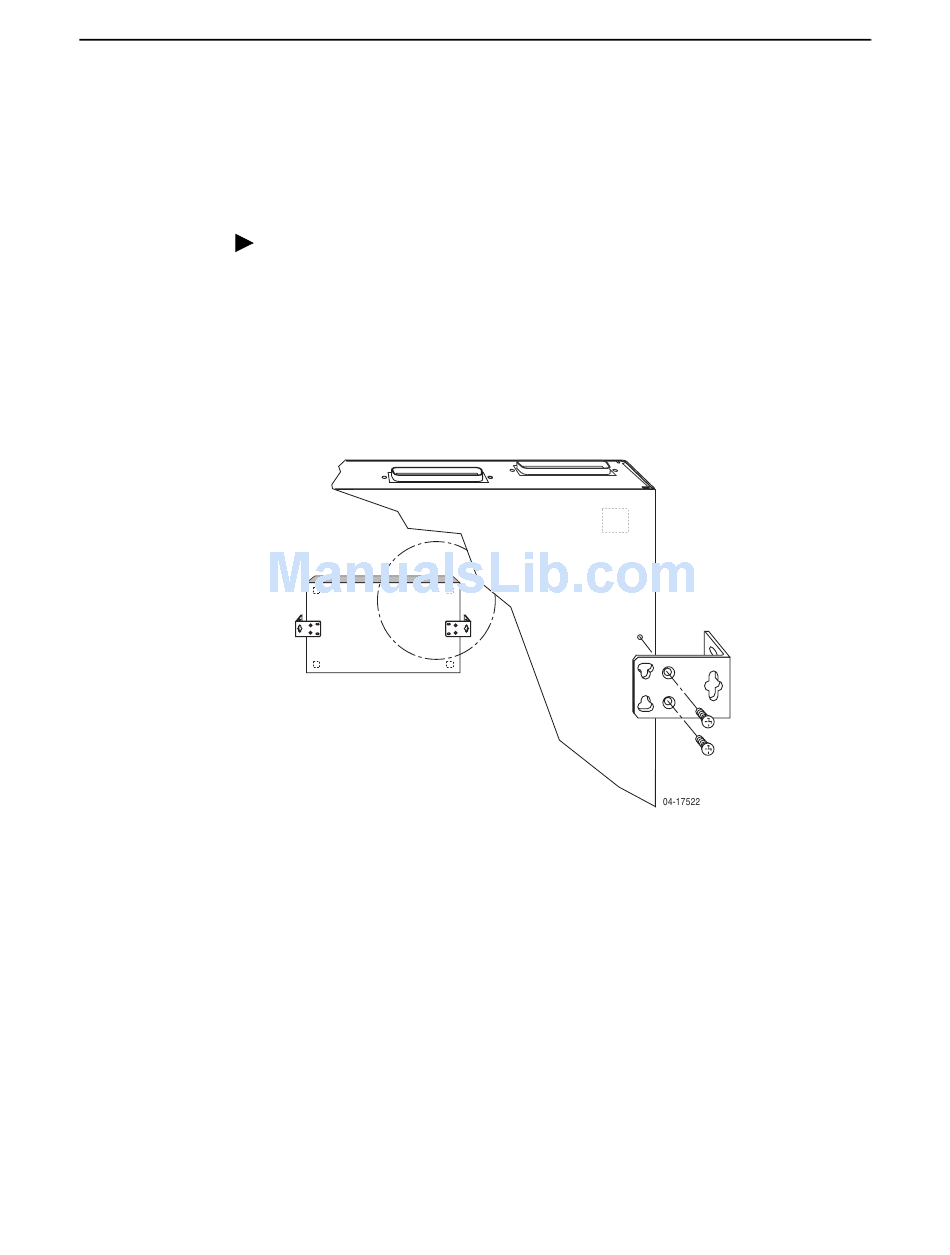

1. Identify the flat-head screws provided in the hardware kit and the brackets
suitable for a 23-inch rack. Two screws are required for each bracket.
2. Orient the unit so that the bottom is facing you and the faceplate is at the top.
3. Locate the supplied Right Side mounting bracket and fasten it to the right side
of the unit.
4. Locate the supplied Left Side mounting bracket and fasten it to the left side of
the unit.
5. Tighten all screws firmly.
