Dsl Ports - Paradyne IP DSLAM BitStorm 2600 Installation Manual

2. Cabling

DSL Ports

2-2
The BitStorm 2600 DSL connector supports the tip and ring connections of up to
24 DSL ports over a 50-position cable.
A POTS (plain old telephone service) splitter connector is also provided, for CO
applications only. The internal splitter includes an ANSI T1.413-compliant
Maintenance Test Signature (MTS) circuit. If your model does not contain the
integrated POTS splitter, you must connect the unit to a separate POTS splitter.
The Model 6051 POTS Splitter must be used for customer premises applications
in Canada.
Procedure
To cable the DSL Ports:
1. Insert a cable tie (provided) through the top of the anchor mount next to the
DSL PORTS 1–24 connector.
2. If the connector for your cable has a short captive screw, attach the cable to
the DSL PORTS 1–24 connector and fasten it to the jack screw with its short
captive screw.

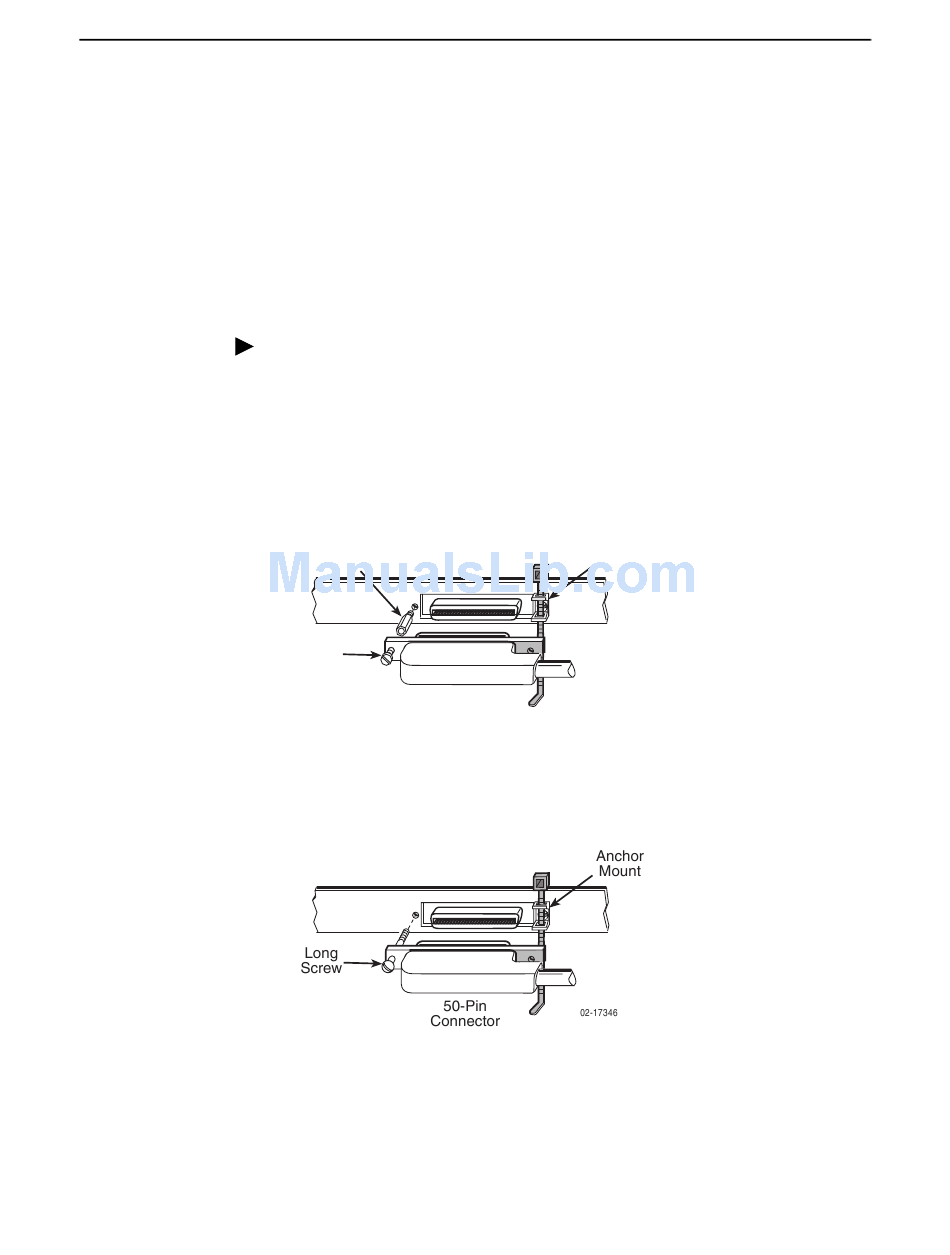

#4-40
Jack Screw
Short
Screw
Connector
3. If the connector for your cable has a long captive screw, remove the provided
jack screw from the threaded hole next to the DSL PORTS 1–24 connector.
Attach the DSL PORTS 1–24 connector to the unit using the long, captive
pan-head screw (provided).
March 2005
Anchor
Mount
50-Pin
02-17083
2600-A2-GN20-40
