2. Cabling

10/100BaseT Uplink (Port 2)

2-4
2. Connect the other end of the uplink cable to the uplink interface, such as an
Ethernet switch.
3. Port 3 (eth3) is the default uplink. If you have changed the default, use the
configure uplink CLI command or the Configuration / Uplink screen of the
web interface to specify eth3 as the uplink port.
Port 2 can be configured as the uplink for a single BitStorm 2600, or for the
terminating unit in a stack of BitStorm 2600s. A straight-through cable can be used
regardless of the destination interface, since the port automatically distinguishes
between an MDI and an MDIX.
Procedure
To use Port 2 as the uplink:
1. Connect an 8-position modular cable to Port 2.
2. Connect the other end of the cable to the uplink interface, such as an Ethernet
switch.
3. Using the configure uplink CLI command or the Configuration / Uplink
screen of the web interface, specify eth2 as the uplink port.
March 2005
03-17441

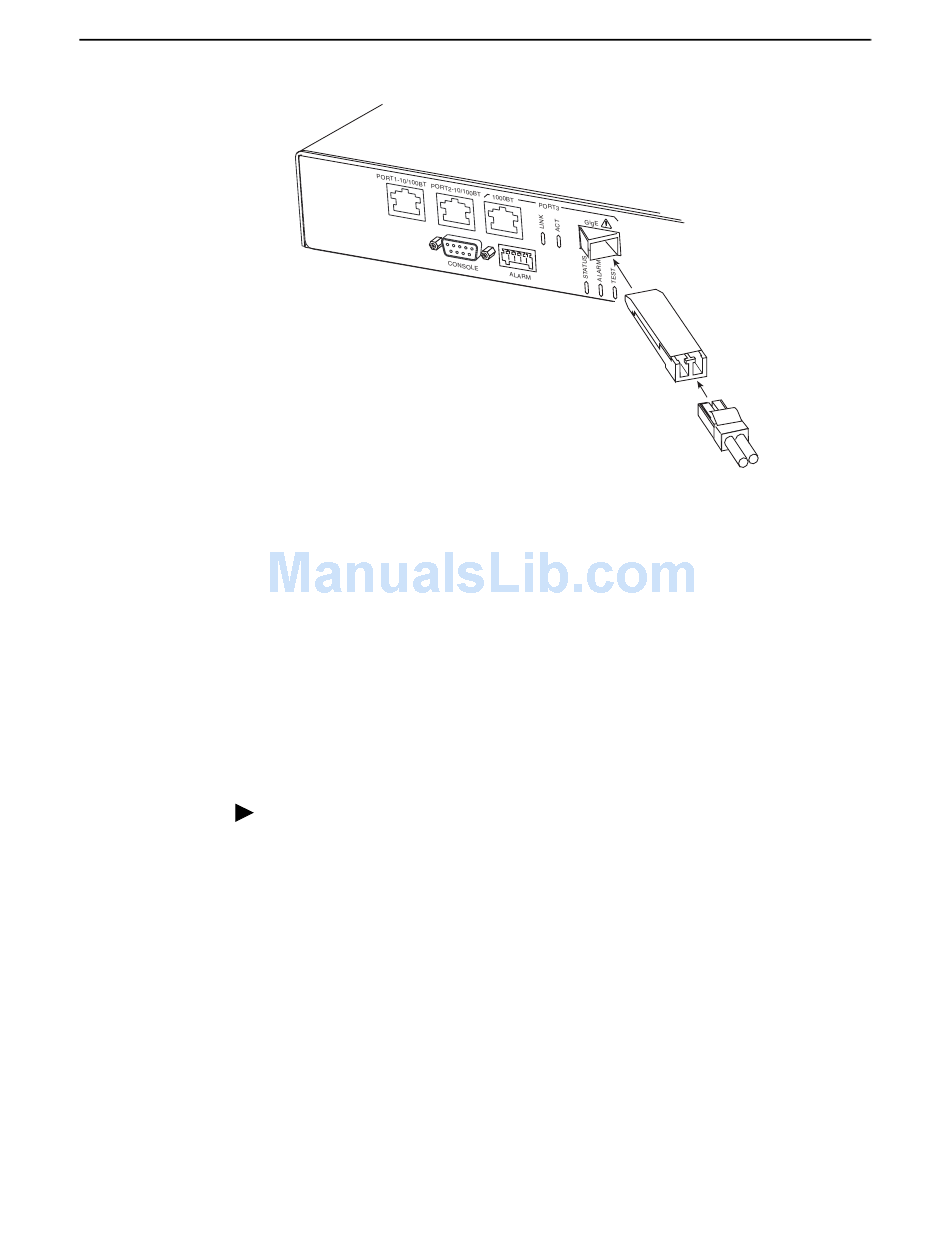

SFP
Transceiver
LC
Connector
2600-A2-GN20-40
