Port 1 and Port 2 10/100BaseT Connectors
Port 3 1000BaseT Connector
2600-A2-GN20-40
Port 1 and Port 2 are 8-pin unkeyed modular jacks for a 10/100Base interface.

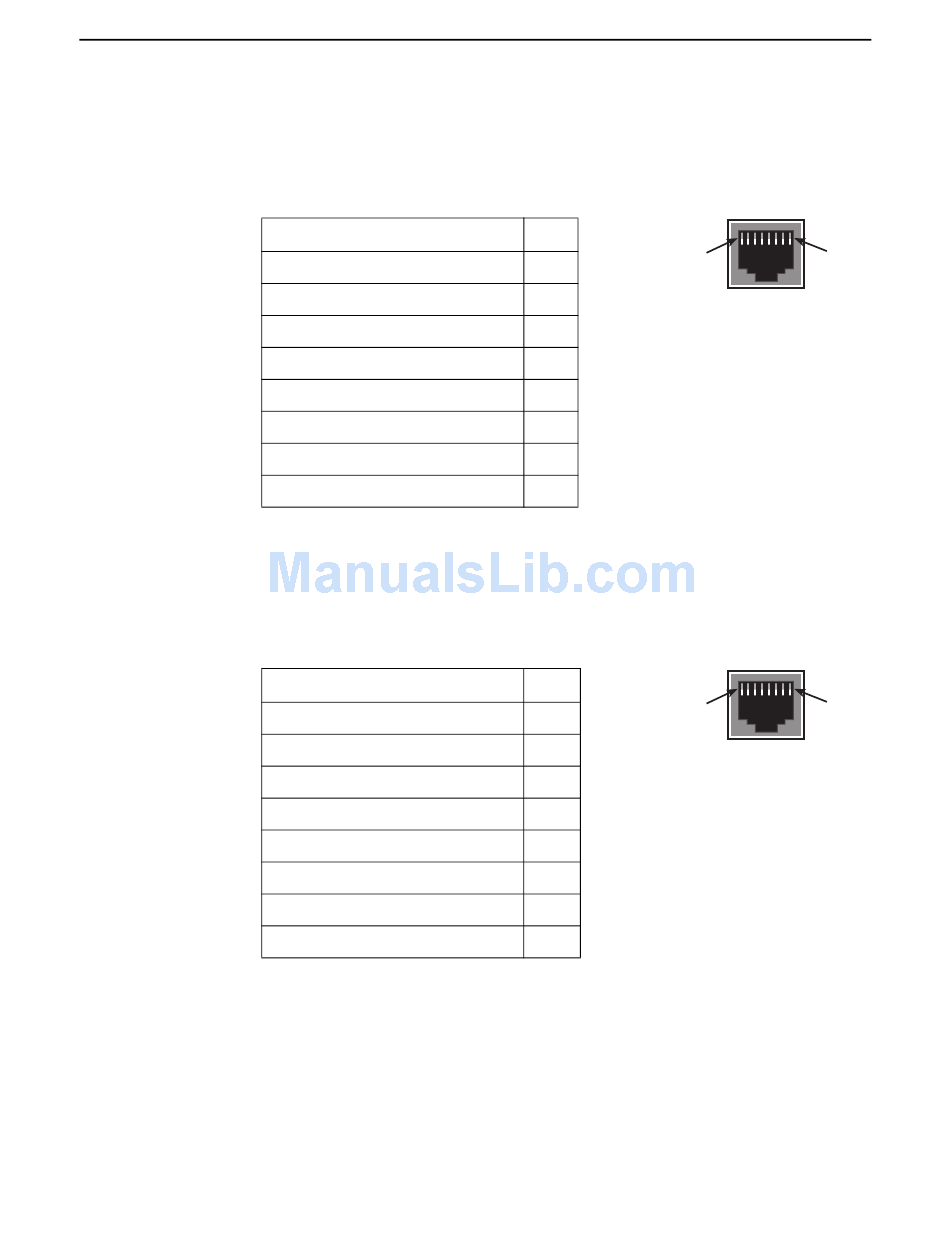

Table A-2. Port 1 and Port 2 Pinouts
Signal
Transmitted Data +
Transmitted Data –
Received Data +
Unused
Unused
Received Data –
Unused
Unused
Port 3's 1000BaseT interface is an 8-pin unkeyed modular jack.
Table A-3. Port 3 1000BaseT Connector
Signal
Tip 1
Ring 1
Tip 2
Ring 3
Tip 3
Ring 2
Tip 4
Ring 4
March 2005
A. Connectors and Pin Assignments
Pin
Pin 1
1
2
3
4
5
6
7
8
Pin
Pin 1
1
2
3
4
5
6
7
8
Pin 8
97-15449
Pin 8
97-15449
A-3
