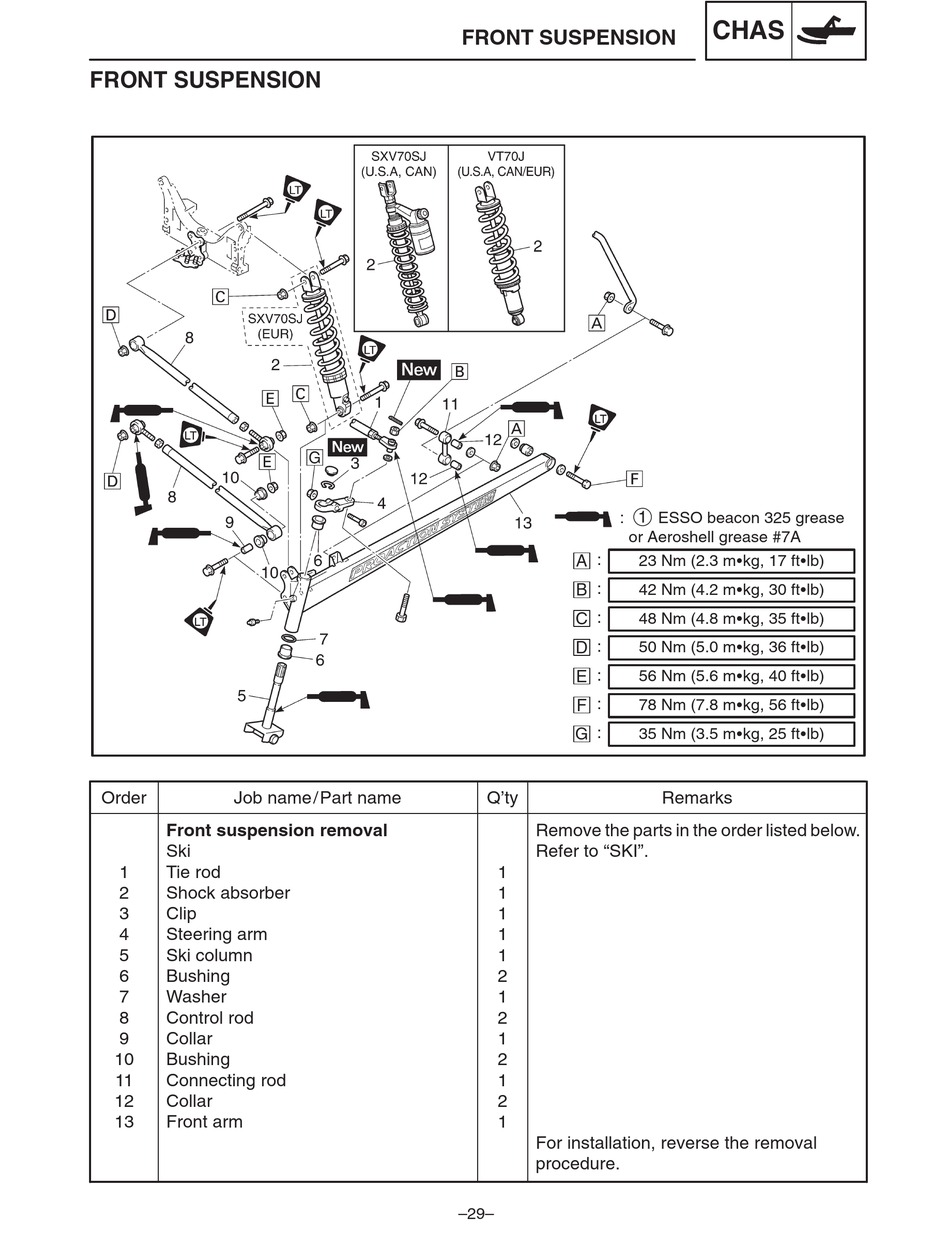

FRONT SUSPENSION

Order Job name/Part name
Front suspension removal
Ski
1 Tie rod
2 Shock absorber
3 Clip
4 Steering arm
5 Ski column
6 Bushing
7 Washer
8 Control rod
9 Collar
10 Bushing
11 Connecting rod
12 Collar
13 Front arm
FRONT SUSPENSION
:
or Aeroshell grease #7A
:
A
:
B
:
C
:
D
:
E
:
F
:
G
Q'ty
Remove the parts in the order listed below.
Refer to "SKI".
1
1
1
1
1
2
1
2
1
2
1
2
1
For installation, reverse the removal
procedure.
–29–
CHAS
1
ESSO beacon 325 grease
23 Nm (2.3 mSkg, 17 ftSlb)
42 Nm (4.2 mSkg, 30 ftSlb)
48 Nm (4.8 mSkg, 35 ftSlb)
50 Nm (5.0 mSkg, 36 ftSlb)
56 Nm (5.6 mSkg, 40 ftSlb)
78 Nm (7.8 mSkg, 56 ftSlb)
35 Nm (3.5 mSkg, 25 ftSlb)
Remarks
