Yamaha SXV70SJ Supplementary Service Manual page 237

Order Job name/Part name
Chain tensioner
12
Roller
13
14 Collar
Spring
15
16 Journal
17 Reverse driven gear
Washer
18
19 Forward driven sprocket
20 Collar
Counter gear
21
22 Drive sprocket
23 Drive chain
24 Collar
25 Washer
26 Plate
27 Shaft
28 Drive chain housing

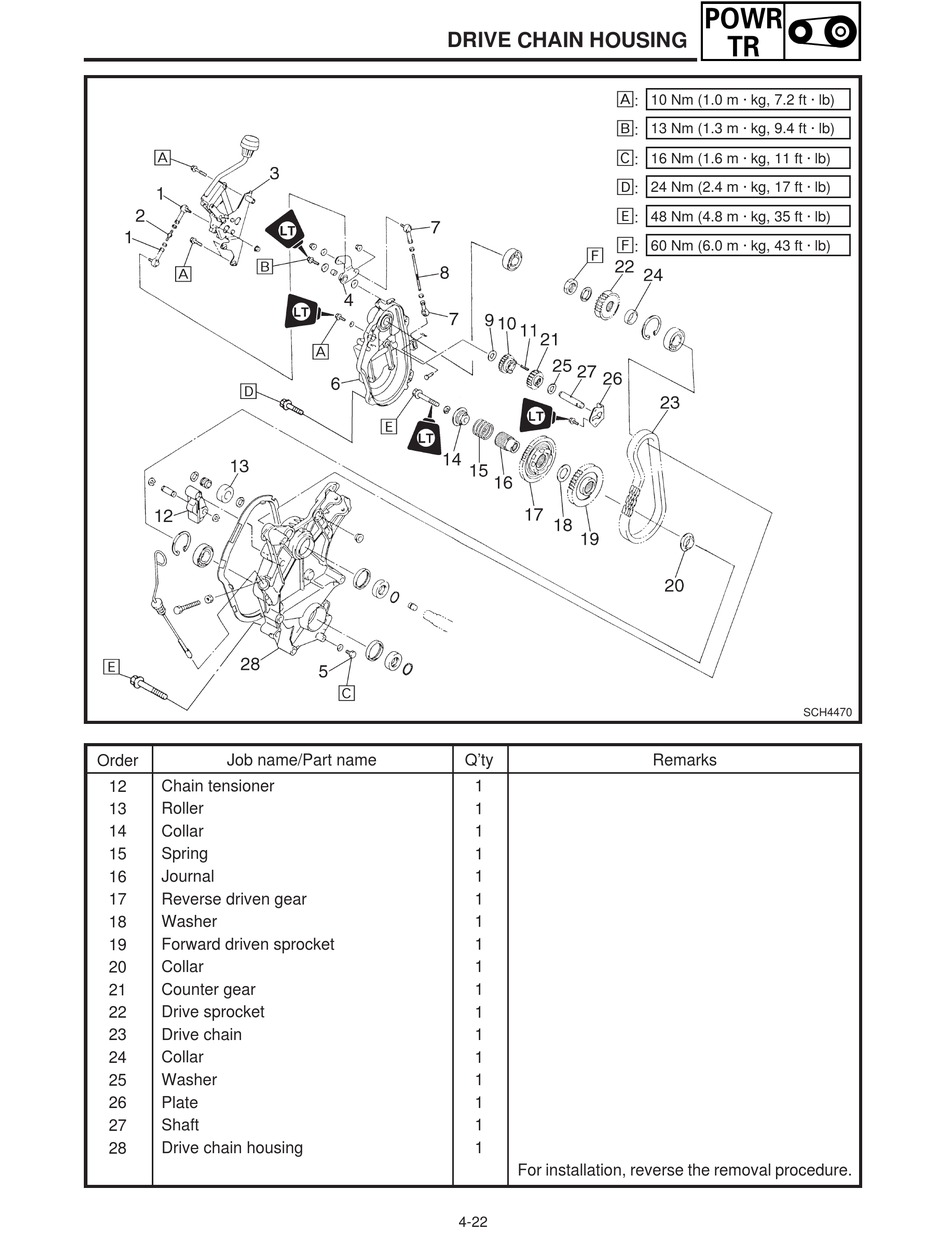

DRIVE CHAIN HOUSING
Å
ı
Ç
Î
‰
Ï
Q'ty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
For installation, reverse the removal procedure.
4-22
POWR
TR
10 Nm (1.0 m · kg, 7.2 ft · lb)
:
13 Nm (1.3 m · kg, 9.4 ft · lb)
:
16 Nm (1.6 m · kg, 11 ft · lb)
:
24 Nm (2.4 m · kg, 17 ft · lb)
:
48 Nm (4.8 m · kg, 35 ft · lb)
:
60 Nm (6.0 m · kg, 43 ft · lb)
:
SCH4470
Remarks
