Chapter 2 Installation

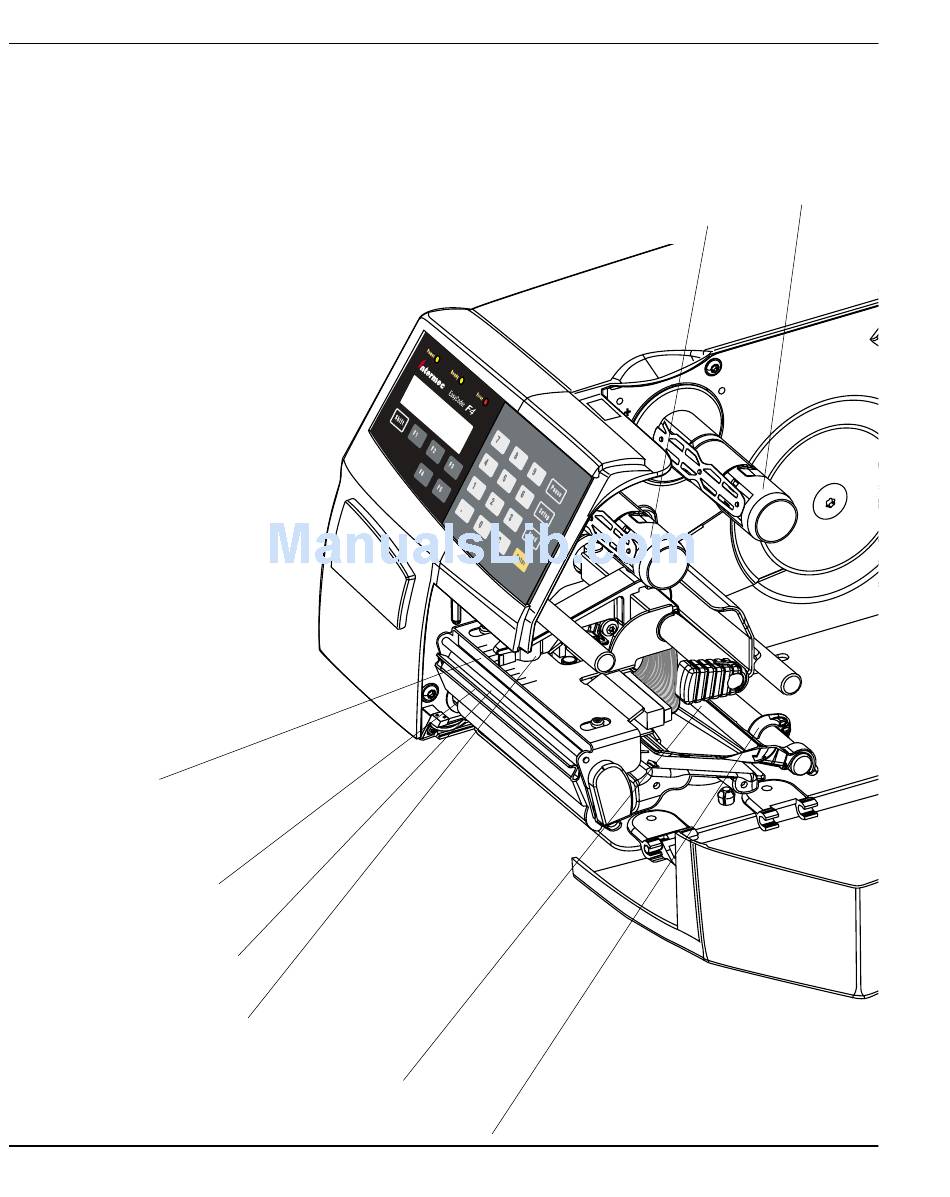

Print Mechanism
Thermal Printhead
Tear Bar
Platen Roller
Pressure Arm
14
The print mechanism features a high-performance 8 dots-per-mm
(203.2 dots-per-inch) thermal printhead with quick-mount fi ttings
to facilitate replacement. The thermal transfer ribbon mechanism is
omitted in dedicated direct thermal printing models.
Printhead Lift Lever
Edge Guide
Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 1
Ribbon Supply Hub
Ribbon Rewind Hub
