Chapter 10 Maintenance

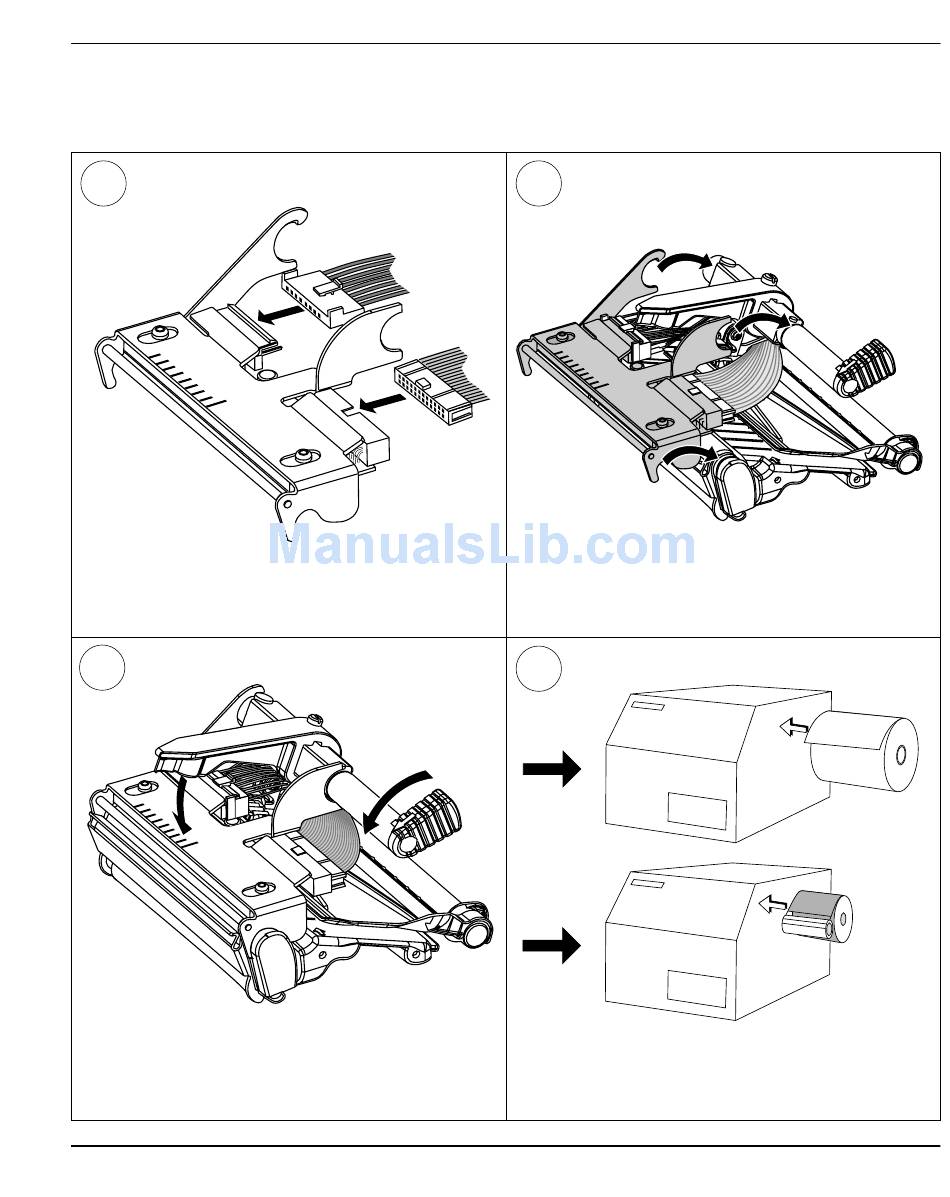

Printhead Replacement, cont.
7
8
Put back the printhead in reverse order and
Connect the two cables to the replacement
check that the printhead cables run freely.
printhead.
9
10
Load a new supply of media and ribbon, as
Turn the printhead lift lever counterclockwise
described earlier in this manual.
so the magnet engages the printhead bracket.
Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 1
57
