Intermec EasyCoder F4 Installation & Operation Manual page 22

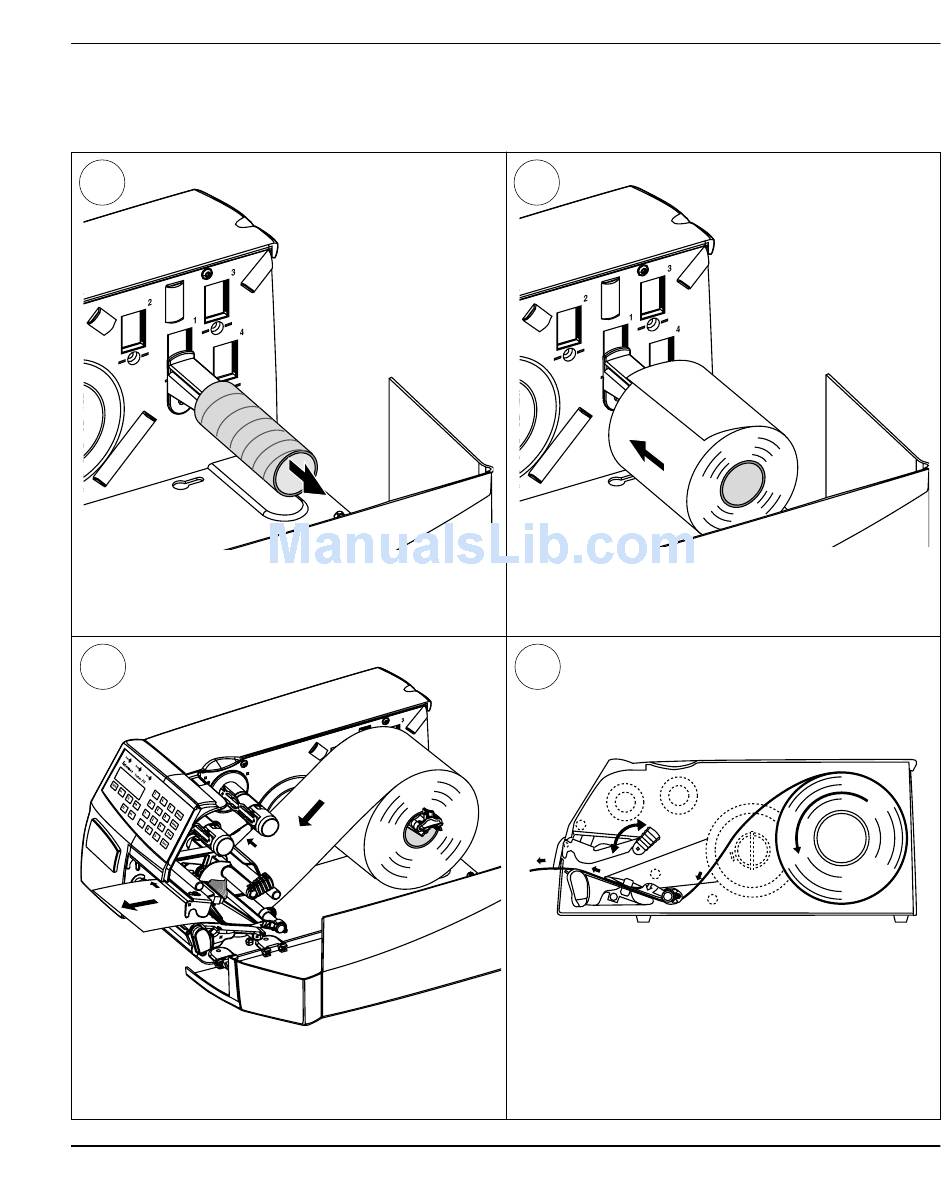

Tear-Off, cont.
3
Remove any empty core from the media supply
roll post.
5
Route the media through the print mechanism.
Then push it inwards as far as it will go.
Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 1
4
Fit a new roll of media on the supply post and
adjust the edge guide so the roll becomes fl ush
with the center section.
6
This diagram shows the media path.
Chapter 5 Ribbon Load
21
