4-4 User's Reference Guide
If you add devices connected
through a hub, connect the hub to
Ethernet port number 1 on the
Netopia R5000 Series Router and
set the Normal/Uplink switch to
Uplink.

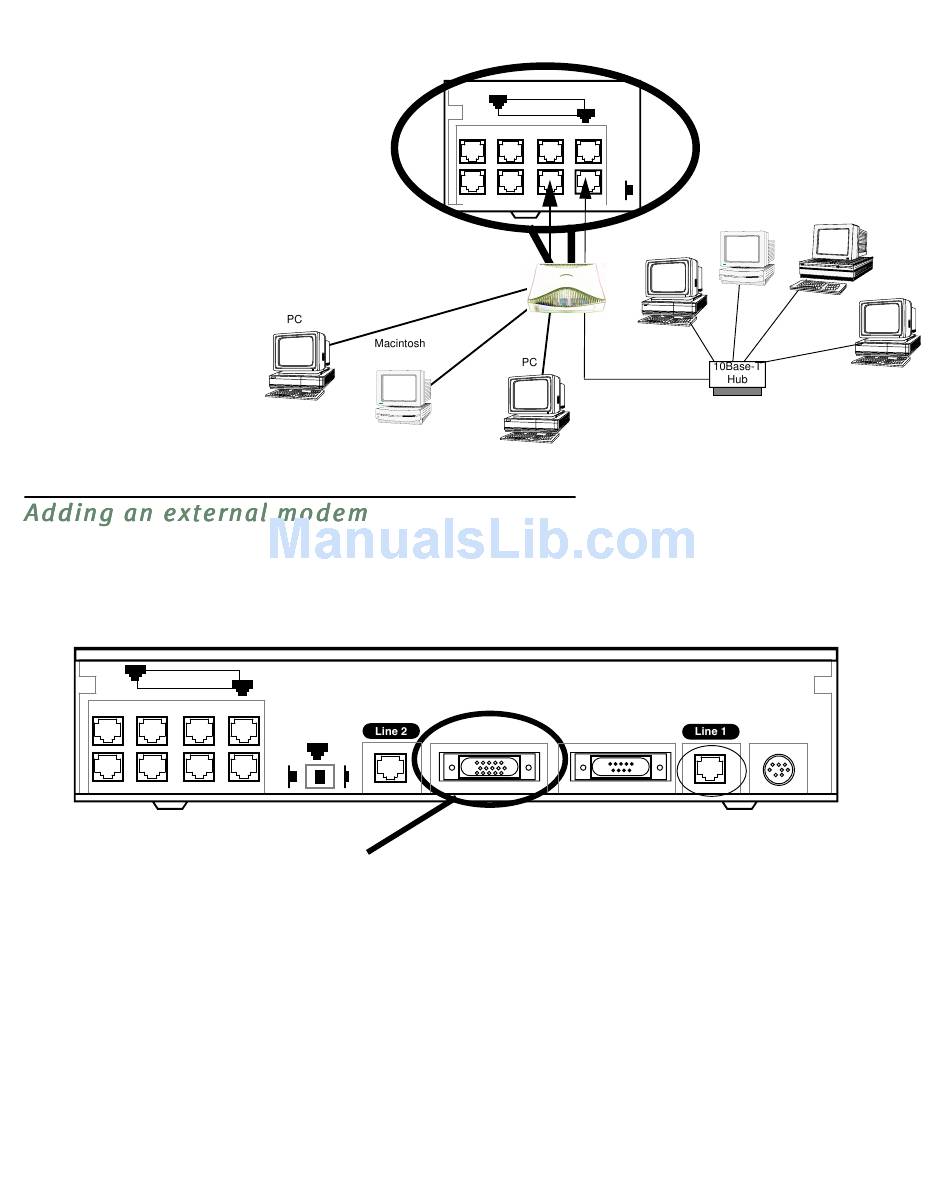

You may want to add an external modem to your Auxiliary port so that you can manage it even if the Internet
connectyion isn't functioning. Obtain the special DB-25 external modem cable (TE6/DB25) either from your
reseller or directly from Netopia.
Netopia R5000 Series Auxiliary port for connecting an external modem
8
Ethernet
By default, the Auxiliary port on your Netopia R5000 Series is enabled for remote console-based management
via an external modem. This means that all you have to do is connect your modem to the Auxiliary port and
configure the router for any AT command string your modem requires in the Line Configuration screens under
the WAN Configuration menu.
For pinout information on the HD-15 to DB-25 modem cable, see
Appendix F, "Technical Specifications and Safety Information."
1
1
Normal Uplink
Auxiliary connection port
HD-15 (female)
8
Ethernet
1
Nor-
Auxiliary Console
"Pinouts for Auxiliary port modem cable," in
Power
