Making the Physical Connections 3-3
Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables.

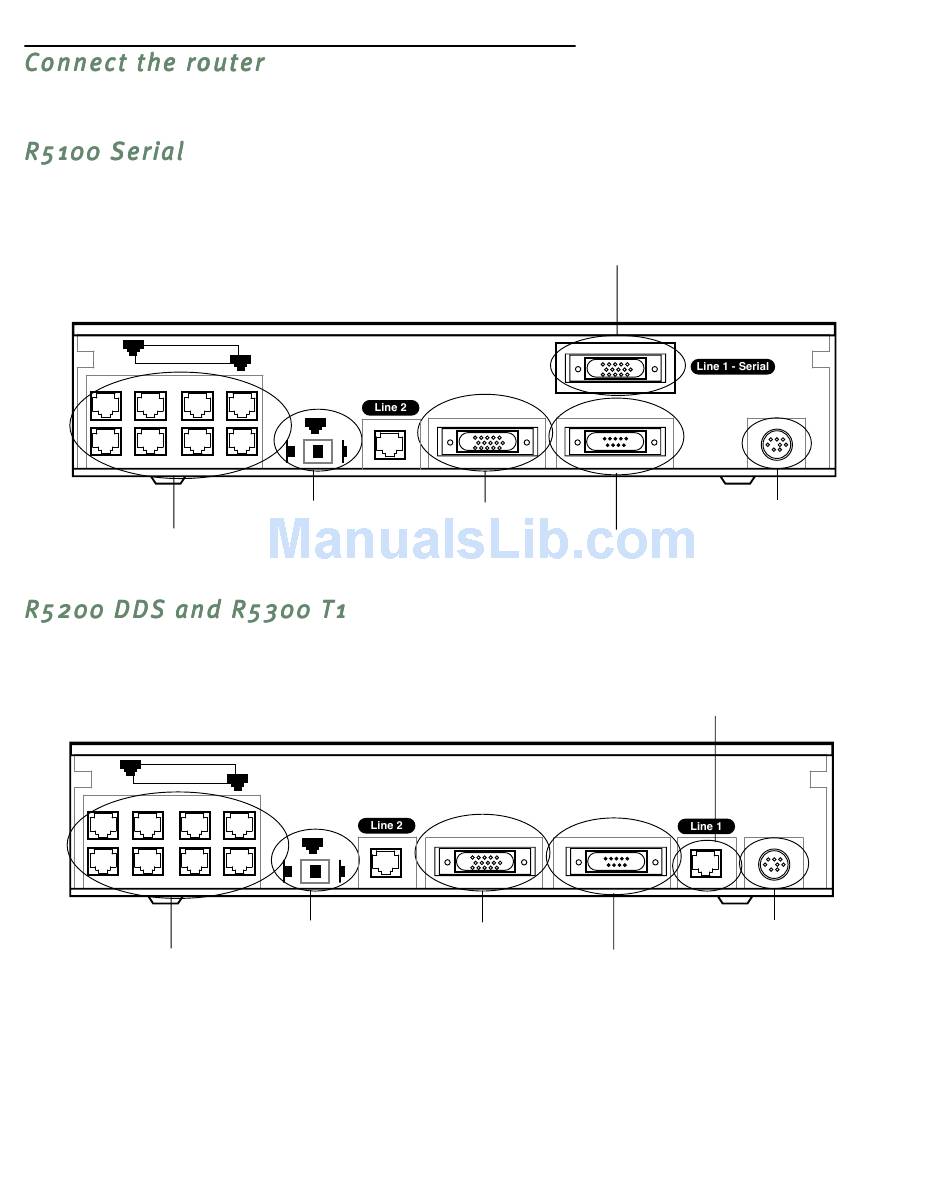

The figure below displays the back of the Netopia R5100 Serial Router.
Netopia R5100 back panel
Serial Line port
8
Ethernet
1
Auxiliary Power
Console
1
Normal Uplink
Crossover switch Auxiliary port Power port
8 port Ethernet hub Console port
The figure below displays the back of the Netopia R5200 DDS or R5300 T1 Router.
Netopia R5200/5300 back panel
Line port
8
Ethernet
1
Auxiliary Console Power
1
Normal Uplink
Crossover switch Auxiliary port Power port
8 port Ethernet hub Console port
Note: For simplicity, the remainder of this manual uses the figure above to illustrate connections.
