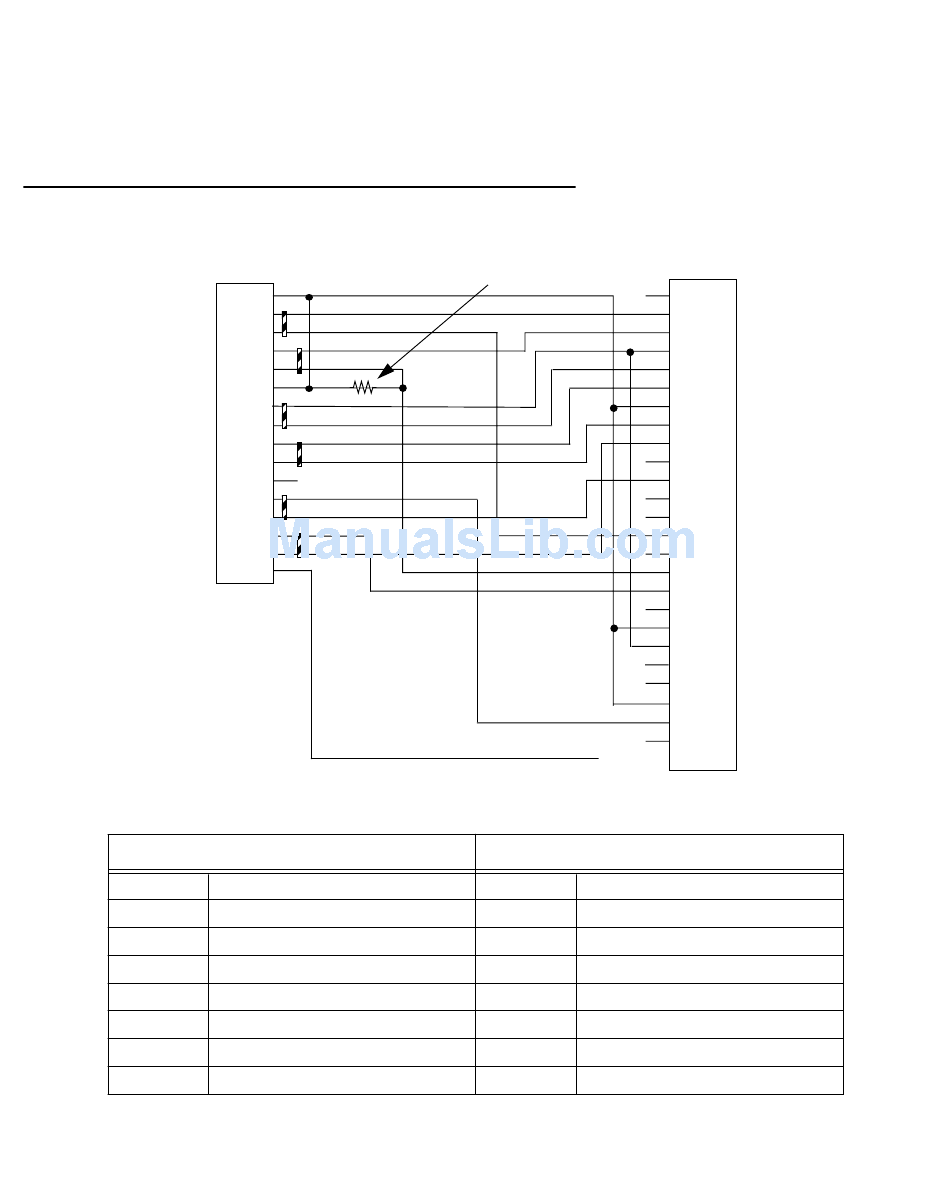

Pinouts for Auxiliary Port Modem Cable

Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Shield
BRAID
HD-15
Ground
TDA
TDB
RDA
RDB
(not used)
DTR
CTS
Technical Specifications and Safety Information F-1
1300 ohms
DB-25
Pin 1 (not used)
Pin 2 TD
Pin 3 RD
Pin 4 RTS
Pin 5 CTS
Pin 6 DCE Ready
Pin 7 Ground
Pin 8 RLSD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Shield
