Chapter 9 Operation and Maintenance

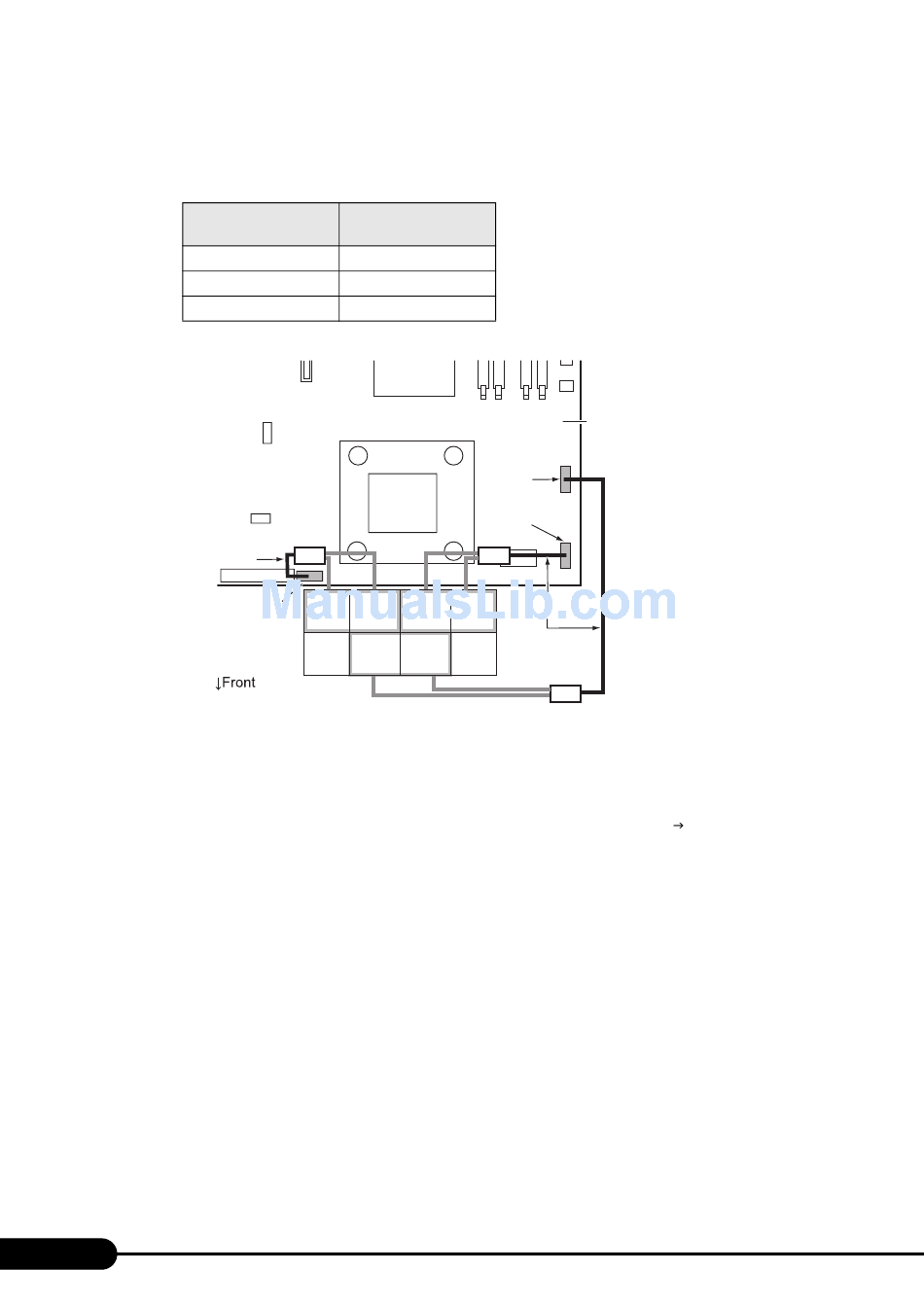

• If the extension cable is unplugged from the baseboard connector
Connect the cable by referring to the following table.
Fan number
Fans 1 and 2
Fans 3 and 4
Fans 6 and 7
[Inside the server]
Extension cable

■ SCSI Devices

●
The unit does not operate properly.
Refer to "Connection via the SCSI Card" of "7.7 Connection of Optional Devices" ( pg.187).
• Check to see whether the cable is connected properly. If it is not connected, correctly connect the
cable.
• Check to see whether the jumper pins are set correctly. If not, correctly set the jumper pins.
• Check to see whether the SCSI-ID and terminator are set correctly. If not, correctly set the SCSI-ID
and terminator.
■ Others
●
Notes on Operations in RAID1 Configuration
When disks of the server are used in RAID1 redundancy configuration, the disk data is protected even if
a single hard disk unit has failed. However, if both hard disks have failed, the disk data will be
permanently lost. Also, if the user repeatedly powers on/off or repeatedly reboots while a single disk unit
has failed, data reliability may be lost.
If a disk failure is detected, replace the failed disk unit as soon as possible to safeguard customer data.
224
table: Fan Connector List
Fan connector
number
CN6
CN7
CN9
CN6
Fan 1 Fan 2 Fan 3
Fan 6 Fan 7
Baseboard
CN9
CN7
Extension cable
Fan 4
