CHIEF MSP-TDKCG110 Installation Instructions Manual

Small flat panel desk mounts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

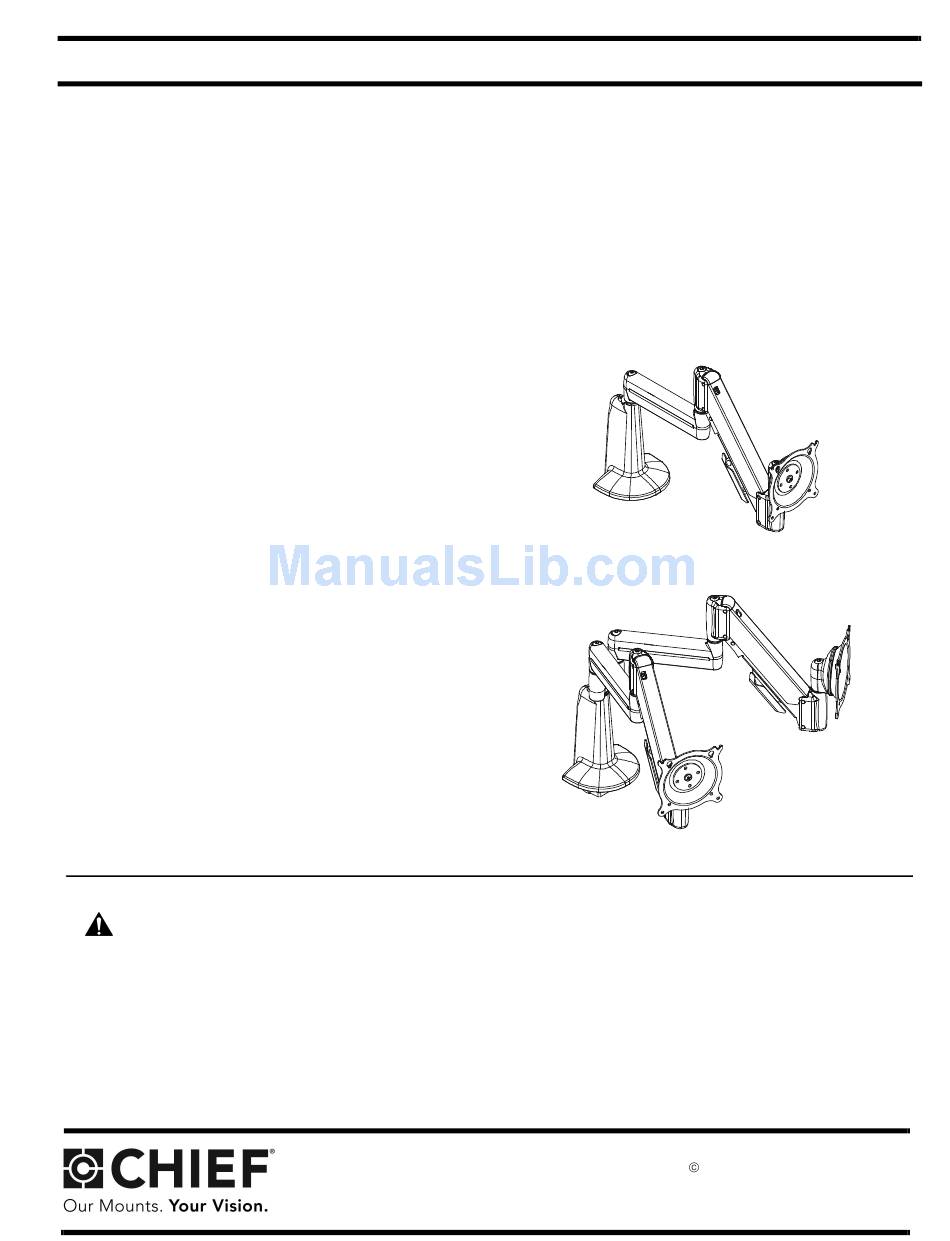

I N S T A L L A T I O N I N S T R U C T I O N S
Small Flat Panel Desk Mounts
Models: MSP-TDKCG110 &
MSP-TDKCY220
Specifications:
•
Designed for edge or grommet (hole) installation.
•
Accommodates VESA compliant 75mm x 75mm,
or 100mm x 100mm display mounting pattern.
IMPORTANT ! : See "IMPORTANT WARNINGS AND
CAUTIONS" on page 2 for weight capacities of these
mounts.
BEFORE YOU BEGIN
WARNING: It is the installer's responsibility to make sure all components are properly assembled and installed
using the instructions provided. Failure to read, thoroughly understand, and follow all instructions can result in
serious personal injury, damage to equipment, or voiding of factory warranty.
•
If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing
at 1-800-582-6480 or 952-894-6280.
Chief® and Centris™ are registered trademarks of Milestone AV Technologies, Inc. All rights reserved.
Chief Manufacturing, a division of Milestone AV Technologies
1-800-582-6480 952-894-6280 Fax: 952-894-6918
8401 Eagle Creek Parkway
Savage, Minnesota 55378 USA
MSP-TDKCG110
(Dual Arm - Height Adjustable)
MSP-TDKCY220
(Multi-Dual Arm - Height Adjustable)
2008 Milestone AV Technologies
8832-000166
www.chiefmfg.com
06/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP-TDKCG110 and is the answer not in the manual?

Questions and answers

Related Manuals for CHIEF MSP-TDKCG110

Summary of Contents for CHIEF MSP-TDKCG110

  • Page 1 • If you have any questions about this these instructions or your specific installation, contact Chief Manufacturing at 1-800-582-6480 or 952-894-6280. Chief® and Centris™ are registered trademarks of Milestone AV Technologies, Inc. All rights reserved.

  • Page 2: Important Warnings And Cautions

    WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! • MSP-TDKCG110: It is the installer’s responsibility to make sure the combined weight of all components attached to the mount (including the display) does not exceed 25 lbs (11 kg).
  • Page 3 Installation Instructions Models: MSP-TDKCG110 & MSP-TDKCY220 DIMENSIONS (MSP-TDKCG110) DIMENSIONS (MSP-TDKCY220)

  • Page 4: Tools Required For Installation

    NOTE: Other tools may be required depending on your method of installation. PARTS After unpacking carton, inspect and verify contents (See Table 1)(See Figure 1). If any listed parts are missing or damaged, contact Chief Customer Service at 1-800-582-6480. Table 1: Parts Item Description...

  • Page 5: Mount Installation

    Installation Instructions Models: MSP-TDKCG110 & MSP-TDKCY220 MOUNT INSTALLATION EDGE INSTALLATION IMPORTANT ! : IF your display has a recessed mounting Two installation options exist: hole cavity, and the Centris bracket will not fit into that • Edge Installation cavity (See Figure 11), THEN proceed to "DISPLAY •...
  • Page 6 Models: MSP-TDKCG110 & MSP-TDKCY220 Installation Instructions GROMMET (HOLE) INSTALLATION IMPORTANT ! : IF your display has a recessed mounting hole cavity, and the Centris bracket will not fit into that 1. Using hex key (190), remove and retain baseplate cavity (See Figure 11), THEN proceed to "DISPLAY and three attach screws from bottom of mount (10 or INSTALLATION"...
  • Page 7 Installation Instructions Models: MSP-TDKCG110 & MSP-TDKCY220 MULTI-DUAL ARM ASSEMBLY (MSP-TDKCY220 ONLY) CAUTION: Improper positioning of arm assembly (30) may result in failure of mount and subsequent damage 1. Insert pin (90) into Y-connector upper bore in mount (20) (See Figure 7).
  • Page 8 Models: MSP-TDKCG110 & MSP-TDKCY220 Installation Instructions MULTI-DUAL ARM MODIFICATION (MSP-TDKCY220 ONLY) If desired, each arm assembly (30) may be modified to prevent movement of one arm relative to the other arm (without loosening the adjustment screw). NOTE: Spacer (shipped configuration) will allow limited movement of one arm relative to the other arm, dependent upon tension of adjustment screw.

  • Page 9: Display Installation

    Installation Instructions Models: MSP-TDKCG110 & MSP-TDKCY220 DISPLAY INSTALLATION MOUNTS REQUIRING SPACERS IMPORTANT ! : Spacers (150) are used only if your ALL MOUNTS display has a recessed mounting hole cavity, and the 1. Ensure Centris bracket is able to swivel and tilt easily, Centris bracket will not fit into that cavity (See Figure 11).
  • Page 10 Models: MSP-TDKCG110 & MSP-TDKCY220 Installation Instructions MOUNTS NOT REQUIRING SPACERS 3. Using Phillips screwdriver, install two remaining screws (130) through the lower mounting holes in IMPORTANT ! : If your display has a recessed mounting Centris bracket into the display (See Figure 13).

  • Page 11: Cable Management

    Installation Instructions Models: MSP-TDKCG110 & MSP-TDKCY220 CABLE MANAGEMENT 1. Attach all cables to display. CAUTION: Ensure that adequate cable slack exists for movement of display, and that cables will not be 2. Open the cable management bracket by sliding it pinched by installation of cover (90) or screws (80).
  • Page 12 Models: MSP-TDKCG110 & MSP-TDKCY220 Installation Instructions ADJUSTMENT HEIGHT ADJUSTABLE 1. Using key (200), slightly loosen or tighten the CENTRIS HEAD adjustment screw as necessary (See Figure 19). 1. If previously attached, disconnect cables from display, • If display settles on its own, then rotate then remove display.
