CHIEF MSP-TDKCG110 Installation Instructions Manual page 8

Models: MSP-TDKCG110 & MSP-TDKCY220
MULTI-DUAL ARM MODIFICATION
(MSP-TDKCY220 ONLY)
If desired, each arm assembly (30) may be modified to
prevent movement of one arm relative to the other arm
(without loosening the adjustment screw).
NOTE: Spacer (shipped configuration) will allow limited
movement of one arm relative to the other arm,
dependent upon tension of adjustment screw.
Washer (110) will lock arms together.
1. Using hex key (210), loosen adjustment screw until
nut can be removed (See Figure 9). Retain nut.
Screw and washers may remain in outer mount arm
assembly.
Adjustment Screw and Washers
Outer Arm Assembly
Inner Arm Assembly

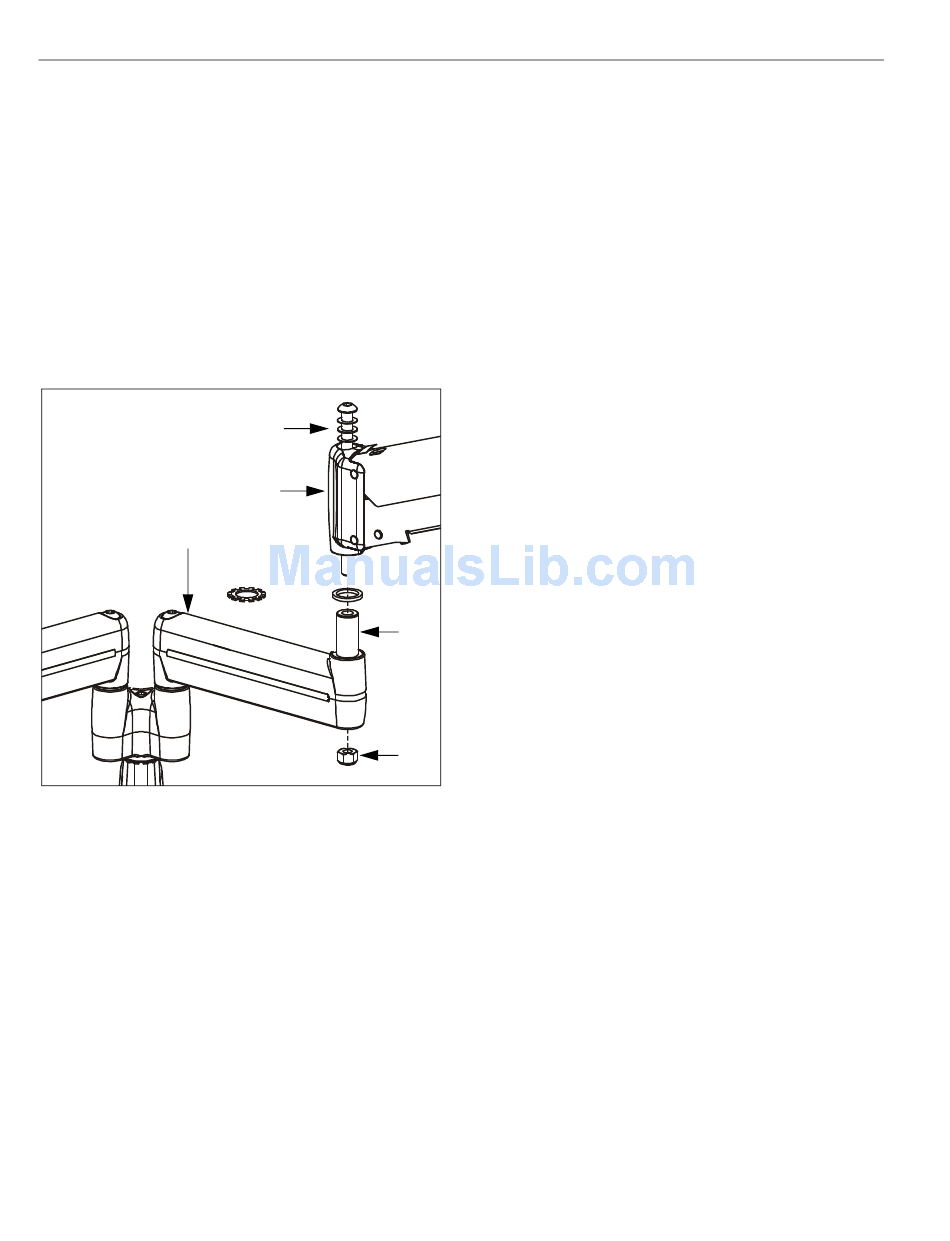

Figure 9: Multi-Dual Arm Modification
2. Lift outer mount arm assembly from pin (with screw
and washers) and place on protective surface.
3. Remove spacer from pin (See Figure 9).
4. Install washer (110) on pin (See Figure 9).
5. Re-install outer mount arm assembly (with screw and
washers) on pin (See Figure 9).
6. Insert and hold nut in lower bore of inner mount arm
assembly (See Figure 9).
7. Tighten adjustment screw as required using hex key
(210) (See Figure 9).
8. Proceed to:
• "CABLE MANAGEMENT" if your displays were
previously installed, or to
• "DISPLAY INSTALLATION" if your displays were
not previously installed.
8
110 or Spacer
Pin
Nut
Installation Instructions
