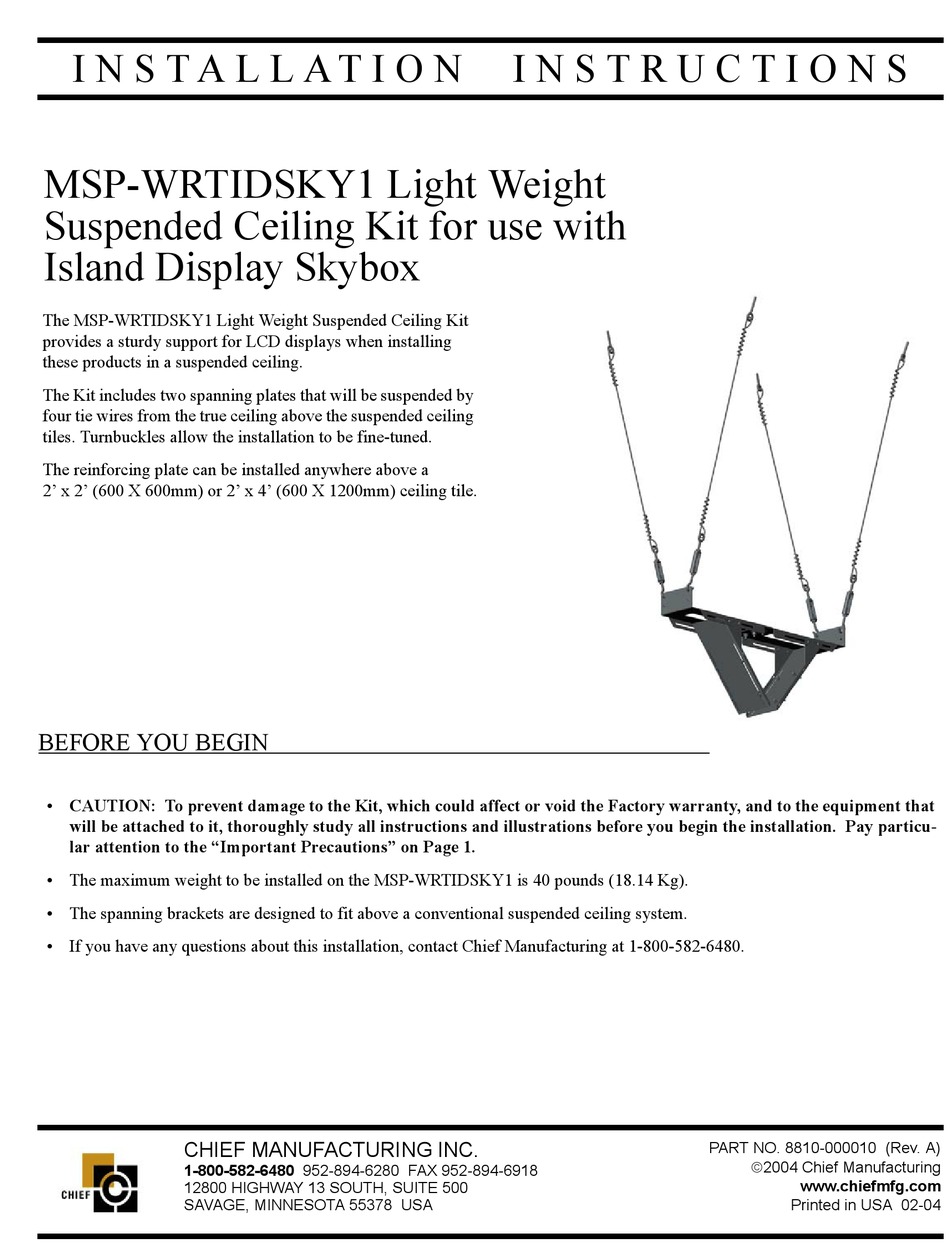

I N S T A L L A T I O N
MSP-WRTIDSKY1 Light Weight
Suspended Ceiling Kit for use with
Island Display Skybox
The MSP-WRTIDSKY1 Light Weight Suspended Ceiling Kit
provides a sturdy support for LCD displays when installing
these products in a suspended ceiling.
The Kit includes two spanning plates that will be suspended by
four tie wires from the true ceiling above the suspended ceiling
tiles. Turnbuckles allow the installation to be fine-tuned.
The reinforcing plate can be installed anywhere above a
2' x 2' (600 X 600mm) or 2' x 4' (600 X 1200mm) ceiling tile.
BEFORE YOU BEGIN
• CAUTION: To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that
will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particu-
lar attention to the "Important Precautions" on Page 1.
• The maximum weight to be installed on the MSP-WRTIDSKY1 is 40 pounds (18.14 Kg).
• The spanning brackets are designed to fit above a conventional suspended ceiling system.
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
PART NO. 8810-000010 (Rev. A)
2004 Chief Manufacturing
www.chiefmfg.com
Printed in USA 02-04
Advertisement
Table of Contents
Related Manuals for CHIEF MSP-WRTIDSKY1
Summary of Contents for CHIEF MSP-WRTIDSKY1
-
Page 1: Before You Begin
Pay particu- lar attention to the “Important Precautions” on Page 1. • The maximum weight to be installed on the MSP-WRTIDSKY1 is 40 pounds (18.14 Kg). • The spanning brackets are designed to fit above a conventional suspended ceiling system. -
Page 2: Tools Required For Installation
• WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted. • WARNING: The installer is responsible for verifying that the structure to which the MSP-WRTIDSKY1’s reinforcing plate is anchored will safely support the combined load of all attached components or other equipment. -
Page 3: Dimensional Drawing
Installation Instructions MSP-WRTIDSKY1 Skybox Kit DIMENSIONAL DRAWING... - Page 4 Installation Instructions MSP-WRTIDSKY1 Skybox Kit ASSEMBLY PROCEDURES WARNING: Improper installation can cause serious per- sonal injury! Make sure that the structural members can support a redundant weight factor five times the total weight of the equipment you intend to support overhead.
- Page 5 Wood Joists wire. Use 14-gauge soft galvanized wire. A longer safety cable or Beams may also be required. Contact Chief Manufacturing for assis- tance in determining your specific requirements. Anchoring Methods Select the appropriate anchoring method for your ceiling: NOTE: Four eye lag screws and four concrete anchors are Figure 5.
- Page 6 Installation Instructions MSP-WRTIDSKY1 Skybox Kit FLAT PANEL DISPLAY AND H BOX INSTALLATION PROCUEDURES Flat Panel Display button-head cap screws WARNING: Improper installation can cause serious per- sonal injury! Make sure that the structural members can support a redundant weight factor five times the total weight of the equipment you intend to support overhead.
- Page 7 Installation Instructions MSP-WRTIDSKY1 Skybox Kit PARTS Ref Description ......BRACKET, Span, Skybox ... . .
