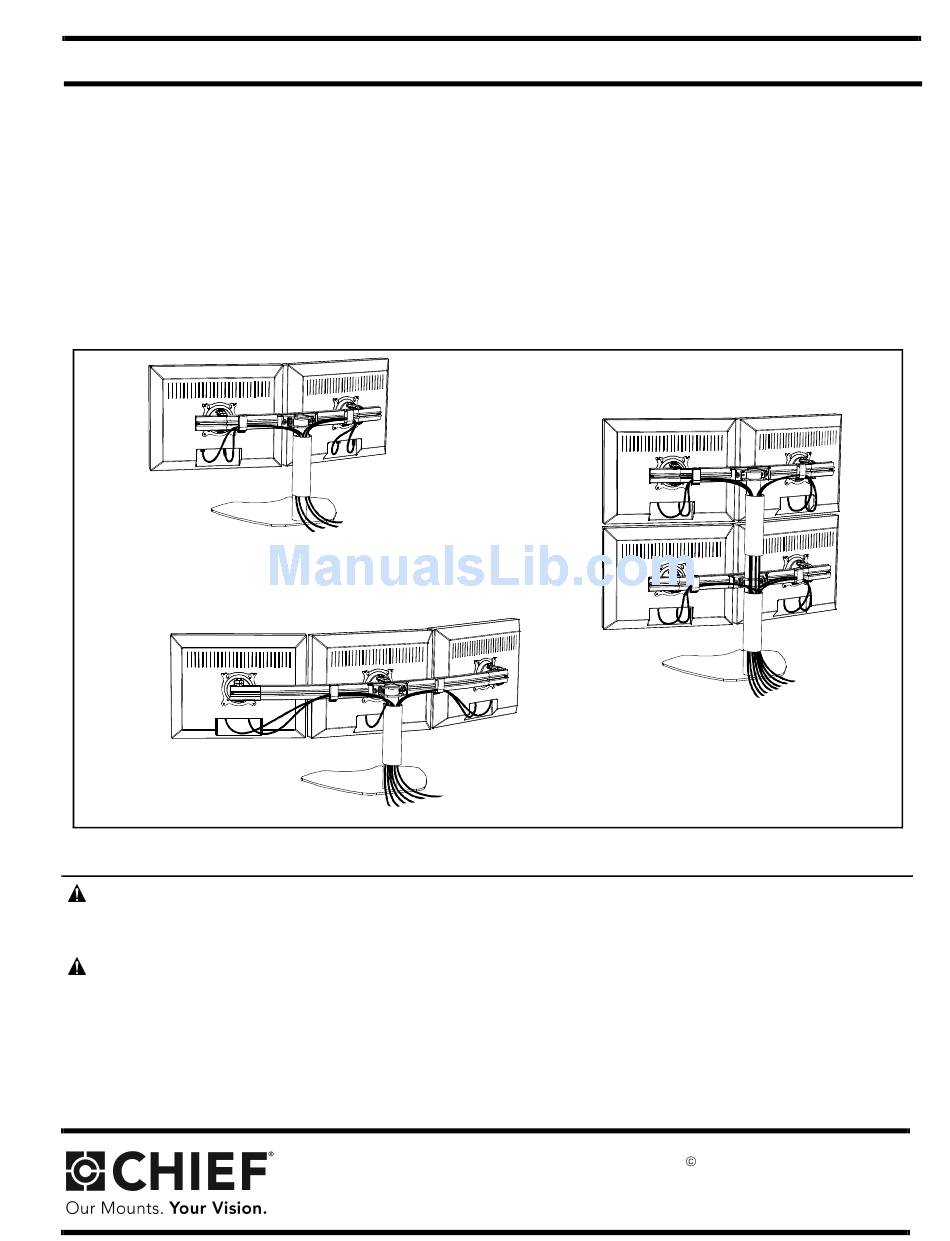

I N S T A L L A T I O N I N S T R U C T I O N S
Horizontal And Vertical Table Stands
and Accessories
Model: MSP-DCCFTP-Series

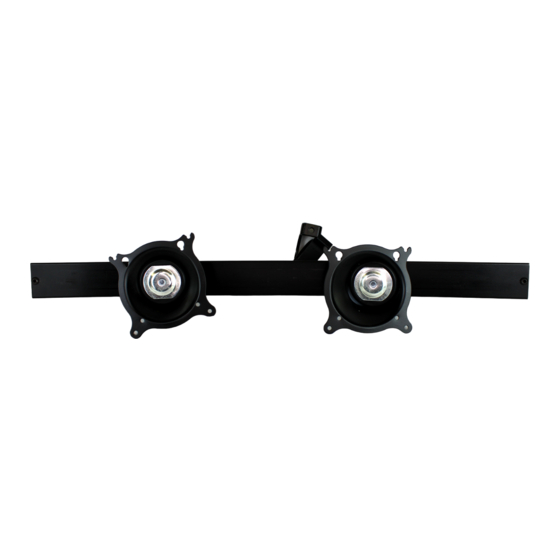

The DCCFTP-Series is a free standing, pole mount solution for multiple displays.
BEFORE YOU BEGIN
CAUTION!
To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that will be
attached to it, thoroughly study all instructions and illustrations before you begin the installation.
CAUTION!
Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's
responsibility to make sure the combined weight of all components does not exceed;
•
40 lbs (18.5kg) DCCFTP220/DCCFTP320
•
80 lbs (36kg) DCCFTP440
If you have any questions about this installation, contact Chief Manufacturing.
DCCFTP-220
DCCFTP-221B
DCCFTP-320
Chief Manufacturing, a products division
of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
•
50 lbs (22.68 kg) DCCFTP221
•
100 lbs (45.36 kg) DCCFTP441
2009 Milestone AV Technologies,
DCCFTP-440
DCCFTP-441B
8832-000163 RevE
a Duchossois Group Company
www.chiefmfg.com
06/09
Advertisement
Table of Contents
Related Manuals for CHIEF MSP-DCCFTP-Series
Summary of Contents for CHIEF MSP-DCCFTP-Series
- Page 1 50 lbs (22.68 kg) DCCFTP221 • 80 lbs (36kg) DCCFTP440 • 100 lbs (45.36 kg) DCCFTP441 If you have any questions about this installation, contact Chief Manufacturing. 8832-000163 RevE Chief Manufacturing, a products division 2009 Milestone AV Technologies, of Milestone AV Technologies...
-
Page 2: Tools Required For Installation
Model: MSP-DCCFTP-Series Installation Instructions TOOLS REQUIRED FOR INSTALLATION • Phillips Head Screw Driver • 3/4" Wrench • 5/32" Hex Key (provided) • 7/32" Hex Key (provided) PARTS Carefully inspect components for shipping damage . If damage is apparent, call your carrier claims agent and do not continue with installation until the carrier has reviewed the damage.(see Figure 1) - Page 3 Installation Instructions Model: MSP-DCCFTP-Series (80) (180) (140) (100) (10) (160) (170) (110) (20) (120) (30) (130) (150) (200) (60) (70) (190) (40) (50) Figure 1: Parts ASSEMBLY AND INSTALLATION Mount Assembly To assemble mount: (140) 1. Assemble pole (40, 50, 190) to base (30) using one 3/8-16 x 1"...
- Page 4 Model: MSP-DCCFTP-Series Installation Instructions 2. Assemble pole clamp back (150) to pole mount front 3. Install bottom two M4 x 10mm Phillips pan head using two FW (160) and two BHCS (170) using a screws (110) through Centris head mounting holes 5/32"...
- Page 5 Installation Instructions Model: MSP-DCCFTP-Series 4. Place four nylon spacers (130) over four mounting holes in display back (see Figure 10). Display Centris Head 5. Align Centris head mounting holes with four nylon spacers (130) (see Figure 10). 6. Secure Centris head to display using four...
- Page 6 Model: MSP-DCCFTP-Series Installation Instructions Display Pitch and Roll Adjustment Centris Head To adjust display pitch or roll position: 1. Loosen Centris bracket front adjustment knob. (10, 20, 180) (see Figure 14) 2. Tilt display up or down, or adjust display roll left or right until properly positioned.
- Page 7 Installation Instructions Model: MSP-DCCFTP-Series...
- Page 8 Model: MSP-DCCFTP-Series Installation Instructions...
