CHIEF MSP-SPCM Installation Instructions Manual

Plasma ceiling mount

Advertisement

Quick Links

I N S T A L L A T I O N

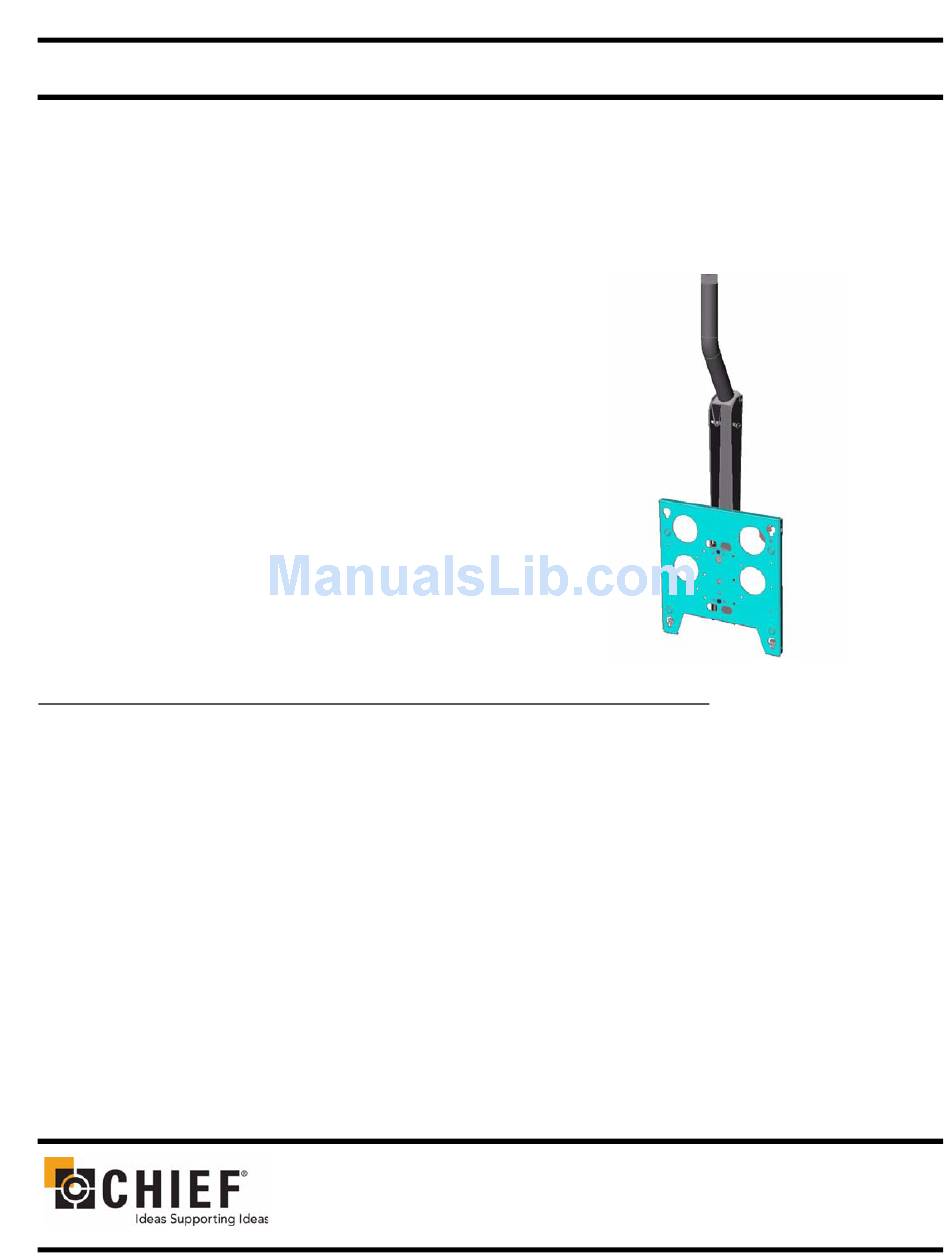

Plasma Ceiling Mount
Model MSP-SPCM (PCM Series)
The MSP-SPCM, with Q-latch design, is a quick ceiling instal-
lation process that easily attaches to 1 1/2" NPT coupling. A
low profile design compliments the sleekness of you plasma
while providing versatile sturdy support for your plasma.
With the mount securely in place, simply install PSB-2095
(bracket designed specifically for your display) on your dis-
play, use the easy to hang Q-latches to mount your display, and
engage the locking device to prevent removal of the display.
Height adjustment (5") and roll adjustment (4º right and left)
simplify screen positioning, Optimum viewing is easily
achieved using the tilt adjustment (15º down and 5º up).
The display can be installed using either the horizontal
(landscape) or vertical (portrait) mounting format.

BEFORE YOU BEGIN

• CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, and to the equipment
that will be attached to it, thoroughly study all instructions and illustrations before you begin the installation.
Pay particular attention to the "Important Warnings and Cautions" on Page 2.
• The maximum weight to be installed on the wall mount is 175 pounds (79.38 kg).
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
PART NO. 8832-000098 (Rev. A)
©2005 Chief Manufacturing
www.chiefmfg.com
08/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP-SPCM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF MSP-SPCM

  • Page 1: Before You Begin

    Pay particular attention to the “Important Warnings and Cautions” on Page 2. • The maximum weight to be installed on the wall mount is 175 pounds (79.38 kg). • If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480. CHIEF MANUFACTURING INC.
  • Page 2: Important Warnings And Cautions

    Installation Instructions MSP-SPCM IMPORTANT WARNINGS AND CAUTIONS! WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre- sponding instructions.
  • Page 3: Table Of Contents

    Installation Instructions MSP-SPCM CONTENTS TOOLS REQUIRED FOR INSTALLATION IMPORTANT WARNINGS AND CAUTIONS ....• Pipe wrench DIMENSIONAL DRAWING ..........TOOLS REQUIRED FOR INSTALLATION ..... • 5/16” Allen Wrench PARTS LIST ................ • 1/2” wrench PARTS.................. • Other tools may be required depending on the method of installing the unit in the ceiling.
  • Page 4: Parts

    Installation Instructions MSP-SPCM PARTS ASSEMBLY PROCEDURE 1. Remove two adjustment screws that are not securing the tube and open the body assembly by raising the tube, piv- Remove and Tilt Adj. Screw oting it on the tilt adjustment screws (see Figure 1).
  • Page 5: Install Psb-2095

    Installation Instructions MSP-SPCM INSTALL PSB-2095 DESCRIPTION The PSB-2095 parts list is shown in the table on this page. Plasma Bracket Using a 10-24 button head cap screw inserted from the backside of the bracket (see Figure 3), secure the mount-...
  • Page 6 Installation Instructions MSP-SPCM INSTALL PSB-2095 (CONT’D) Place nylon spacers over the mounting holes on the back of the screen (see Figure 5). Attach mounting bracket to the display (see Figure 6), as follows: For 32” screens, use the M5 screws.
  • Page 7: Mounting Procedures

    Installation Instructions MSP-SPCM MOUNTING PROCEDURES Q-latch Thread the mount onto the 1 1/2”NPT pipe extension/cou- pling you have provided. PSB-2095 Read and follow the hanging bracket instructions (PSB-2095) for your application (display model). Make sure the mount is level (see “ADJUSTMENTS” on...
  • Page 8: Adjustments

    Installation Instructions MSP-SPCM ADJUSTMENTS Height Loosen four 5/16-18 button head cap screws (see Figure 9). Adjust the height to the desired position. Tighten the four 5/16-18 button head cap screws. Height Roll Adjustment Screws Loosen the two 3/8-16 Nylock nuts (see Figure 10).
