Models: MSP-TDKCG110 & MSP-TDKCY220

TOOLS REQUIRED FOR INSTALLATION

• Phillips Screwdriver, #1
• 3/32" Hex Key (included)
• 2.5mm Hex Key (included)
• 5/32" Hex Key (included)
• 3/16" Hex Key (included)
NOTE: Other tools may be required depending on your
method of installation.
PARTS
After unpacking carton, inspect and verify contents
(See Table 1)(See Figure 1). If any listed parts are
missing or damaged, contact Chief Customer Service at
1-800-582-6480.
Table 1: Parts
Item Description
10 MOUNT, Desk (MSP-TDKCG110 only)
20 MOUNT, Desk (MSP-TDKCY220 only)
30 ARM ASSEMBLY, Mount
(MSP-TDKCY220 only)
40 BUMPER, Adhesive
50 BRACKET, Grommet
60 SCREW, Button Head Cap, 5/16"-18 x 4"
70 WASHER, 5/16", UHMW (plastic)
(MSP-TDKCY220 only)
80 WASHER, 5/16", Stainless Steel
(MSP-TDKCY220 only)
90 PIN (MSP-TDKCY220 only)
100 SPACER, UHMW (plastic)
(MSP-TDKCY220 only)
110 WASHER, Lock, External Tooth, 5/8"
(MSP-TDKCY220 only)
120 NUT, Nylok, 5/16"-18 (MSP-TDKCY220 only)
130 SCREW, Phillips Pan Machine, M4 x 10mm
140 SCREW, Phillips Pan Machine, M4 x 20mm
150 SPACER, Nylon, 10mm long
160 SCREW, Phillips Flat Machine, 8-32 x 3/8"
(for Static Arm)
170 COVER, Cable Management, Static Arm
180 HEX KEY, 3/32"
190 HEX KEY, 2.5mm
200 HEX KEY, 5/32"
210 HEX KEY, 3/16"
NOTE: MSP-TDKCG110 Qty: 1; MSP-TDKCY220 Qty: 3
4
10
20
30
Qty
1
40
1
2
50
6
1
See
Note
Below
60
2
4
2
70
2
80
4
2
4 per
90
head
4 per
head
4 per
head
2 per
arm
1 per
arm
1
1
1
1
Installation Instructions
100
110
120
130
140
150
160
170
180
190
200
210

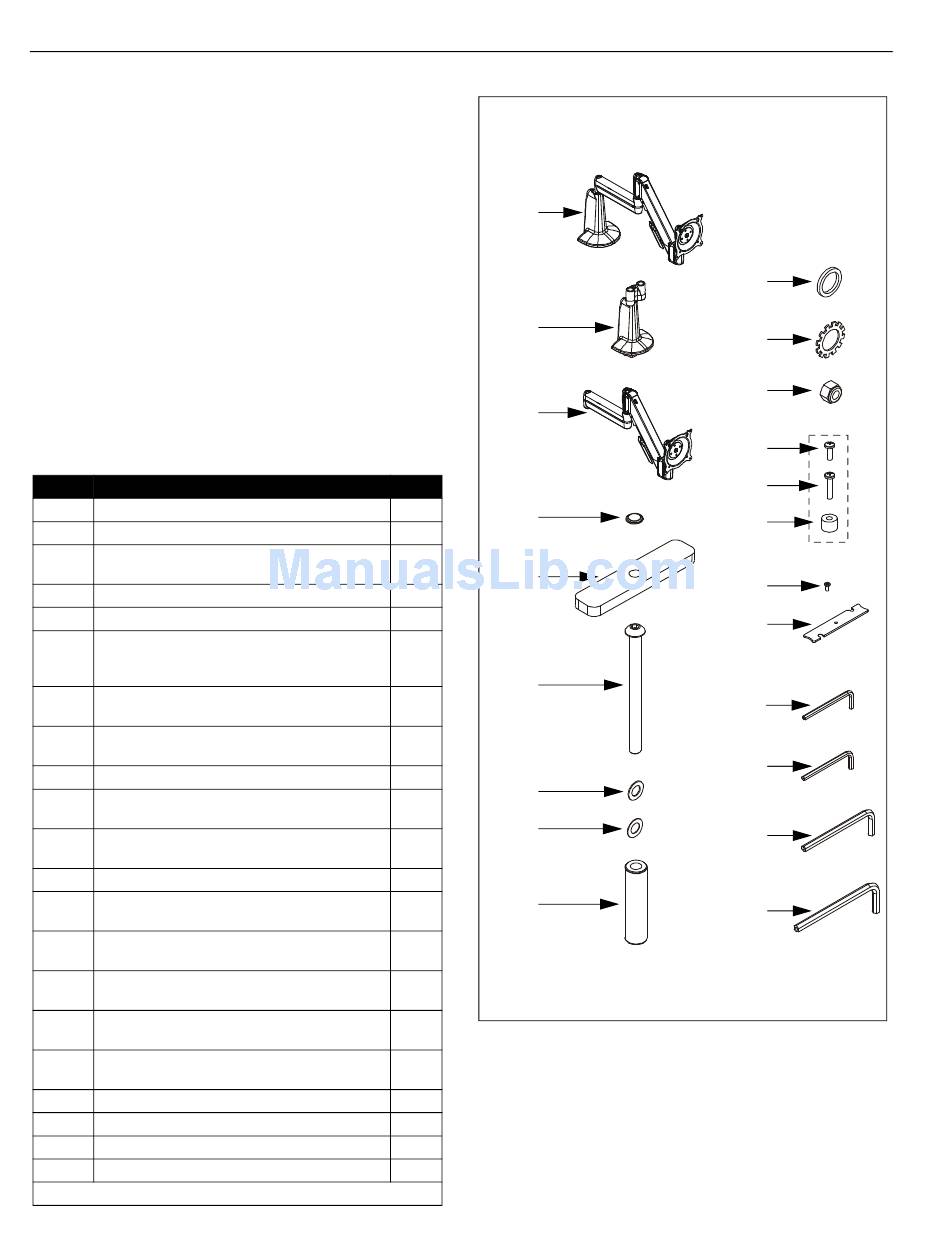

Figure 1: Parts
