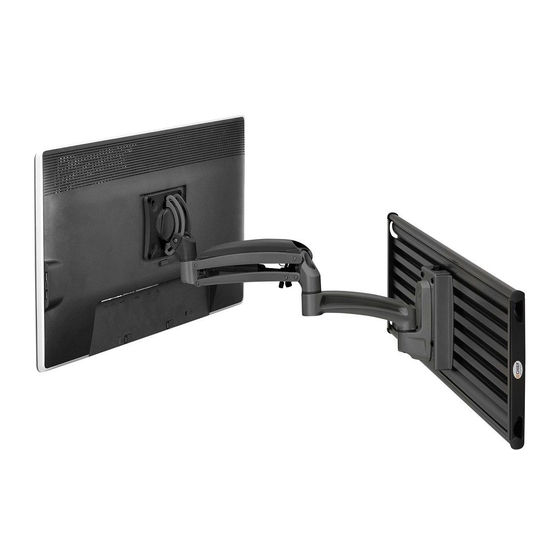

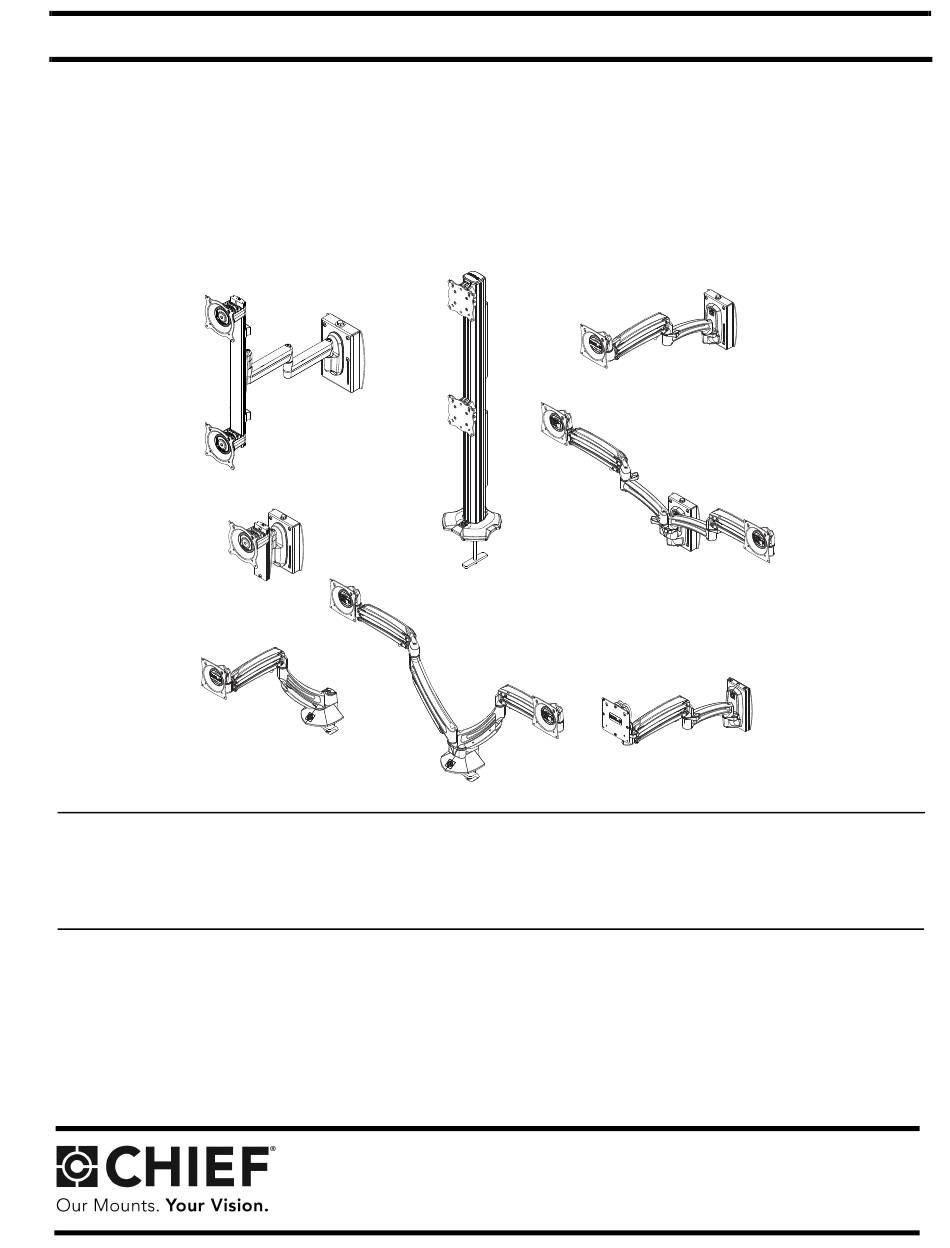

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S WL9D WL2B WL10D WL6B WL3B WL11D WL13D WL12D Wall and Pole Mounted, Static and Swing Arm Mounts MSP-WLB/D SERIES...
-
Page 2: Important Safety Instructions
25 LBS 11.34 kg ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may WARNING: Use this mounting system only for its intended have a component attached or setting on it. use as described in these instructions. Do not use attachments not recommended by the manufacturer. -
Page 3: Installation Instructions
Installation Instructions MSP-WLB/D SERIES LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar... -
Page 4: Tools Required For Installation
MSP-WLB/D SERIES Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2” for grommet mounting only 5/16” (included w/WL6 only) 5/32” (included w/all except WL9/10/11/12) 1/2” 3/16” (included) 7/16” 1/8” (included w/all except WL6) PARTS (NOTE: See Table 1 for quantities) [Centris head] [Desk mount arm - WL11C shown] [Centris bracket] [Wall mount arm - WL9C shown]... - Page 5 Installation Instructions MSP-WLB/D SERIES PARTS (CONTINUED) Table 1: Parts ITEM DESCRIPTION WL2B WL3B WL6B WL9D WL10D WL11D WL12D WL13D Dual Head Column Grommet Screw and Base Centris Head Centris Bracket Desk Mount Arm (WL11D-single, WL12D-dual) Wall Mount Arm (WL9D, WL13D-single, WL10D-dual) Grommet Plate Cable Cover Screw, Button Head Cap, 1/4-20 x 1/2”...
-
Page 6: Installation
MSP-WLB/D SERIES Installation Instructions INSTALLATION WARNING: FAILURE TO PROVIDE ADEQUATE STRUCTURAL STRENGTH FOR THIS COMPONENT CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. - Page 7 Installation Instructions MSP-WLB/D SERIES IMPORTANT ! : Tighten set screw using 5/32” hex key (EE). (See Figure 6) If the display being installed has a recessed mounting surface, the display must be assembled to the mount prior to mount installation. See Display Installation in this CAUTION: IMPROPER INSTALLATION CAN LEAD TO document before proceeding.
- Page 8 MSP-WLB/D SERIES Installation Instructions Slide one Centris head (C) over array (D or Y). (See Figure Install 1/4-20” square nut (K) into the top of the back groove of vertical array (D or Y) and line up with top hole on plate. (See Figure 10) NOTE: If installing a MSP-WL2A, slide two Centris heads (C)
- Page 9 Installation Instructions MSP-WLB/D SERIES Apply bumpers (Q) to underside of grommet plate (G). (See Carefully manipulate base cover (N) to create an opening Figure 12) large enough to wrap cover around array column. (See Figure 14) Wrap base cover around column and slide it down until base cover fits securely onto grommet plate (G).
-
Page 10: Standard Installation
MSP-WLB/D SERIES Installation Instructions WL11D and WL12D Grommet Hole Option Standard Installation NOTE: MSP-WLB11C and MSP-WLB12C mounts may be installed directly to grommet holes between 1 1/4” and Loosen clamp screw until enough space is created between 2 1/2” in diameter. If grommet hardware (R-T) is used, clamp and mount to allow for desk mounting. - Page 11 Installation Instructions MSP-WLB/D SERIES Using Grommet Hardware DISPLAY INSTALLATION Remove desk clamp from mount by loosening button head WL2B and WL3B cap screw until clamp is completely disengaged from the bolt. (See Figure 20) The mounting holes on the back of your display will either be flush with the back surface, or recessed into the back surface.
- Page 12 MSP-WLB/D SERIES Installation Instructions RECESSED MOUNTING HOLES WL6B Carefully place display face down on protective surface. Faceplate Positioning Determine depth of recessed mounting holes relative to IMPORTANT ! : Faceplates should be positioned prior to back surface of display (against which Centris head will attaching displays as the height cannot be adjusted with contact).
- Page 13 Installation Instructions MSP-WLB/D SERIES Flush Mounting Holes Recessed Mounting Holes Position faceplate in desired mounting position. Adjust as NOTE: If faceplate does not fit into recessed area of display, required before proceeding. See Height Adjustment Section proceed with the steps in this section. for details.
-
Page 14: Display Installation
MSP-WLB/D SERIES Installation Instructions Slide two remaining selected spacers (U4 or U5) in between Using Phillips screwdriver, install two remaining M4x14mm faceplate and display, positioning them over the lower two Phillips screws (L1) through the lower mounting holes in mounting holes. (See Figure 28) faceplate into the display. - Page 15 Installation Instructions MSP-WLB/D SERIES WL13D (for recessed mounting holes) Display Installation Remove quick release faceplate from mount by pulling quick release lever and sliding faceplate off mount. (See Figure 31) quick release faceplate (C) x 4 (D) x 4 quick release lever Figure 31 Carefully place display face down on protective surface.
-
Page 16: Cable Management
MSP-WLB/D SERIES Installation Instructions Cable Management Route cables through cable management clips on array rail and down towards swing arm. (See Figure 35) WL2B Place two cable management covers (X) upward into swing arms and secure to swing arms using wire ties (Z) and two Option A #8-32 x 3/8”... - Page 17 Installation Instructions MSP-WLB/D SERIES WL9D, WL10D, WL11D, WL12D and WL13D Adjustments Press insides of cable management covers at both ends to WL2B and 3B unhinge tabs on either end of cable management cover on upper arm. (See Figure 39) Display Adjustment Lift cable management cover up until tabs are unhinged and Vertical position: cover is in the “open”...
- Page 18 MSP-WLB/D SERIES Installation Instructions WL6B Roll Loosen screws holding display to faceplate slightly. Height Adjustment Adjust roll position as the mounting holes on faceplate NOTE: Height adjustment should be set prior to installing allow. display. Due to the location of the height adjustment Tighten screws to lock roll position.
-
Page 19: Display Removal
Installation Instructions MSP-WLB/D SERIES Pitch Adjustment (WL13D only) Display Removal Adjust pitch to desired tilt position. (See Figure 47) WARNING: Only remove display from mount when the Adjust pitch tension screw to change the adjustment tension. (See Figure 47) display can be lifted up from the mount! DO NOT remove display unless the display is in the upright position! (See Pivot Adjustment (WL13D only) Figure 49) - Page 20 MSP-WLB/D SERIES Installation Instructions Pivot Adjustment Range Single Arm Models Adjust arm angle as desired up to 90 degrees in either direction. (See Figure 51) WARNING: Swinging the arm beyond 90 degrees may result in the mount slipping off the desk causing serious injury! pivot point of the arm (top view)
- Page 21 Installation Instructions MSP-WLB/D SERIES...
- Page 22 MSP-WLB/D SERIES Installation Instructions...
- Page 23 Installation Instructions MSP-WLB/D SERIES...
- Page 24 A 6436 City West Parkway, Eden Prairie, MN 55344 P 800.582.6480 / 952.225.6000 F 877.894.6918 / 952.894.6918 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands Chief, a products division of P +31 (0) 495 580 852 Milestone AV Technologies F +31 (0) 495 580 845 Asia Pacific A Office No.
