Installation Instructions

MOUNT INSTALLATION

Two installation options exist:
• Edge Installation
• Grommet (Hole) Installation; requires 3/8" to 3"
diameter hole and access to the bottom of the
desk
ASSEMBLY
1. Determine approximate location for mount keeping in
mind display size, arm extension, height adjustment
(if applicable), and pitch/roll requirements.
2. Peel backing from adhesive bumpers (40) and attach
to bottom of mount (10 or 20, as applicable) (See
Figure 2).
NOTE: One extra bumper (40) included for convenience.

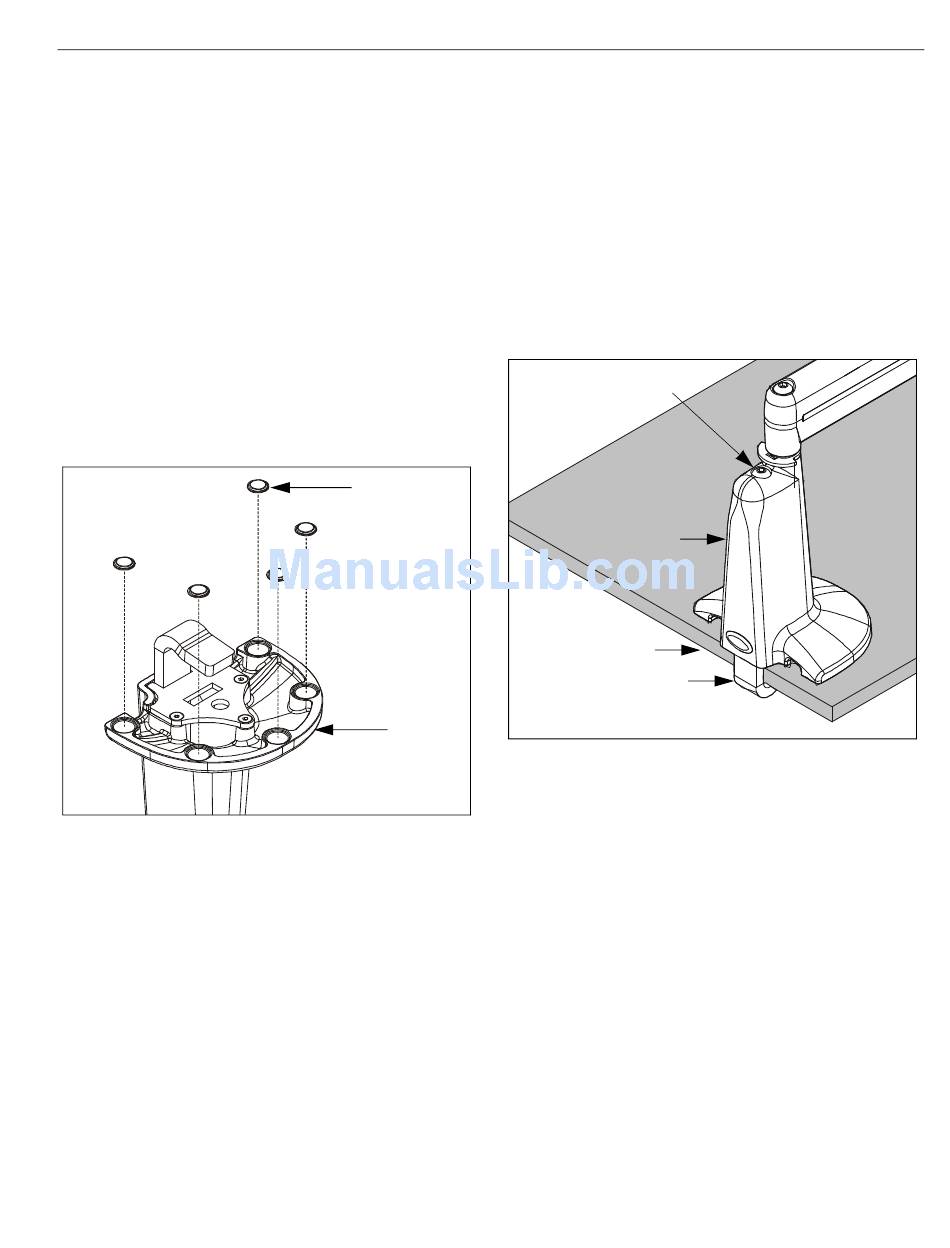

Figure 2: Install Bumpers
3. Proceed to Edge Installation, or Grommet (Hole)
Installation, as desired.
EDGE INSTALLATION
IMPORTANT ! : IF your display has a recessed mounting
hole cavity, and the Centris bracket will not fit into that
cavity (See Figure 11), THEN proceed to "DISPLAY
INSTALLATION" (See Page 9) before continuing with the
Edge Installation procedure. Otherwise, continue below.
1. Slip mount (10 or 20, as applicable) over edge of desk
so that clamp fully contacts desk edge. Using hex key
(210), securely tighten clamp adjustment screw (See
Figure 3).
NOTE: Bracket (50) and one screw (60) not used in this
Clamp Adjustment
Screw
40
(5 places)
10 or 20
2. Proceed to:
•
•
•
Models: MSP-TDKCG110 & MSP-TDKCY220
installation.
10 shown;
20 similar
Edge of Desk
Clamp
Figure 3: Edge Installation
"CABLE MANAGEMENT" if you have an MSP-
TDKCG110 mount and your display was
previously installed, or to
"DISPLAY INSTALLATION" if you have an MSP-
TDKCG110 mount and your display was not
previously installed, or to
"MULTI-DUAL ARM ASSEMBLY" if you have an
MSP-TDKCY220 mount.
5
