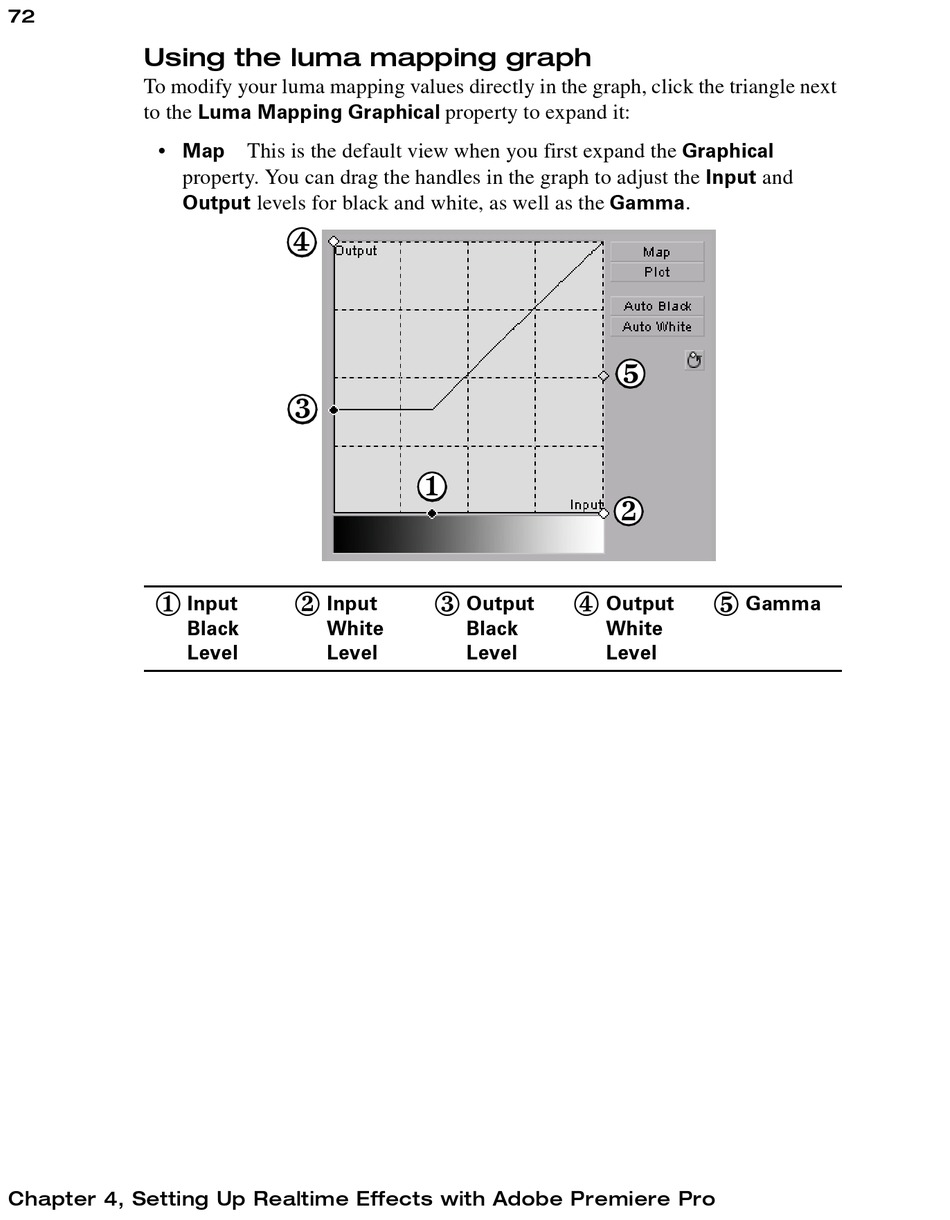

Using the luma mapping graph

To modify your luma mapping values directly in the graph, click the triangle next
to the Luma Mapping Graphical property to expand it:
• Map
property. You can drag the handles in the graph to adjust the Input and
Output
0
Chapter 4, Setting Up Realtime Effects with Adobe Premiere Pro
This is the default view when you first expand the Graphical
levels for black and white, as well as the Gamma .
3
2
1
Input Input
Black White
Level Level
0
2 3
Output
Black
Level
4
1
4
Output Gamma
White
Level
